Industrial leader Single color dose mixer plastic dosing device
| US$1,660.00-1,980.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
SCM36-14-2
Structure
Horizontal
Warranty
1 Year
Export Markets
Globle
Customized
Customized
Output (Kg/hr)
0.5-5
Motor Power (W)
50
Moter Speed (RPM)
0-3000
Material Barrel (L)
10
Reduction Ratio
30:1
Screw Diameter (mm)
14
External Dimension LxWxH (mm)
520x590x355
Weight (kg)
16
Transport Package
Standard Export Packaging
Specification
Variable
Trademark
MFGSP
Origin
China
HS Code
842839900
Production Capacity
1000sets/Year
Packaging & Delivery
Package Size
65.00cm * 65.00cm * 45.00cm
Package Gross Weight
20.000kg
Product Description

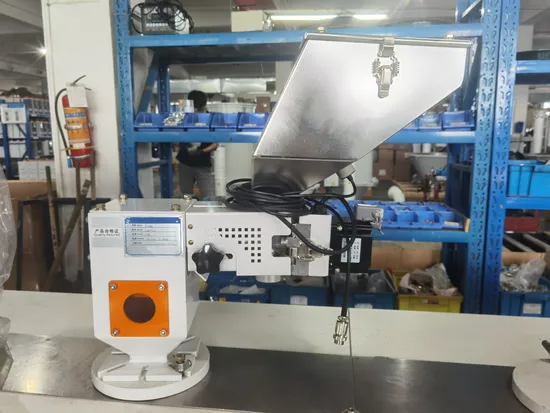

Single Color Dose Mixer
Performance characteristic
SWH series is applicable to the situtation that some kinds of material need accurate weighting and mixing by •With the function of permanent memory and storage.
•Use of brushless DC-motor,no need for maintenance.
•Use of micro-computer control,intelligentize to calculate accurately.
•Can satisfy the requirement of external signal input at the same time.
•The screw is handled with chrome to be durable.
•The modular structure is easy to assemble&disassemble,clean and exchange.
•Single color dose mixer's standard base equips hopper magnets to attract metal to protect the destorying of screw in injection machines.
•The stirrer is optinal for single color dose mixer,and should matched with stirrer controller to mix the material even
| Specifications: | ||||||||
| Model | Output (Kg/hr) | Motor Power (W) | Moter Speed (RPM) | Material Barrel (L) | Reduction Ratio | Screw Diameter (mm) | External Dimension LxWxH (mm) | Weight (kg) |
| SCM60-12 | 0.3-3 | 50 | 0-3000 | 10 | 30:1 | 12 | 520x590x355 | 16 |
| SCM36-14 | 0.5-5 | 50 | 0-3000 | 10 | 30:1 | 14 | 520x590x355 | 16 |
| SCM36-16 | 0.8-10 | 50 | 0-3000 | 10 | 30:1 | 16 | 520x590x355 | 16 |
