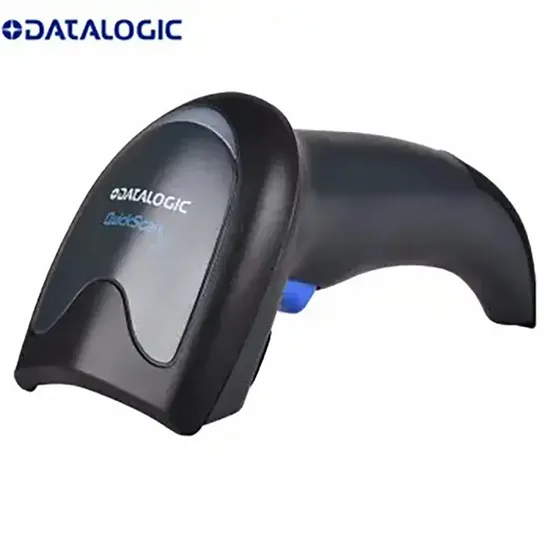

Datalogic QuickScan QW2400 2D area imager Handheld Barcode Scanner barcode reader

Product Description

Product Description
AREA IMAGING TECHNOLOGY
The QuickScan Lite QW2400 2D area imager is an entry level scanner specifically designed for reading long and truncated 1D codes and larger 2D codes from close distance. The QW2400 imager has an extra-wide Field of View (FOV)which captures these challenging 1D and 2D codes at a nominal distance using different scan angles, meeting the scanning needs in Retail, Light Manufacturing, Document/Bill Processing and Banking/Finance. The QuickScan Lite 2D imager is the most affordable area imager with the best performance in its class.
DESIGNED WITH THE USER IN MIND
The QW2400 imager is small, lightweight and its ergonomic design is comfortable to use in daily operations. It offers snappy reading performance on most commonly used 1D and 2D codes, whether printed or displayed on a mobile device. The white illumination combined with the blue aiming dot provides users with a visible and clear aiming system without irritating the user's eyes. Datalogic's patented 'Green Spot' technology provides good-read feedback in noisy environments and the internal beeper can be silenced for quiet environments.
SIMPLICITY IS THE BEST
The QW2400 area imager is available in two interface options: USB or Keyboard Wedge/RS-232. Customers can purchase the scanner only or separate certified kits which include a cable and stand. All accessories can be shared with the QW2100 linear imager, making it easier for customers to upgrade from 1D to 2D readers.
FEATURES
• Wide scan angle and Field of View (FOV)
• Blue aiming dot on white illumination
• Datalogic's patented 'Green Spot' technology for good-read feedback
• Two interface options: USB or Keyboard Wedge/RS-232
• Excellent performance in reading bar codes displayed on mobile devices
• Built with over-molded rubber to protect the imager when dropped
• Compact and multi-position stand
• Water and Particulate Sealing Rating: IP42
• Drop resistance to 1.5 m / 5.0 ft
• Uses the same cables and power supplies as the current QuickScan products
• USB certified kits available
• Remote Host Download lowers service costs and improves operations and is available for all models
• EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI Detailed Photos
Product Parameters

DECODING CAPABILITY
1D/Linear Codes	Autodiscriminates all standard 1D codes including GS1 DataBarTM linear codes.
2D Codes	Aztec Code;AztecMesas;Data Matrix;MaxiCode;QR Code,Micro QR Code:China Han Xin Code
Postal Codes	Australian Post;British Post;Canadian Post;ChinaPost Japanese Post;IMB;KIX Post;Planet Code;Postnet Royal Mail Code(RM4SCC)
Stacked Codes	EAN/JANComposites;GS1 DataBar Composites;GS1 DataBar Expanded Stacked;GSI DataBar Stacked; GS1 DataBar Stacked Omnidirectional;MacroPDF; MicroPDF417;PDF417:UPCA/E Composites
ELECTRICAL
Current	Operating(Typical):170 mA@5VDC Standby/ldle(Typical):90 mA@5VDC
lnput Voltage	5VDC+/-10%
ENVIRONMENTAL
Ambient Light	Up to 92,000 lux
Drop Resistance	Withstands repeated dropsfrom 1.5m/5.0ft onto a concretesurface
ESD Protection (Air Discharge)	16kV
Humidity (Non-Condensing)	0-95%
Particulate and Water Sealing	IP42
Temperature	Operating:0 to 50ºC/32 to 122°F Storage/Transport:-20 to 70ºC/-4 to 158F
INTERFACES
Interfaces	QW2470-BK:RS-232/KeyboardWedge QW2420-BK:USB
PHYSICAL CHARACTERISTICS
Colors Available	Black
Dimensions	7.1x17.1x6.6cm/2.8x6.7x2.6 in
Weight	120 g/4.20Z
READING PERFORMANCE
mageSensor	Field of View:48x37°(HxV) Wide VGA:640x480 pixels
LightSource	Aiming:1 Blue LED; llumination:White LED 350-770 nm
Motion Tolerance	20 IPS
Print ContrastRatio (Minimum)	20%
Reading Angle	Pitch:+/-65°;Roll(Tilt):+/-360°;Skew (Yaw):+/-65°
Reading /ndicators	Beeper(Adjustable Tone and Volume);Datalogic 'Green Spot Good Read Feedback;Good Read LED
Resolution(Maximum)	Code 39:4mils:0.102 mm PDF417:6.6mils:0.168 mm QR/Data Matrix:7.5 mils:0.191 mm
READING RANGES
Typical Depthof Field	Minimum distance determined by symbollength and scan angle. Printing resolution,contrast,and ambient light dependent. Code 39:5 mils:0.5 to 12.5cm/0.2 to 4.9 in EAN/UPCA:13 mils:0.5 to 30.0 cm/0.2 to 11.8 in PDF417:6.6 mils:1.0 to 9.5 cm/0.4to 3.7 in Data Matrix:10 mils:1.0 to 9.5 cm/0.4 to 3.7 in QR:20 mils:1.0 to 14 cm/0.4to 5.5in
SAFETY&REGULATORY
AgencyApprovals	The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a list of certifications.
Environmental Compliance	Complies to China RoHS;Complies to EU RoHS
UTILITIES
DatalogicAladdinTM	Datalogic Aladdin configuration program is available for download at no charge
OPOS/JavaPOS	OPOS and JavaPOS utilities are available for download at no charge.
Remote Host Download	Lowers service costs and improves operations (-RM models only)
WARRANTY
Waranty	3-Year Factory Warranty
