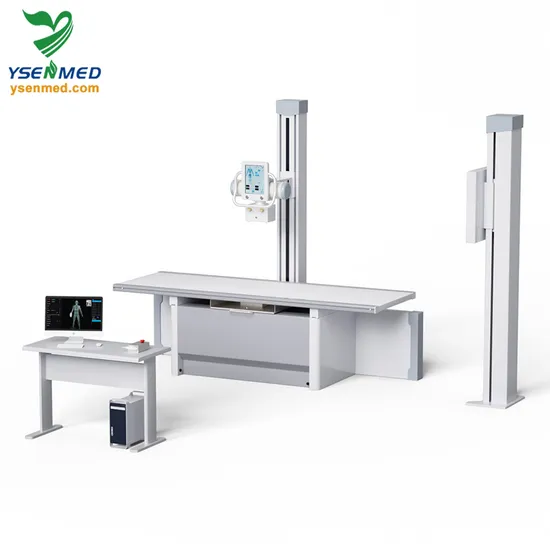

Ysenmed Medical Equipment Ysx500d 50kw 630mA Digital Radiography System Digital X Ray Machine
| US$15,799.00-19,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YSX500D
Material
Metal
Certification
ISO13485
Power Type
Electric
Group
Adult
Output Power
50kw
Power Voltage
220V±22V
Kv Range
40~125kv
Ma Range
10~630mA
Mas Range
0.4 ~1000mas
Exposure Time
0.001~10s Adjustable: Stepping by 1ms
Transport Package
Plywood Case
Trademark
Ysenmed
Origin
China
Production Capacity
1000 PCS/Year
Product Description
YSENMED Medical Equipment YSX500D 50kW 630mA Medical Digital Radiography System| Models Parameters | YSX200D | YSX320D | YSX500D | YSX650D |
| Max. kW | 20kW | 32kW | 50kW | 65kW |
| Power | 50Hz/60Hz, wire diameter>4mm2, internal resistance<0.5Ω, 20/32/50kW can work with either 220V or 380V, 65kW only works with 380V. | |||
| mA | 10~250 | 10~400 | 10~630 | 10~800 |
| mAS | 0.1~200 | 0.1~320 | 0.4~1000 | 0.4~1000 |
| KV | 40~125kV, stepping by 1kV | 40~150kV stepping by 1kV | ||
| Exposure Time | 0.001~10s adjustable: stepping by 1ms | |||
| Focus | Dual focus: 1.0*1.0mm/2.0*2.0mm | Dual focus: 0.6*0.6mm/1.2*1.2mm | ||
| Rotating Speed & Heat Capacity | 2800prm/1300kHU | 2800prm/1300kHU | ||
| Inverter Frequency | 50kHZ~220kHZ | |||
| Tube Movement | Up & down lift, left & right rotation | |||
| Column | Left & right movable | |||
| Radiography Table | Four-way floating | |||
Flat Panel Detector
| Flat Panel Detector | Amorphous silicon cesium iodide |
| Detector Size | 17*17 inch |
| Pixel Resolution | 3072*3072 |
| Pixel Pitch | 139um |
| Imaging Time | <8s |
| A/D Conversion | 16bits |
| Spatial Resolution | 3.6lp/mm |
| Size | 460*460*15mm |
| Interface | Wired (Wireless is optional) |
| Software | Professional medical software with multi-languages available |
| Workstation | Intel i5 CPU, 8G memory,2G card,128G SSD,PCI-E, R232;22.5 inch display. Other options are available upon request. |
