High Quality Hot DIP Galvanzied Eye Bolt
| US$0.50 | 1 Piece (MOQ) |
Basic Info.
Model NO.
EB
Connection
Common Bolt
Head Style
Round
Standard
DIN
Application
Pole Line Hardware
Finish
Hot Galvanizing
Color
Silver
Transport Package
Wooden Case
Trademark
POWTECH
Origin
China
HS Code
7316
Production Capacity
10000pieces/Month
Product Description

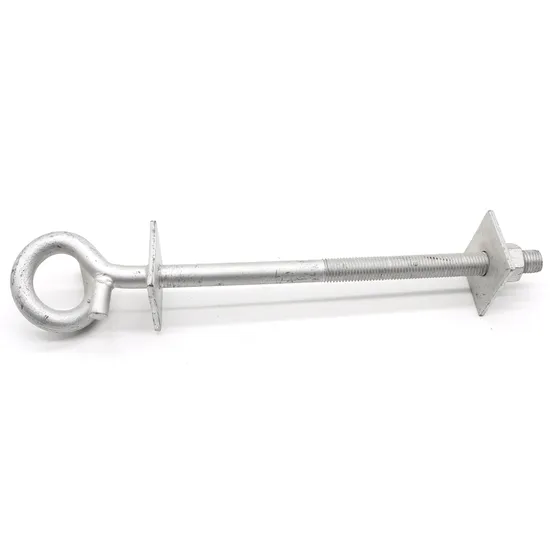

High quality hot dip galvanzied eye boltName: Forged Oval Eyebolt
Nombre: PERNO CON OJAL
Model:CD
Material: Carbon steel
Finish: Hot Dip Galvanized
Size: 5/8", 3/4"
Length: 4" to 12"
Features: Used for guying, dead-ending, and attaching clevis, suspension insulators and other poleline hardware, herrajes galvanizados. Each oval eye bolts is provided with a regular square nut. All components are hot dip galvanized to meet ASTM A153, Class C specification.
| CATALOG NUMBER | BOLT DIMENSION DIA. A B | MINIMUM TENSILE STRENGTH | APPROX. WEIGHT PER 100 |
| EB586S | 5/8'' 6'' 4'' | 12400 LBS. | 100 |
| EB588S | 5/8'' 8'' 4'' | 12400 LBS. | 118 |
| EB589S | 5/8'' 9'' 4'' | 12400 LBS. | 123 |
| EB5810S | 5/8'' 10'' 6'' | 12400 LBS. | 129 |
| EB5812S | 5/8'' 12'' 6'' | 12400 LBS. | 142 |
| EB5814S | 5/8'' 14'' 6'' | 12400 LBS. | 158 |
| EB5816S | 5/8'' 16'' 6'' | 12400 LBS. | 175 |
| EB5818S | 5/8'' 18'' 6'' | 12400 LBS. | 190 |
| EB5820S | 5/8'' 20'' 6'' | 12400 LBS. | 205 |
| EB5822S | 5/8'' 22'' 6'' | 12400 LBS. | 238 |
| EB5824S | 5/8'' 24'' 6'' | 12400 LBS. | 245 |
| EB5826S | 5/8'' 26'' 6'' | 12400 LBS. | 258 |
| EB5830S | 5/8'' 30'' 6'' | 18350 LBS. | 315 |
| EB5836S | 5/8'' 36'' 6'' | 18350 LBS. | 355 |
| EB348S | 3/4'' 8'' 4'' | 18350 LBS. | 190 |
| EB3410S | 3/4'' 10'' 6'' | 18350 LBS. | 215 |
| EB3412S | 3/4'' 12'' 6'' | 18350 LBS. | 225 |
| EB3414S | 3/4'' 14'' 6'' | 18350 LBS. | 255 |
| EB3416S | 3/4'' 16'' 6'' | 18350 LBS. | 275 |
| EB3418S | 3/4'' 18'' 6'' | 18350 LBS. | 298 |
| EB3420S | 3/4'' 20'' 6'' | 18350 LBS. | 330 |
