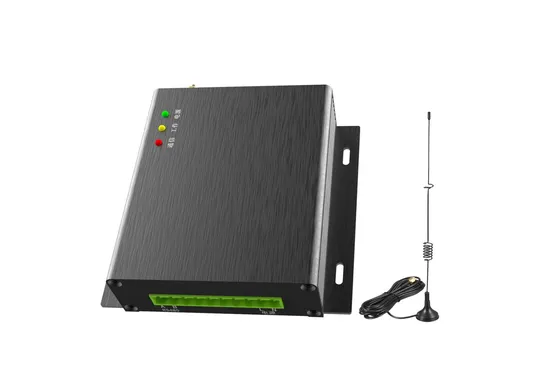

Collect Data Lora Wireless Communication Gateway

Product Description

Rail type dual phase meter 1.Product Introduction
Wireless gateway is a device that uses RS485 communication to connect PLC and PC terminals, with built-in ZigBee or LORA modules for forwarding data. Generally used in conjunction with LINK811S, LINK813S, ZSS and other products for data collection
2.Technical parameter

Performance point	Performance index
working power supply	Operating voltage range	AC 176~264V
	Power consumption	<2.5W,5VA
wireless communication interface	Interface form	ZIGBEE interface /LORA interface
	Address range	1~247
	protocol	Modbus-RTU
	communication method	Mesh networking
	Communication distance	Point-to-point communication has an open sight distance of 1000m.
	Mounted quantity	Can mount 35
environmental conditions	Working temperature	-20ºC~70ºC
	storage temperature	-40ºC~70ºC
	Working humidity	0 ~ 95% does not condense.
	atmospheric pressure	86kPa~106kPa
mechanical character	vibrate	GB/T 11287 severity level 1
	lash	GB/T 14537 severity level 1
	collide	GB/T 14537 severity level 1
Electromagnetic compatibility performance	Radio frequency electromagnetic field immunity test	GB/T 17626.3-2006 Severity Grade 3
	Electrical fast transient test	GB/T 17626.4-2008 Severity Grade 3
	Attenuated oscillation wave immunity test	Severity grade 3-12-1998
	Surge immunity	GB/T 17626.5-2008 Severity Grade 3
	Radio frequency conduction immunity	GB/T 17626.6-2008 Severity Grade 3
	radio disturbance	GB/T 17215.211-2006 7.5.8 Class B Equipment
	Interference degree of power frequency magnetic field	GB/T 17626.8-2006 Severity Grade 3
Electrical insulation performance	insulance	GBT 13729-2002, not less than 100MΩ.
	dielectric strength	GB/T 13729-2002, power frequency voltage 2kV, 1 minute.
	surging	GB/T 13729-2002,1.2/50μs,5kV

3.Product perforation and installation diagram
4.About our service :
* We could provide 7* 24-hour phone call after-sales service.
* We provide a 2-year guarantee time and will change the meter for you within 1 year if there's something wrong with the product. Except for natural disasters or man-made reasons.
* Recommend the most advanced application technology and management model in the industry to customers, and provide customers with detailed solutions.
5.Delivery Diagram
