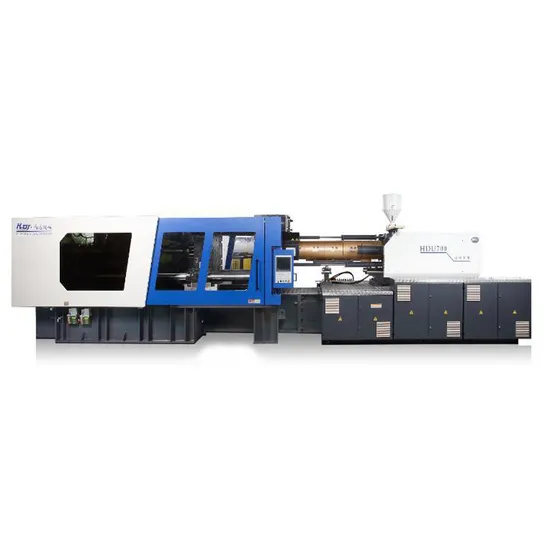

Haida HD700u High Performance Injection Molding Machine for Bucket Making

Product Description

Detailed Photos

The Haida bucket-making machine adopt high performance hyfraulic system, choose famous brand electro-hydraulic proportional valve, meet the manipulator to open mold stop position of the harsh requirements, the use of excellent experience.

FRAME
High rigidify frame, open outlet, reserve full automatic operation space and plan, adapt to high intensity production requirements.
STRUCTURE
Large mold opening stroke, high strength mold closing structure, suitable for the special needs of barrel mould.
CONTROL SYSTEM
Professional injection moulding machine control system, large brand high-performance electronic control componets.
SCREW
Screw special design, strong plasticizing ability, short molding cycle, long service life.
Product Parameters

ITEM		UNIT	DATA- HD700U
Injection Unit	Screw Diameter	mm	85
	Screw L/D Ratio	L/D	24.2
	Injection Volume	cm3	2638
	Shot Weight	g	1978
	Plasticizing capacity	g/s	85
	Injection Rate	g/s	480
	Injection Pressure	Mpa	200
Clamping Unit	Clamping Force	KN	7000
	Opening Stroke	mm	980
	Space Between Tie-Bars	mm	850x750
	Mould Thickness(Min-Max)	mm	600-950
	Hydraulic Ejection	KN	125
	Ejector Stroke	mm	240
General	Pump Pressure	Mpa	16
	Motor Power	KW	45x2
	Heater	KW	36
	Machine Dimension	m	10.5x2.5x2.6
	Machine Weight	T	30
	Mould Orientation Ring Diameter	mm	Φ160
	Nozzle Radius	mm	SR20

Application field
Packaging & Shipping
After Sales Service
Company Profile
Ningbo Haida Plastic Machinery Co.,ltd is a manufacture specilized in manufacturing HAIDA series automatic plastic injection molding machine, vice president of China Plastic Machine Industry Association.
Established in 1992, the company has been devoted to development, production and sales of efficient, personalized and cost-effective injection machine.
-One of TOP 10 enterprises in plastic injection machine industry of China, company area over 2,000,000 square meters; Over 500 employees;
-Passed ISO9001, ISO14001, OHSAS18001 and CE Certification;
-Stronge R & D capability. More than 100 types of injection machine from 50 tons to 3300 tons are in production.
-More than 60 sales and service agencies at home and abroad.
