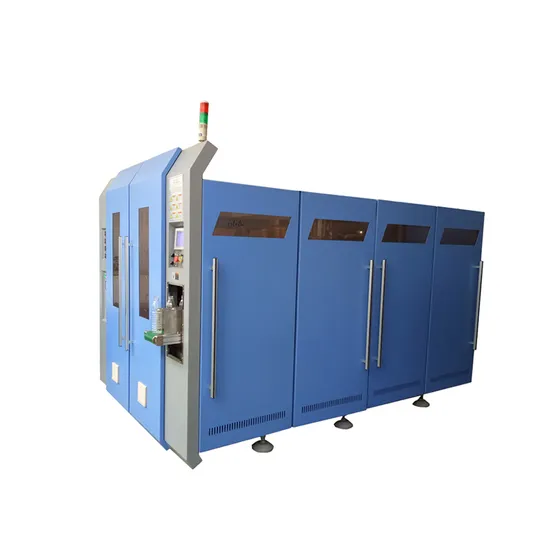

New Design Small Plastic Bottle Forming Machine for Pure Water

New Design Small Plastic Bottle Forming Machine for Pure Water

US$35,000.00-45,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
SD-A4
Making Method of Parison
Stretch Blow
Automation
Non-Automatic
Computerized
Computerized
Certification
ISO9001:2008
Transport Package
Wooden Case
Specification
1600*600*1610mm
Trademark
Shinedew
Origin
Guangdong, China(Mainland)
HS Code
8477309000
Production Capacity
100sets/Month

Product Description

New Design Small Plastic Bottle Forming Machine for pure water
Production Description
Application:
Suitable for producing PET plastic containers and bottles from 100-2000ml. It is widely used to produce the carbonated drink bottle, drinking water bottle, oil bottle, cosmetics bottle, wide-mouth bottle etc.
Features:
1. Adopting double crank to adjust mould ,heavy locking mould, stable and fast , adopting infrared oven to heat the perform ,the perform rotated and heated equally.
2. The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
3. The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
4. The machine can be operated in the step-by-step mode and the semi-auto mode.
5. The machine is small with low investment, safety lock system for the blow molding system, ensure safety operating.
6. Volume exchange will be through the PLC control panel by setting the film sending time and filling time only.
7. One person can operate semi-auto perform loading and product bottle discharging and combining the fully auto blower process.
8. Space saving and low cost for equipment investment.
9. Sound distinguish and lubrication device is equipped on the machine for easy maintenance.
Machine specifications are as below:
Model Unit SD-800-2 SD-800-4 SD-800-6 SD-800-9 SD-2000-2 SD-2000-4 SD-2000-6 SD-5000-2 SD-20000-1 SD-20000-2
0.5L bph 2000-2200 4000-5000 6000-8000 9000-10000 2000 3000-4000 4000-5500 900-1500 300-400 600-800
Cavity cavities 2 4 6 9 2 4 6 2 1 2
Max.Volume L 0.75 0.75 0.75 0.75 2 2 2 5 20 20
Main power Kw 34 66 66 66 34 82 82 66 88 88
Voltage V 380/220V 50/60Hz 3 phase
Weight kg 3000 4500 6500 8000 3000 5500 8000 5500 5500 7500
