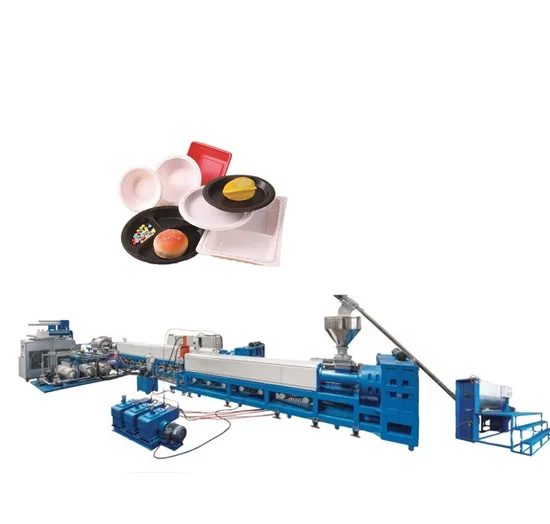

PS Foam Sheet Extruder for Disposable Food Boxes
| US$150,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HLSJPS-130/170
Type
Sheet Extruder
Plastic Processed
Polystyrene
Product Type
Extrusion Molding Machine
Feeding Mode
One Feed
Assembly Structure
Separate Type Extruder
Screw
Twin-Screw
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Exhaust
Exhaust
Automation
Automatic
Computerized
Computerized
Capacity
370-500kg/H
Sheet Thickness
1.5-6mm
Sheet Width
Double Sheet 1300mm
Foaming Rate
11-25times
Transport Package
Standard Packaging
Specification
35x4.55x3m
Trademark
Holin
Origin
China
Production Capacity
5sets
Packaging & Delivery
Package Size
4000.00cm * 450.00cm * 300.00cm
Package Gross Weight
32000.000kg
Product Description
Description of Plastic sheet extruder machine sale1.Production process
Expand Polystyrene Sheet Extruder is the sheet producing machine with 2 screws and by gas foaming type.
It takes General Purpose Polystyrene (GPPS) as raw material, injects gas foaming agent during the producing process. And the Winder wraps up the sheet in rolls.
2.Product use
The sheet is for thermoforming purpose, and can be made into fast food containers, egg trays, disposable bowls etc. Since it has properties of heat and sound insulation, the sheet material is also widely used in architecture; such as decorative board, inner ceiling of car.
3.Advantages
1)Precise strong screw
2)Precise elements
3)No leakage
4)Parts brand we use:Mitsubishi, Siemens, Lewa
5)Even thickness and smooth sheet
6)Can save all kinds of technical parameters
7)PLC control
MODEL PROVIDED
4.Technical Parameters
| Foam Polystyrene Sheet Extruder Main Techincal Parameters | ||||
| Style No. Parameters | Unit | HLSJPS-120/150 | HLSJPS-100/130 | HLSJPS-130/170 |
| Capacity | kg/hr | 370-500 | 250-310 | 450-550 |
| Thickness | mm | 1.2-6 | 1.2-6 | 1.2-6 |
| Width | mm | 1000-2000 | 1000-2000 | 1000-1500 |
| Foaming Ratio | times | 11-30 | 11-30 | 12-25 |
| Linear Speed | m/min | 5-40 | 5-40 | 5-40 |
| Mounted Capacity | kw | 540 | 250 | 625 |
| Pressure of Cooling Water | mpa | ≥0.2 | ≥0.2 | ≥0.2 |
| Cooling Water | t/h | 18 | 13 | 20 |
| Compressed Air Pressure | mpa | 0.7 | 0.7 | 0.7-0.9 |
| Compressed Air Amount | CBM/min | 1.5 | 1.1 | 2 |
| Butane Injection Pressure | mpa | 1 | 1 | 1 |
| Weight | ton | 22 | 18 | 32 |
| Installation Size | m | 35*4.55*3 | 33*5*3 | 40*4.5*3 |
5.After sales Service
1)We dispatch engineers to customers' factories for installation and training.
2)One year warranty for main machine parts, and after one year we supply parts in reasonable price
3)24hours on-line service for you.
