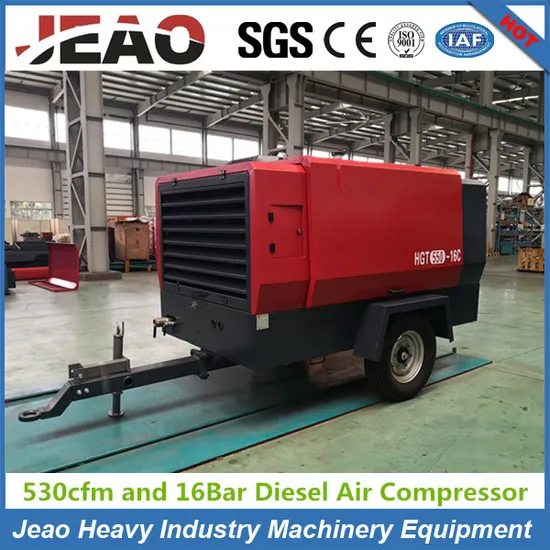

16bar Diesel Engine Driven Portable Mining Quarry Diesel Compressor
| US$13,200.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HGT550-16C
Lubrication Style
Lubricated
Cooling System
Air Cooling
Power Source
Diesel Engine
Structure Type
Closed Type
Installation Type
Movable Type
Type
Twin-Screw Compressor
Capacity
15/17m3/Min
Work Pressure
16/13bar
Diesel Manufacturer
Dece Engine
Diesel Model No
Qsb5.9-C210
Power
154kw
Dimension
5860*1900*1960mm
Weight
2450kg
Transport Package
Nube Package
Origin
China
HS Code
8414809090
Production Capacity
100sets Per Months
Product Description
16bar Diesel Engine Driven Portable Mining Quarry Diesel CompressorHGT series air compressors adapt to the market development direction and develop a more reliable and cost-effective single-stage high-pressure mobile screw air compressor.
Excellent comprehensive performance, more widely used in high-efficiency drilling, pipeline pressure testing and water well drilling.
For extreme use environments, the unit is equipped with heavy fuel filters, large-capacity batteries, and optional cold liquid fuel heaters can be used in the cold zone to heat, the cylinder through the small cooling cycle of the diesel engine, so that you can start worry-free.
Specification for HGT550-16C Mining Quarry Diesel Compressor
| Compressor | Model No | HGT550-16C |
| Capacity(m3/min) | 15/17 | |
| Discharge Pressure(Bar) | 16/13 | |
| Compressed Class | Single | |
| Tank Capacity(L) | 130 | |
| Screw Oil Capacity(L) | 65 | |
| Engine | Engine Model | DECE |
| Model | QSB5.9-C210 | |
| Cylinder No. | 6 | |
| Rotate Power(Kw) | 154 | |
| Rotate Speed(rpm) | 2100 | |
| No-load Speed(rpm) | 1400 | |
| Lubricating Oil Capacity(L) | 18 | |
| Coolant Capacity(L) | 50 | |
| Fuel Capacity(L) | 220 | |
| Whole Machine | Joint Dimension | 1-G2'',1-G1'' |
| Size(L*W*H) | 3860×1900×1960 3000x2020x2300 | |
| Weight(Kg) | 2450 | |
| Wheel No. | 2 |
