Automatic Plastic Bending Machine with CE Certified

Product Description

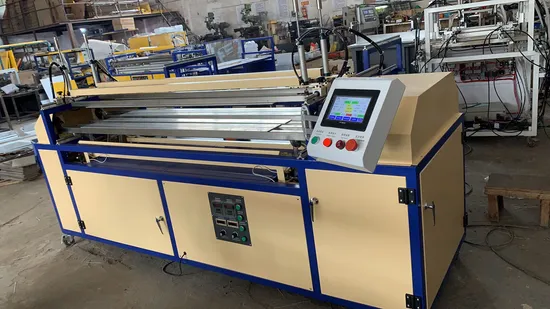

Computer Type Plastic acrylic PVC Sheet automatic bending machine for sale Product introduction: The high efficiency acrylic automatic bending machine(computer type) is based on a precise mechanical structure, which automatically sets the heating time and heating temperature. The required angle can be directly bent and formed automatically. The automatic and manual two- states are optional, and the computer touch screen operation control is adopted to simplify the operation and use procedure, which is convenient, efficient, and ensures the molding precision of the processed product. It is one of the first choice equipment for modern high end acrylic products and logo crafts manufacturers.
Advantages:
Height adjustable device for bottom heater\Aadjustable heating width\Digital thermostat for bottom heater\Dural cooling system(water cooling and air cooling).
Specifications: 1.Applied materials: Acrylic, PVC, PE, PP, PET, HIPS and other
2.Plastic materials Bending thickness: ≤16mm
3.Heating Way: Constant temperature
4. Heating gap: 0-30mm adjustable
5.Double pipe spacing: adjustable from 130-550mm
6.Bending Temperature: 0-300° adjustable
7. Bending height: within 450mm (Can be customsized)
8. Bending angle: 0-180°
9.Operation system: Computer touch screen control system.
10.Cooling system: water circulation cooling and air cooling
11.Applications: For all kinds of acrylic advertising signs, lighting, craft products and other bends.
12.Operating system: computer touch screen control system.
13.Performance: Configured with computer touch screen operation controller and servo motors, the required angle is directly input in digital form , the heating temperature and the heating time can be calculated by themselves, the bending parameters are set in the batch production, the automatic bending forming is performed in the daytime, the mass production is performed, and the bending angle precision is more accurate. Manual and automatic both available for choice, it can bend two angles at the same time, and one table control can be turned on/off.
14.Machine structure configuration: The cooling system is made of industrial 304# stainless steel thick material, the work surface is pure aluminum plate, and the heat dissipation is faster.
Applications:
For all kinds of acrylic advertising signs, lighting, craft products and other bends Operating system: computer touch screen control system.
Performance:
The computer touch screen operation controller is configured, the required angle is directly input in digital form , the heating temperature and the heating time can be calculated by themselves, the bending parameters are set in the batch production, the automatic bending forming is performed in the daytime, the mass production is performed, and the bending angle precision is more accurate. Manual and automatic both available for choice, it can bend two angles at the same time, and one table control can be turned on/off.
Machine structure configuration:
The cooling system is made of industrial 304# stainless steel thick material, the work surface is pure aluminum plate, and the heat dissipation is faster.
