Multiple Core Low Voltage Electric Cable Wdzn-Yjy/Yjy22 Copper/Aluminum Insulated PVC Construction Under-Armour Electrical Cable Wire 35mm2 Power Cable Wire

Product Description

Product Description 0.6/1kV XLPE or PVC or EPR insulated Power Cable
Application: Low voltage power cable is applied to fixed installation for rated voltage 0.6/1kv of power transmission and distribution line.
Applicable Standards: IEC60502, GB/T12706-1, BS 6346 HD 603 S1/A2, ICEA S 95-658, AS/NZS 5000, BS 5467, CSA C22.2 NO.51 or the standards agreed by both of the customers and us.
Production Scope:
Nominal Cross-section: 1.5-1000mm2
Rated Voltage: 600/1000V
Cores: 1, 2, 3, 4, 5, 2+1, 3+1, 3+2, 4+1 etc.
Color of insulation: Red, Yellow , Green ,Blue, Black ,yellow/green.
Construction:
Conductor: Copper or aluminum
Insulation: PVC,XLPE,EPR
Inner sheath (Optional): PVC
Armored (optional):
Galvanized steel wire/Aluminum wire/Galvanized steel tape /Aluminum tape /Aluminum alloy interlocked armor.
Outer Sheath: PVC, PE, or other special requirements
* We can design and produce according to client's requirement.
Product Parameters

0.6/1KV 3+1 Cores, Copper or Aluminum Conductor, XLPE Insulated steel wire armour PVC sheath Power Cable
Number of Cores and Nominal Area	Thickness of insulation		Approx. Overall Diameter & Weight				Max. DC Resistance at 20ºC		Current Rating (A)
	Phase	Earth/Neutral	Copper		Aluminium		Copper	Aluminium	Copper		Aluminium
Nos×mm2	mm	mm	Overall Dia. mm	Weight kg/km	Overall Dia. mm	Weight kg/km	Ohm/km	Ohm/km	Under Ground	In Air	Under Ground	In Air
3×2.5+1×1.5*	0.7	0.7	17.2	600	17.2	-	7.41	-	38	30	-	-
3×4+1×2.5*	0.7	0.7	17.4	649	17.4	-	4.61	-	50	49	24	17
3×6+1×4*	0.7	0.7	18.6	769	18.6	-	3.08	-	65	55	35	27
3×10+1×6*	0.7	0.7	20.3	989	20.3	763	1.83	3.08	89	78	49	37
3×16+1×10*	0.7	0.7	22.5	1270	22.5	906	1.15	1.91	115	105	66	57
3×25+1×16	0.9	0.7	27.1	1857	27.1	1286	0.727	1.25	150	140	89	77
3×35+1×16	0.9	0.7	29.3	2234	29.3	1483	0.524	0.868	180	170	115	105
3×50+1×25	1.0	0.9	31.9	2828	31.9	1778	0.387	0.641	215	205	135	125
3×70+1×35	1.1	0.9	36.3	3928	36.3	2420	0.268	0.443	265	260	165	155
3×95+1×50	1.1	1.0	40.0	4956	40.0	2904	0.193	0.320	315	320	220	195
3×120+1×70	1.2	1.1	44.4	6408	44.4	3760	0.153	0.253	360	370	240	235
3×150+1×70	1.4	1.1	48.2	7456	48.2	4299	0.124	0.206	405	430	275	280
3×185+1×95	1.6	1.1	52.4	9081	52.4	5062	0.0991	0.164	460	490	310	320
3×240+1×120	1.7	1.2	57.9	11292	57.9	6045	0.0754	0.125	530	580	350	370
3×300+1×150	1.8	1.4	63.0	13648	63.0	7106	0.0601	0.100	590	660	410	440
3×400+1×185	2.0	1.6	71.0	18102	71.0	9457	0.047	0.0778	670	750	460	520
Note:* means round conductor

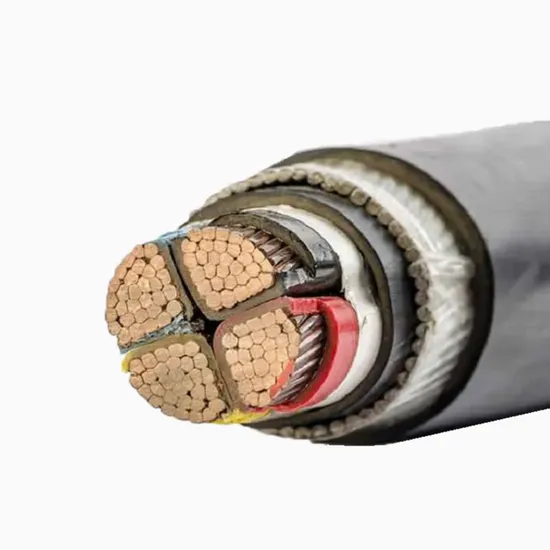

Four Cores, Copper or Aluminum Conductor, XLPE Insulated steel wire armour PVC sheath Power Cable
Nominal Cross Section mm2	Thickness of Insulation mm	Approx. Overall Diameter & Weight				Max. DC Resistance at 20ºC		Current Rating( A)
		Copper		Aluminium		Copper	Aluminium	Copper		Aluminium
		Overall dia. mm	Weight kg/km	Overall dia. mm	Weight kg/km	Ohm/km	Ohm/km	Under Ground	In Air	Under Ground	In Air
4×1.5*	0.7	17.0	593	-	-	12.1	-	28	21	-	-
4×2.5*	0.7	18.0	663	18.0	600	7.41	-	38	30	24	17
4×4*	0.7	19.1	770	19.1	670	4.61	-	50	49	35	27
4×6*	0.7	20.3	916	20.3	772	3.08	-	65	55	49	37
4×10*	0.7	22.3	1148	22.3	895	1.83	3.08	89	78	66	57
4×16*	0.7	24.5	1472	24.5	1070	1.15	1.91	115	105	89	77
4×25	0.9	27.5	1942	27.5	1317	0.727	1.25	150	140	115	105
4×35	0.9	29.5	2386	29.5	1521	0.524	0.868	180	170	135	125
4×50	1.0	32.9	3206	32.9	2036	0.387	0.641	215	205	165	155
4×70	1.1	36.7	4197	36.7	2502	0.268	0.443	265	260	220	195
4×95	1.1	40.5	5362	40.5	3016	0.193	0.320	315	320	240	235
4×120	1.2	45.3	6908	45.3	3940	0.153	0.253	360	370	275	280
4×150	1.4	50.0	8327	50.0	4683	0.124	0.206	405	430	310	320
4×185	1.6	54.2	10044	54.2	5466	0.0991	0.164	460	490	350	370
4×240	1.7	60.4	12672	60.4	6666	0.0754	0.125	530	580	410	440
4×300	1.8	65.7	15302	65.7	7795	0.0601	0.100	590	660	460	520
4×400	2.0	74.2	19969	74.2	10319	0.047	0.0778	670	750	523	615
Note:* means round conductor

Detailed Photos
Packaging & Shipping
* We can design and produce ACSR according to client's requirement. Any requirement, feel free to contact us!
