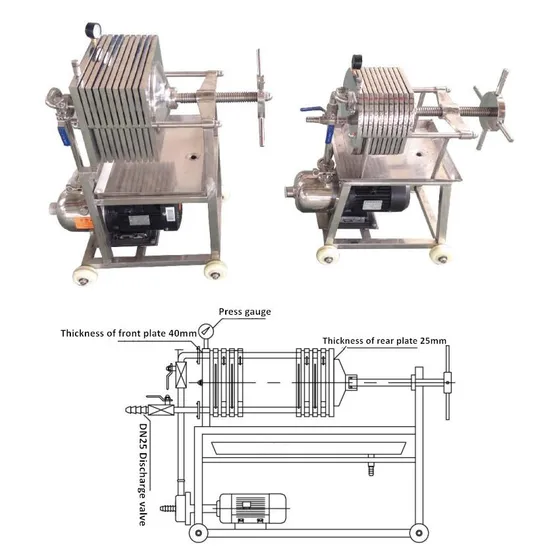

Small Movable Laboratory Stainless Steel Precision Plate Filter Pressure Machine

Product Description

Product Description
Work Principle:
Suspensions will be put into the hermetic straining chamber by pump, at the function of the pressure, the suspension will flow through the filter layer, filter membrane and other filter materials, flow out through the filter membrane then, the filter residue will be left and become filter cake in the sheet frame, so purpose for the solid-liquid separation will be come true. Product Features
- Made of SS 304 or SS 316L, corrosion-resistant, long life span resistance, and easy operation
- Use screw thread structure. Can change filtering media (uses filter membrane can remove the bacteria) according
to customer material and technical requirements (primary filtration / medial fine filtration/ fine filtration)
- Works under pressure without leakage and filtrates cleanly
- Can be used as multilevel filtering devices: first-level filtering media, second-level fine media, improve the filtering
effect and efficiency
- All seals are made of silica rubber, which can endure high temperatures and no toxicity, no leakage
Product Parameters

Model/Dimension	Filter Plate Quantity	Filter area	Filter Plate Size	Filter Member Pore Size	Pressure	Flow(T/H)	Pump Power	Size(mm)	Inlet	Outlet
CR100-10	10	0.078m2	Φ100	0.8um	0.15Mpa	0.8	0.55KW	600×300×600	Φ15mm	Φ15mm
CR100-10	10	0.170m2	Φ150	0.8um	0.15Mpa	1.5	0.55KW	650×380×650	Φ20mm	Φ15mm
CR100-10	10	0.34m2	Φ200	0.8um	0.15Mpa	2	0.55KW	650×400×700	Φ20mm	Φ15mm
CR100-10	10	0.700m2	Φ300	0.8um	0.2Mpa	4	1.10KW	700×500×800	Φ25mm	Φ20mm
CR100-10	20	1.4m2	Φ300	0.8um	0.2Mpa	8	1.10KW	800×500×800	Φ38mm	Φ25mm
CR100-10	30	2.1m2	Φ400	0.8um	0.2Mpa	10	1.10KW	900×500×800	Φ38mm	Φ25mm
CR100-10	10	1.250m2	Φ400	0.8um	0.2Mpa	6	1.10KW	900×600×1000	Φ38mm	Φ25mm
CR100-10	16	2m2	Φ400	0.8um	0.2Mpa	9	1.50KW	1000×600×1000	Φ38mm	Φ25mm
CR100-10	20	2.5m2	Φ400	0.8um	0.2Mpa	10	1.50KW	1100×600×1000	Φ38mm	Φ25mm
CR100-10	24	3m2	Φ400	0.8um	0.3Mpa	12	2.20KW	1200×600×1000	Φ38mm	Φ25mm
CR100-10	30	3.8m2	Φ400	0.8um	0.3Mpa	16	2.20KW	1300×600×1000	Φ45mm	Φ25mm
CR100-10	32	4m2	Φ400	0.8um	0.3Mpa	18	2.20KW	1320×600×10000	Φ45mm	Φ25mm
BAS200-10	10	0.4m2	200×200	0.8um	0.15Mpa	3	1.10KW	650×380×650	Φ15mm	Φ15mm
BAS300-10	10	0.9m2	300×300	0.8um	0.15Mpa	6	1.10KW	700×500×800	Φ20mm	Φ15mm
BAS400-10	10	2m2	400×400	0.8um	0.15Mpa	10	1.50KW	900×600×1000	Φ25mm	Φ15mm
BAS400-20	20	3m2	400×400	0.8um	0.15Mpa	12	2.20KW	1100×600×1000	Φ25mm	Φ20mm
BAS400-26	26	4m2	400×400	0.8um	0.2Mpa	15	2.20KW	1150×600×1000	Φ38mm	Φ25mm
BAS400-32	32	5m2	400×400	0.8um	0.2Mpa	18	2.20KW	1200×600×1000	Φ38mm	Φ25mm
BAS400-38	38	6m2	400×400	0.8um	0.3Mpa	21	2.20KW	1300×600×1000	Φ38mm	Φ25mm
BAS400-44	44	7m2	400×400	0.8um	0.3Mpa	24	3.00KW	1360×600×1000	Φ38mm	Φ25mm

Product Application
Food and beverage industry: beer, wine, wine, sake, liquor, wine, fruit juice, bottled water, tea drinks, soy milk, syrup, dairy products, food additives, water filtration to clarify the process and CIP. Petrochemical industry: all kinds of lubricants and oil, glue, chemical fiber manufacturing process of various solution was filtered. Oil and gas industry: amine desulfurization, dehydration flux filter, oil field water, completion fluid filtration. Car paint, painting industry: paint, electrophoretic paint, pre-treatment fluid, paint and paint raw materials and solvent filtration Textile/printing and dyeing/paper making industry: spinning liquid, dyes, flux, water, additives, adhesives filter. Edible oils and soap industry: polishing purification of edible oil, soap raw materials and water filtration. Pharmaceutical industry: a variety of pharmaceutical intermediates, pharmaceutical raw materials, solvent filtration. The electronic and electroplating industry: a variety of plating solution and water filtration. Machining industry: a variety of cutting fluid, coolant and cleaning liquid filtration.
Etc...
Certifications
Packaging & Shipping
Company Profile
FAQ

Q: Are you manufacturer?

A: Yes, we are a manufacturer with over 15 years of history, address is located in Fengxian District, Shanghai.

Q: Can you provide sample? Free or chargeable?

A: Yes, we can provide free sample for filter elements, for filter housing need chargeable.

Q: Dose the product support customization?

A: We have a professional team of engineers, can provide customized solution plan according to customers need.

Q: What is the payment terms?

A: Usually we support the T/T.

Q: How to choose the shipping way?

A: We cooperate with professional logistics companies, and customer also can choose own freight forwarder.
