Granite Marble Rock Stone Cutting Machine Bridge Hydraulic Stone Cutter

Product Description

Product Description

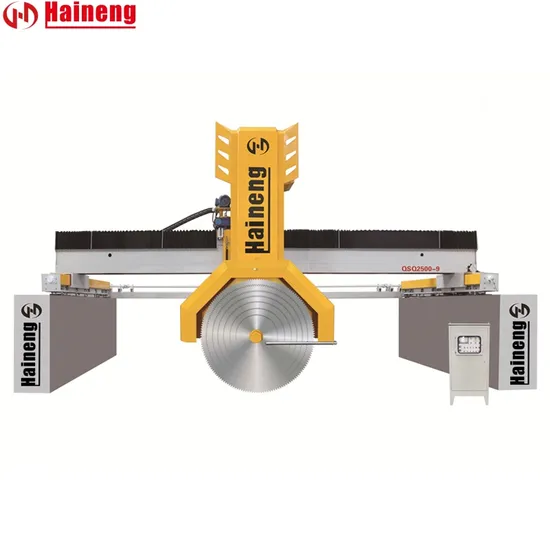

Bridge Hydraulic Stone Cutter adopts long-span bridge structure, the beam side beam sealed oil-immersed guide rail, automatic displacement splice, the lifting system adopts hydraulic lifting (or screw lifting) transmission, to achieve smooth and fast lifting and dropping tool, the transverse cutter adopts frequency converter to achieve stepless speed regulation. Automatic walking cutting, and specially equipped with lifting and side beam transmission protection device.During processing, raw materials can be directly placed on the ground to save the trolley and its maintenance costs. The machine has fine processing, stable performance, high automatic production efficiency, convenient installation, operation and maintenance, and meets the development demand of international stone processing.
Product Parameters

Bridge Hydraulic Stone Cutter
Type	Unit	2500A	2800A	3000A	3200A
Main motor power	kw	30-37	37-45	45-55	55-75
Blade diameter	mm	Φ1600-Φ2500	Φ1600-Φ2800	Φ1600-Φ3000	Φ1600-Φ3200
Elevation travel of motor	mm	1200	1300	1400	1500
Slicing stroke	mm	2200	2200	2200	2200
Cutting stroke	mm	4500	4500	4500	4500
Saw blade number	pcs	1-9	1-9	1-9	1-9
Overall dimensions (L×W×H)	mm	8000×3800×4200	8000×3800×4500	8000×3800×4800	8000×3800×5000
Machine weight	kg	12000	12500	13000	13500

Processing
Packaging & Shipping
Partial Control Element
Company Profile

CertificationsExhibitionMarketing SystemCompany information
After Sales Service
1.Parts & Accessories Quick supply for needs
2.Troubleshooting by phone, e-mail, or WhatsApp/Wechat
3.Provide paper or electronic version of the product manual
FAQ
Q:what is the MOQ?A:1 set.Q:How's your machine's quality?A:We are a professional stone machine manufacturer more than 20 years, we've sold lots of machine at home and abroad. We will continuously provide new and old customers more and better services to help your business booming.
90% of our factory's machine are exported, including for the United States, Brazil, Russia,Algeria,Iran, Egypt, Morocco, Georgia, and other more than 10 major purchasers and for more than 20 Chinese trading companies OEM, and we also directly export too, the machines are exported to over 85 countries and regions.Q:What's the warranty time?A:The whole machine is guaranteed for one year, including electrical components and mechanical partsQ:Whether the machine can be customized according to our requirements?A:Customization available,Experienced techs for all your questions.
The factory owner is a mechanical engineer with more than 25 years of design and manufacturing experience. A variety of products have been customized for different customers in more than 20 countries.
