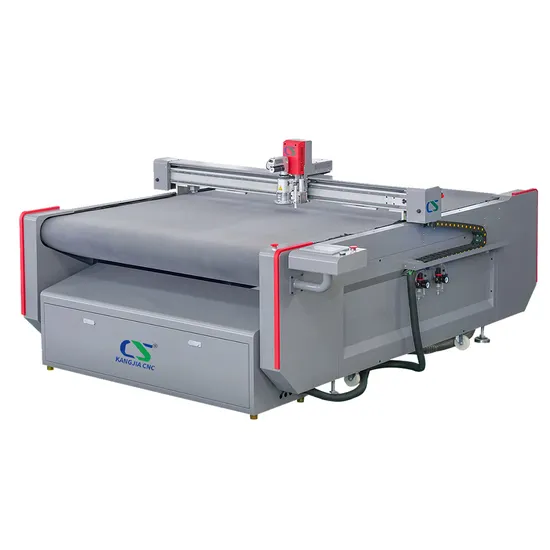

Wholesale Good Quality Babe Cloth Oscillating Knife Cutting Machine with Round Knife

Product Description

Product Description
1. This product adopts advanced non-fixed welding integration technology, so that each functional module can be flexibly replaced and added according to actual work needs and business scope expansion. According to different processing tasks and material types,tool heads with different functions can be easily replaced or added, such as vibrating knives, circular knives, pneumatic knives,electric knives, bevel cutting knives, V punches, round punches, etc. 2. Equipped with an LED touch screen, making the operation more intuitive and convenient. Therefore, whether it is changing the tool head or setting parameters, it can be easily done through the intuitive user interface.
3.PMI's guide rail and integrated frame design not only improves the durability and stability of the product, but also makes
equipment maintenance easier.
4. Using advanced vacuum adsorption technology, it can secure various materials safely and efficiently.
5. Equipped with emergency stop button, infrared shooting and anti-collision functions. These safety features not only protect the safety of operators, but also improve the work efficiency of the equipment. Product Parameters

model	PDA-SL1615	PDA-SL1625	PDA-SL1825	PDA-DT1625
PowerEffective cutting area	1500*1600(L*W)	2500*1600(L*W)	2500*1800(L*W)	2500*1600(L*W)
Operating mode	automatic	automatic	automatic	Semi-automatic
Voltage	110V/220V/380V±10%, 50HZ 60HZ	110V/220V/380V±10%, 50HZ 60HZ	110V/220V/380V±10%, 50HZ 60HZ	110V/220V/380V±10%, 50HZ 60HZ
Cutting speed	max 1200mm/s (Standard version)	max 1200mm/s (Standard version)	max 1200mm/s (Standard version)	max 1200mm/s (Standard version)
Cutting thickness	≤50mm	≤50mm	≤50mm	≤50mm
Power	7.5/9KW	9KW	9KW	9KW
Cutting accuracy	±0.1mm	±0.1mm	±0.1mm	±0.1mm
Cutting Materials	Flexible Materials	Flexible Materials	Flexible Materials	Flexible Materials
Material fixation method	vacuum adsorption	vacuum adsorption	vacuum adsorption	vacuum adsorption
Compatible software	KANGJIA software	KANGJIA software	KANGJIA software	KANGJIA software
Control system	LED touch screen	LED touch screen	LED touch screen	LED touch screen
Transmission interface	USB /inernet port	USB /inernet port	USB /inernet port	USB /inernet port
Drive motor	Delta/Innovative (standard version)	Delta/Innovative (standard version)	Delta/Innovative (standard version)	Delta/Innovative (standard version)
Rail	PMI	PMI	PMI	PMI
Safety device	emergency stop button, infrared beam, anti-collision	emergency stop button, infrared beam, anti-collision	emergency stop button, infrared beam, anti-collision	emergency stop button, infrared beam, anti-collision
Architecture	integrated framework	integrated framework	integrated framework	integrated framework

Application
Widely used in industrial leather, plastic, rubber, sponge, foam, EVA, PVC, cardboard, paper products, fabrics, home textiles, packaging materials, non-woven fabrics, carpets, car cushions, felt, synthetic materials, other non-metallic materials and other industries; Company Profile
Quality:
Integrated welding frame body,the preferred parts work stable,long service life. Service:
Lifetime after-sales, 24-hour stand by service free update software,version and other regular visits. Secure:
Infrared induction + mechanical collision avoidance system is safer and more assured.
Feature:
Eight kinds of cutter head interchange, meet a variety of materials cutting,punching.indentation,etc., One machine multi-purpose support multi-cutter head equipment customization. Precision: Higher cutting accuracy. The error is within 0.lmm. Environmental protection: Cold cutting dust-free,smoke-free,natural environmental protection does not destroy the material
Brain power: Automatic cutting equipment, automatic plate holding software.
Save materials and eliminate waste. FAQ Q: 1. How can I choose a suitable cutting machine?
A: Please provide us some info, then we can recommend you the suitable machine:
1)What materials are going to cut? 2)What's the largest size of original materials? 3)What's the thickness of materials? Q: 2. Can you design a machine for me depending on my requirements? A: Of course, we will discuss details with you and give you our professional suggestion for the machine ensure the machine could match all your requests with best cost performance. Q: 3. What should I do if the machine has any problem in future? A: We supply online technical support and door to door service. Anything confuse you, just contact us. Q: 4. What's the warranty policy? A:Standard warranty is 12 months upon delivery. Main parts are free of charge(except consumable parts) when problems happened because of quality problem during this period. Problems caused by wrong operate will also well-solved.
Q:5.What is the Price and payment terms? A:EXW,CIF,FOB we all can accept payment:TT/Paypay/LC/Western Union.etc Q: 6.What's the package? A: Film packaging+wooden case. Fumigation-free plywood case is also available.
