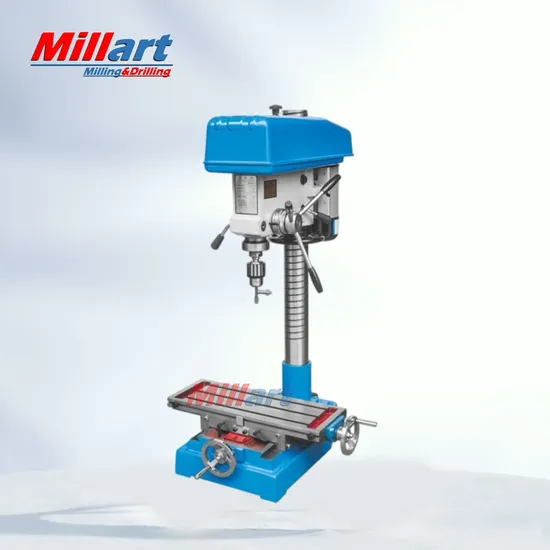

Mini Bench Type Drilling Milling Machine Zx7032, Vertical Milling Drilling Machine

Product Description

Product Description
1.The spindle can automatically, fretting and manual feed;
2.Spindle box can be tilted +/-45 °, automatic up and down lifting;
3.Strengthen the type column, and large working table, stable and strong.
Technical parameter :

Model		ZX7032
Max. Drilling capacity	mm	31.5
Max. face Milling capacity	mm	80
Diameter of vertical milling	mm	22
Spindle travel	mm	130
Distance spindle axis to column generating line	mm	202
Max. Distance spindle nose to table	mm	460
Spindle taper		MT3
Spindle speeds range	r/min	100~2150
Spindle speeds series		12
Dimension of worktable surface	mm	730X210
Table travel	mm	450X170
Overall height	mm	1100
Main motor	w	1500
G.W/N.W	kg	285/250
Packing dimension	cm	86x74x116 97x77x116

Standard accessories:
Drill chucks,
milling cutter ,
taper sleeve ,
taper shank rod,
arbor,
wrench,
rod
Optional accessories:
Milling chuck,
angle vice,
eye shields,
stand base
Company information:
Packaging & Shipping
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.
