Figure-8 Self-Supporting with Steel Wire Overhead Installation Gyxc8y G652D Fiber Optic Cable

Product Description

We are 22 years coaxial cable, fiber optic cable, data cable manufacturer.

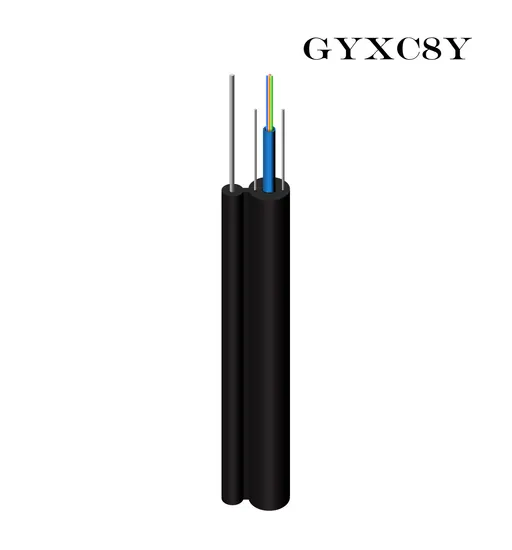

Figure-8 Self-Supporting with Steel Wire Overhead Installation Gyxc8y G652D Fiber Optic Cable
DESCRIPTION This product is to put the optical fiber into a loose tube made of high modulus material, and the loose tube is filled with a waterproof compound. The loose tube is added with water blocking material to ensure the longitudinal water blocking of the optical cable. Two parallel steel wires are placed on both sides on the outside of the optical cable and a reinforcing element is added to the steel wire hanging wire.
FEATURES
Two parallel steel wires ensure the tensile strength of the optical cable;
Single phosphating steel wire is used as hanging wire, which is convenient for short-distance self-supporting overhead laying;
Small diameter, light weight and low cost;
The loose tube material itself has good hydrolysis resistance and high strength;
APPLICATIONS
Aerial
PERFORMANCE

Type	Max.Attenuation		Tensile strength		Crush resistance		Min.Bending radius(Dynamic)
	1310nm	1550nm	Short term	Long term	Short term	Long term
GYXC8Y	0.36dB/km	0.22dB/km	1000N	300N	1000N	300N	20D

FAQ
1.Are you the factory?
Yes, we are the factory with 22 years' history.

2. What is your main products?
Fiber optic cable: Outdoor/Indoor
Central loose tube/Stranded loose tube
FTTH Drop cables
ADSS
Coaxial cable: RG59/RG6/RG11
Network Data cable:UTP/FTP/SFTP
CAT5/CAT5e/CAT6/CAT7
Power cable: RVV series products
Various combination cables: Coaxial & Data cable
Coaxial & Fiber optical cable
RVV & Data cable
RVV & Fiber optical cable
3. Do you have certificate for raw material?
Yes, we do. We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Sample ready date is 2-3 days
Mass production is around 7-14 days
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 2KM
MOQ for coaxial cable:1KM
There is no MOQ required for CAT5e/CAT6 cable, as there's stock for normal kinds.
6. Are you willing to cooperate with distributors?
We are currently seeking distributors in many countries around the world for long-term cooperation.
7. Have you worked with operators?
Yes, we have many years of experience in cooperation and supply with operators.
8. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services, any of which is optional.
