. Innovative Slurry Mixer for Fuel Vehicle Lithium-Ion Batteries

Product Description

Product Description: Delve into the excellence of the 860L High Viscosity Mixer, a state-of-the-art solution crafted specifically for the meticulous demands of Lithium-Ion Battery Production. Experience the pinnacle of performance with a product that reflects our commitment to innovation and quality.

No.	Item	Equipment configuration
1	Equipment appearance	Stainless steel
2	Mixing paddle motor	Inverter-fed motor
3	Dispersing motor	Inverter-fed motor
4	Control system	International brand
5	Frame structure	Gantry
6	MES interface	Standard configuration
7	Spray system	Optional
8	Automatic temperature control system	Optional (customer needs to specify configuration) cold and hot water
Note: If there are special requirements or additional/reduced items (such as adding/reducing pipe openings), please provide additional explanations. The main switch power cord of the equipment inlet box and the hot and cold water pipes connected to the mixing tank interface can be prepared by the customer themselves.

Working principle	This equipment adopts intelligent control through a control panel or central control system, and can automatically operate according to the prepared mixing process flow; Equipped with two spiral mixing paddles and two sets of serrated dispersing discs, driven by a dual planetary structure, it can meet the efficient mixing of various powders and liquids. Through processes such as stirring and dispersion, the particle size, uniformity of particle distribution, and consistency of viscosity can be controlled; At the same time, the mixing bucket has the functions of quick replacement and vacuum sealing. By vacuuming, bubbles in the slurry can be eliminated; So as to meet the requirements of mixing and slurry forming processes.
Equipment composition	Vertical column structure, transmission part, sealed container, lifting system, control system, etc.
External size	Long 3700mm x wide 2020mm x high 3480mm (L x W x H(Vertical column type)
Design capacity	860L
Effective usage capicity	300-650L
Mixing paddle speed	5-44 rpm, Inverted-fed motor
Revolving electric motor	3-36 rpm
Dispersing speed	50-1480 rpm, Inverted-fed motor
Revolving motor	45KW
Dispersed motor power	55 KW
Lift motor	2.2KW
Weight	About 14 tons

Equipment Capability: Unveiling unparalleled capabilities, this mixer stands as a testament to groundbreaking engineering. Designed to handle high viscosity materials with ease, it ensures consistent, efficient, and precise mixing for superior battery component preparation.

Slurry production	Viscosity: 1,000 ~100,000 MPa.s, solid content is applicable to 30%~70%, and 85%~100%
Equipment failure rate	2%
Equipment bearing temperature	7ºC ~80ºC, the customer needs to provide the circulating cold and hot water
Temperature measurement accuracy	± 2ºC, the customer to provide circulating cold and cold water
Effective load of mixing paddle	>=3Nm/cm²
Applicable powders	PVDF, CMC, conductive agent, lithium iron phosphate, lithium cobalt acid, ternary, graphite, etc
Applicable solvent	And NMP, deionized water, etc
Applicable additives	SBR, CNT class
Vacuum pressure	Static 12H vacuum leakage rate is 10%
Not applicable:	Acetone solvent
Special reputation:	The requirements for powder feeding in the container of this equipment are: -20 kpa- + 20 Kpa. The vacuum system of this equipment is only applicable for the slurry and bubble removal function

Structural Decomposition Diagram: Gain insightful knowledge through our comprehensive Structural Decomposition Diagram, meticulously detailing the intricate architecture and design elements that make the 860L Mixer an extraordinary asset in battery production technology.

Gantry frame
2. Mixing tank
3. Mixing paddle
4.Feeding end
5.Power Distribution Cabinet

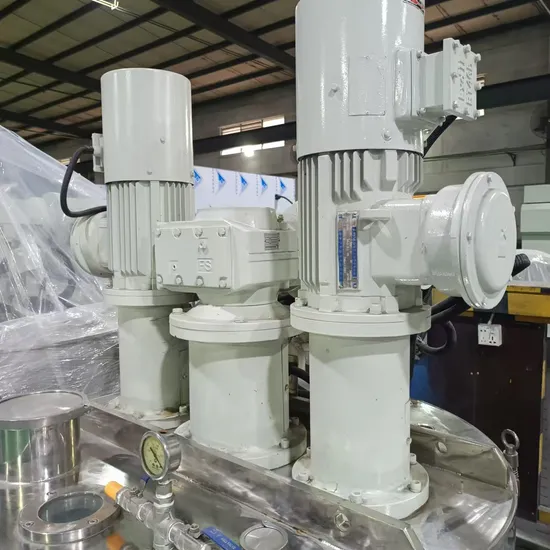

6.motor

Part of Project Case Presentation: Discover the transformative impact of our 860L Mixer through real-world project case presentations. Each case highlights the mixer's exceptional performance and adaptability in diverse operational environments, showcasing its ability to meet and exceed client expectations.
After Sales Service: Our commitment to excellence extends beyond product delivery. Experience unparalleled after-sales service, designed to support, maintain, and enhance the functionality of your 860L Mixer, ensuring seamless operation and enduring value. If I place an order, what is the usual delivery time? Typical Delivery Time: Anticipate a delivery timeframe of approximately 45-60 days, ensuring careful production and preparation to meet your highest standards and specifications. How do you meet my needs?Tailored Solutions: Share your production capacity, mixing materials, and specific requirements with us. We craft a customized solution to precisely align with your needs. A dedicated engineering group will facilitate seamless communication, ensuring a worry-free experience from start to finish. Can you provide on-site installation and debugging services?
On-Site Installation: Absolutely, our experts can visit your local workshop to guide the installation and commissioning process. This includes comprehensive training and production support, ensuring optimized operations and efficiency.
