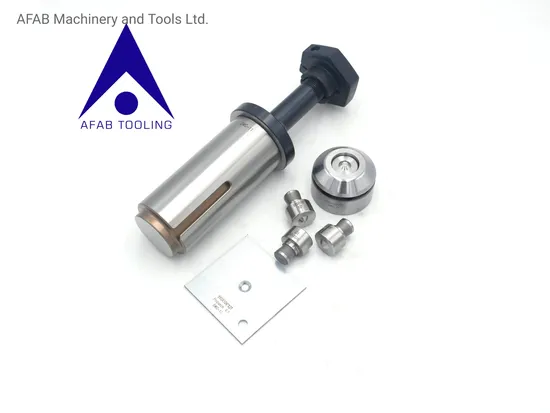

B Station Countersink Insert Type Formup

Product Description

Place of Origina	Shengzhen,China		Brand Name:	AFAB
Model Number:	1-1/4" B station		Leading time:	4-6 days
Max Diameter:	31.7mm		Port:	Shenzhen
Product Material:	M2 punch,D2 die		Package:	Carton,plasic,polywood
Hardness:	M2 HRC 60-64,D2 58-60		Ability:	120000pcs per month

THICK TURRET TOOLING suitable for Amada, Finn-Power, Prima-Power,LVD,Euromac,Yawei,Tailift,Yangli,JFY,LFK,Danobat,Murata,Pullmax,Durma,Ermaksan,Baykal,Rainer,MVD,SimasV,SNK,Dener,ITE
Thick Turret Tooling products range

Δ.Basic type is fully compatible with OEM popular series,Amada ,Mate original,Wilson metric.Best ecomonic type,save big cost.An economic ,Durablity,Performance,Lower cost type
Δ.FAB type is a better tooling,Durability,Performance,Long grinding life,Quick adjust,Compatible with amada punch,Exchange with NEX,Quickadjust,Rapidset,No need tools to adjust punch
Δ.FAB 90 type is a best tooling Durability,Performance,Grind life punch:6.0mm,Exchange with Wilson S90 series,Quickly adjust, no need tools to adjust
Δ.FAB ULTRA type is a smart design.Durability,Performance.Grind life Punch:6.0mm,Compatibale with Mate Ultra series.Quickly adjust,no need tools to adjust -Thick turret tooling,Punch press tooling
Δ.Special design tooling,Including close to clamp to type which saving sheet metal,Small diameter tool is for strengthen punching for below 2.0mm holes
Δ.AFAB supply and develop more forming tools ,To meet customers' various special application, Centerpoint,Shearbutton,Dimple,earth symbol mark,Extrusion Tapping,Emboss,Countersink.Knockout,Bridge,Louver,Lance and form,Emboss logo stamping,letter number stamping,Scrible marking,Bead,Hingle Tool,Wheel rib,wheel offset,Wheel marking,Locator,thread loop,thread form,easy-bend,Card-guide..
Δ.AFAB Multi Tool for Prima power,Finnpower,Euromac,Durma. MT8-24mm,MT10-16mm,MT24-10mm,XMT24mm
Δ.Clamp base assembly for AMADA,JFY,YAWEI. Various keys for turret holder,guide assembly.
Air Blow system
Air blow system -ABS tooling maintains the tools whilst dramatically reducing the risk of tooling related machine stoppages.
Δ.Injects high pressure oil mist into the tool during punching cycle.
Δ.Lubricates all critical areas and surfaces.
Δ.Clears fine needles and slugs through the die after punching.
Δ.Effective in overcoming 'Cold Welding' or 'Microfusing
Δ.Ensures optimum tool life.
Δ.Maintains component quality
Punch material: M2-SKH51-High speed steel, Hardness HRC 60°-64°,Japan M2--JP M2 available,addons.
Die material:D2-SKD11, Hardness HRC 58°-60°
TIN/Maxima coating optional and vailable,improve double punch life
TICN/ Optima coating optional and vailable,improve four times punch life
Standard shape:Rectangle,Square,Oblong,QR,QD,Single D,Double D,Hexagon,Octagon
FACTORY CAPACITY
AFAB Exhibition
Production leading time: Std shape 3-5 days, Special shape 4-5 days,Forming tooling 5-10 days.Coating need extra 3-4 days
Package: Extra thick carton or poly wood case. Deliver by DHL,TNT,UPS,FEDEX,AIRLINE
