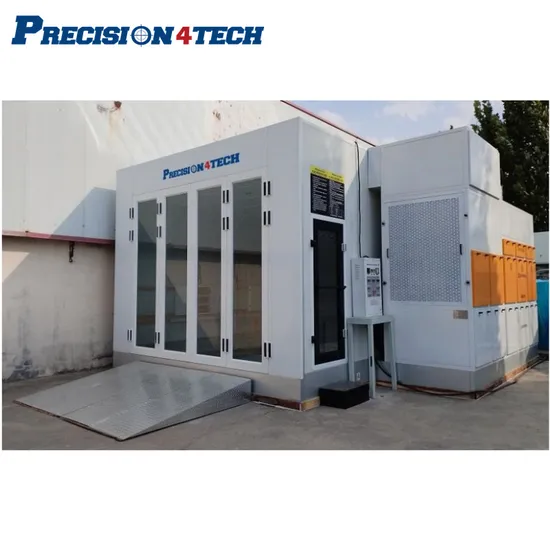

Car Spraying Oven/Auto Painting Oven Electric/Diesel Heating Spray Booth

Product Description

Car Spraying Oven/Auto Painting Oven Electric/diesel heating Spray booth

MODEL	DOWN DRAFT DDE-1 Solvent extral height	UPDATE	2022/7/27
Inside Size	6900×3900×3570mm(L×W×H)	Outside Size	7000×5300×4320mm(L×W×H)
Entrance Door	3 leafs sheet metal doors, size is 3,000x3,520mm(WxH)
Personnel Door	1 leaf ,size is 600x1800mm(WxH)
Cabin	EPS wall panels with concave type construction, the thickness is 50mm, higher density than standard height.
Basement	Steel structure base height is 300mm; improved two rows of grilles 30*5 belt steel, three rows of diamond plates, two ramps 280×1800mm(H×L)
Intake Air Units	2 sets intake fan model: YDW; single power 4kw capacity:20000m³/h
Outlet Air units	1 set outlet fan, model: YDW, single power 7.5KW capacity: 20000m³/h
Fan Cabinet	Square tube welded frame, galvanized sheet sprayed skin, Electric damper
Heating System	stainless steel heat exchanger,1 set RIELLO G10 diesel burner, heating capacity is 180000kcal/h
Filtering System	Pre-Filter Effectively capture dust particles larger than 10um Ceiling filter. Efficiently capture dust particles larger than 4um with a capture rate of ≥98%
lighting System	Ceiling lights :24pcsx16w LED lamp ≥800Lux Side vertical panel lights: 2x4pcsx48w, 2 rows, LED lamp ≥800Lux
Control System	Electric control box: Leakage protection, painting, baking varnish, lighting, emergency stop switch, timer, temperature control etc.
Power supply	380v/3phase/60HZ
Maximum Baking temperature	60ºC
Total power	16.5KW
Color	White

Factory Photos
Certifications
Company Profile
Started as machinery manufacture in 2003, Precision focused on manufacturing for auto lift and auto body collision repair bench and parts till today. At the meaning time, standard paint booth and customzied paint booth are gradually included in the business line. As requirements of new open workshops and some certain distributors,we set up 2 sales teams for international market.One team is to supply very professional consult and service for manufacturing and customization of car bench, lift and spray booth. The other team is for one-stop equipments supplying. Now there are 3 prodution bases for car lift, auto body collision repair frame machine (car bench) and spray booth manufacturing. The other related equipments are from partners' factories. Experience is the most competitive factor to work with us, there are 2 experienced consultants over 50 years in garage workshop new opening design and after sale service. They can supply practical solutions for both end users and producers. Team members are energetic spread in technique, production, sales, export customs declaration departments, which will assure high quality products and right export procedures for customers. Tested by CE, ISO9001, all products have been shipped to North/South American, South East Asia, Africa, Middle East, Europe, and Asia, as well as domestic market in China. Both OEM and ODM are acceptable. Welcome to contact us and looking forward to working with you.
our exhibition
Our Advantages

Perfect Quality Control We own professional quality management and process inspection team.

Experienced consultants We have 3 experienced consultants over 50 years in garage workshop.

OEM/ODM could accepted We could customized acording to customer's requirement.
