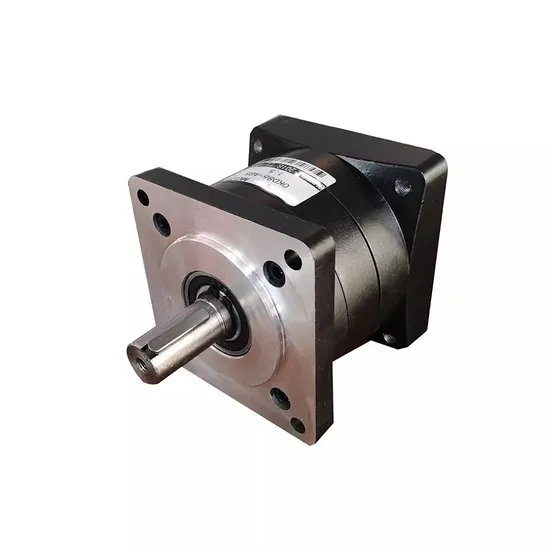

Speed Ratio 1: 5 86mm Planetary Reducer for NEMA 34 Motor

Speed Ratio 1: 5 86mm Planetary Reducer for NEMA 34 Motor

US$33.52 5 Pieces (MOQ)

Basic Info.

Model NO.
Nema 34
Number of Stator
Two-Phase
Excitation Mode
HB-Hybrid
Function
Driving
Number of Poles
2
Operate Mode
The Three Single Phase
Type
Electromechanical
Certification
ISO9001
Brand
China Brand
Name
Stepping /Servomotor
Size
NEMA34
Phases
Two
Lines
Four
Shaft Dia
16mm
Screw Hole
4*M6
Hole Distance
69.5
Shaft Lenght
32mm
Motor Length
86mm
Width
86mm
Transport Package
Carton Box
Specification
all size
Trademark
WF
Origin
Jiangsu, China (Mainland)
Production Capacity
10000/Month

Packaging & Delivery

Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
0.500kg

Product Description


Product Description Stepper motor is a type motor that runs in discrete steps after powering. These motors do not have an encoder inbuilt. But if it is needed it can be added externally.
As the encoder in the stepper motor is not present, the stepper motor is less complex than the servo motor. And as the total pole count is higher, the stepper motor produces higher torque than the servo motor.
The main drawback of stepper motors is that they cannot produce the same torque at high speeds. They miss phases and that is why they are not preferred for applications where high speed is a priority.
Hybrid Servo Motor / Stepper Motors offer high efficiency, low vibration and incorporates our newly developed Mechanical Absolute Encoder for absolute-type positioning without battery back-up or external sensors to buy. Closed loop performance without hunting or gain tuning. Available with a built-in controller or pulse input driver which substantially reduces heat generation from the motor through the use of high-efficiency technology.
Feature

Battery-Free, Mechanical Absolute Encoder Closed Loop Performance, No Hunting or Gain Tuning AC Input Wide Range of Gear Types for Inertia Matching & Higher Torque Electromagnetic Brake Type Available
Feature Stepper Motors Servo Motors
Torque High speed low torque High-speed motor torque
Types of magnet Stepper motors use conventional magnets Servo motors use rare earth magnets like Neodymium and Alnico
Size and weight Small and lightweight Large and heavy
Speed low to medium speed low to high speed
Operating system open-loop system closed-loop system
Power consumption Less power consumption High power consumption
Pole count High pole count (50-100) Low pole count (4-12)
Position control Low More
Response Fast Slow
Detailed Photos
Product Parameters
Our Customer
Company Profile
