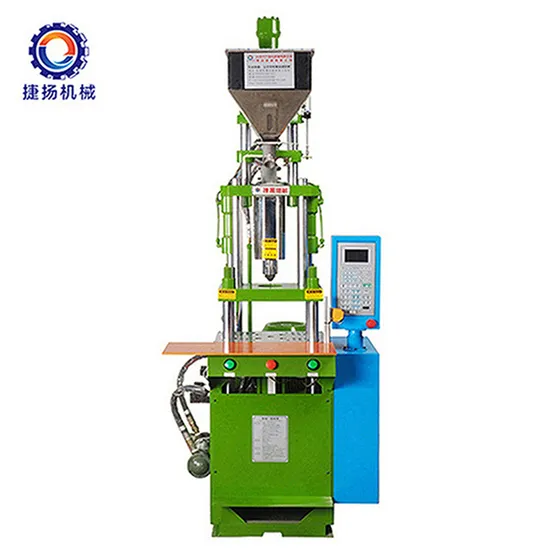

Wire Desktop Thermoplastic Tube Head Injection Molding Machine

Product Description

Wire Desktop Thermoplastic Tube Head Injection Molding Machine
1.in-line screw type injection apparatus.
2.temperature control.three-stage.fast,back pressure,screw speed stepless adjustment for a variety of precision plastic parts molding.
3.the lower mold fixed on the movable mold,insert items for a good positioning of the resistance,and has finished top of the device.
4.the low-pressure mold clamping device protection security.
5.the tube can lift,clean and convenient material head,fixed moldeasier.
6.can be installed with a single mode skateboards,skateboard or alternating dual mode
Detailed Images:
Advantage:
Parameter of Machine

	UNIT	UNIT	JY-250ST	JY-350ST	JY-500ST	JY-850ST	JY-1000ST
INJECTION UNIT	Screw Diameter	mm	30	35	42	48	48
	Injection Pressure	kg/cm2	886	820	960	790	1125
	Max.Shot Weight	g	74
				106	176	227	260
	Injection Rate	mm	115	115	140	140	200
CLAMPING UNIT	Clamping Force	Tons	34	45	55	85	120
	Distance Between Tie Bere	mm	375x205	410x250	470x280	525x325	635x425
	Opening Stroke	mm	180	200	200	255	300
	Max.Open daylight	mm	338/238	420/270	470/270	685/485	780/580
	Ejetor Force	Tons	1.3	1.76	1.76	2.1	4.8
	Ejetor Stoke	mm	35	35	35	45	45
OTHER	Power	KW	6.3	9	12	16	20
	Machine Weight	Tons	1.5	2.4	3.0	5	6.8
	Machine Dimensions(LxWxH)	m	1.55x0.93x2.45m	1.7x1.2x3.0m	1.85x1.2x3.0m	2.0x1.3x3.2m	2.0x1.4x4.1m
	Shipping Weight	Tons	1.8	2.7	3.4	5.4	7.2
	Shipping Measurment(LxWxH)	m	1.76x1.15x2.3	1.92x1.3x2.3	2.1x1.4x2.3	2.2x1.4x2.5	2.2x1.6x2.8

Application :
About Us

Packing & Shipping :
Our Services
1) 24 hours services, the answers to any questions will be replied sooner.
2) Direct factory services, exclusive and unique solution can be provided to you by our professional engineers and staffs teams.
3.)Materials suppliers offered ,the contact ways to different kinds of the materials and equipments of your products can be supported here, you can contact them by yourself .
4) After-sales services, engineers available to service machinery overseas; besides, the videos and document of solution will be sent at once.
5) The full and specific set of the subject for your project will be offered for you by free after we get touch with you.
6)12 Months Warranty and spare parts of machine will be offered within 3 days to avoid to waste your production time.
FAQ
Q1: Are you a trading company or a manufacturer?
A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements
Q2: What's your warranty for the machine?
A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance.
Q3: What's your Delivery Time?
A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season.
Q4: Where is your factory? How can visit you?
A4: Our factory is next to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or Changping Railway(Bus) station.
Q5: Why choose Jieyang Machinery Co., Ltd.?
A5: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service.
