Fabricado En China Ck6163D/Ck6180d CNC Lathe (MIDDLE LEVEL) CNC Lathe Machine

Product Description

Product Description

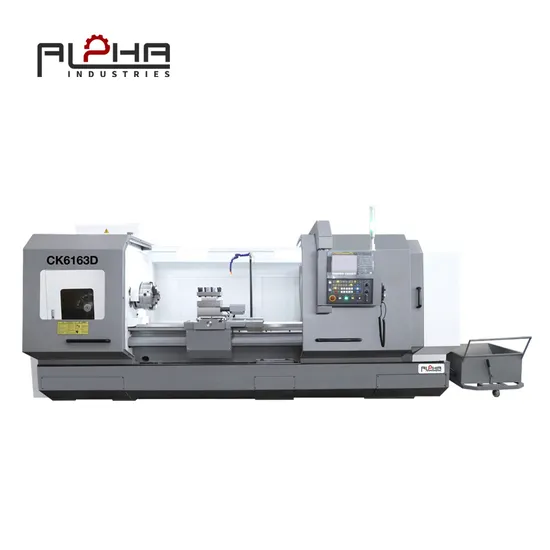

Fabricado En China CK6163D/CK6180D CNC LATHE (MIDDLE LEVEL) CNC LATHE Machine

Product Parameters

Basic Info.
Model NO.	CK6163D/CK6180D		Guide Rail	/
Tool Holder	/		Power Source	Electric
Controlling Mode	CNC		Automatic Grade	Automatic
Setting Mode	/		Precision	High Precision
Certification	CE,ISO 9001		Condition	New
Trademark	Alpha industries		Origin	China
Production Capacity	100 Sets/Year

Model		CK6163D	CK6180D
Machining	Max.cutting dia.fordisc parts	Φ630mm	φ800mm
	Max.cutting dia.foraxle parts	φ360mm	φ500mm
	Width of bed	560mm	560mm
	Max.workpiecelength	1000/1500/2000/3000/4000mm	1000/1500/2000/3000/4000mm
	Max.turning length	900/1400/1850/2850/3850 mm	900/1400/1850/2850/3850 mm
Principal axis	Spindle nose	D11	D11
	Spindle bore	φ104 mm	φ104 mm
	Taper ofspindle hole	Metric φ1201:20	Metric φ1201:20
	Steps of spindle speed	4 ranges(stepless in each)	4 ranges (stepless in each)
	Range of spindle speed	40~105,80~205,195~500,385~1000rpm	40~105,80~205,195~500,385~1000rpm
Feed	Rapid feed for Axis Z	10m/min	10m/min
	Rapid feed for Axis X	8m/min	8m/min
Travel	Max travel of Axis Z	1000/1500/2000/3000/4000mm	1000/1500/2000/3000/4000mm
	Max travel of Axis X	440mm	500mm
Tool post	Tool post stations	4-Stations	4-Stations
	Tool cross section	40×40mm	40×40mm
Tailstock	Externaldiameter	φ100mm	φ100mm
	Taper of tailstock sleeve	MT.No.6	MT.No.6
	Max travel of tailstock sleeve	230mm	230mm
Other	Min.input	0.001mm	0.001mm
	Power of main motor	11KW	11KW
	Power of cooling pump	370W	370W
	Overall dimensions (L×W×H)	(3200/3700/4200/5200/6200)×1660×1820mm	(3200/3700/4200/5200/6200)×1660×1820mm
	Netweight	5080/5380/5680/6280/7400KG	5280/5580/5880/6480/7600KG
Optional	CNC system	*	*
	Tool post	*	*
	Chuck	*	*
	Spindle	o	o
	Tailstock	*	*
	Steady rest	*	*

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
