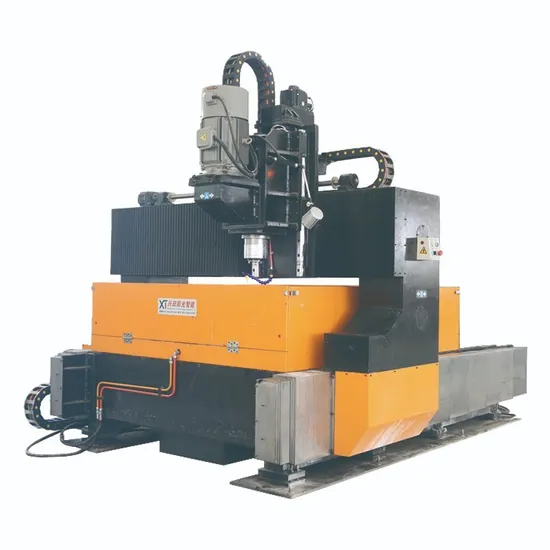

High Speed Plate Drilling Machine CNC Tapping Machine

Product Description

Introduction of Machine
High speed metal plate CNC drilling machine is mainly composed of machine bed worktable, Gantry-moving frame, CNC vertical ram type drilling spindle head, automatic chip conveyor and circulating cooling device, hydraulic system, pneumatic system, electrical system, automatic lubrication system, etc. It has the characteristics of high precision, high efficiency, high rigidity, high reliability, etc.
The machine is a gantry moving CNC drilling machine, which is mainly used for high-efficiency drilling of flanges, discs, ring types, and tube sheet parts. It can drill through holes, drill blind holes, and step holes on simple materials and composite materials. And other functions, using hard alloy drill bit internal cooling high-speed drilling or high-speed steel twist drill external cooling drilling.
The machining process of the machine tool is digitally controlled and the operation is veryconvenient. It can realize automation, high precision, multiple varieties and mass production.

Commodity of Main Accessories	Picture	Detail description
Machine Bed Worktable		Application: The machine bed frame is made of steel plate welded structure, and the stress is removed by tempering heat treatment, and the accuracy is stable. The bed is installed on the foundation through anchor bolts. Two linear ball guide rails with high load-bearing capacity are mounted on the plane parallel to the bed, and a high-precision ball screw is mounted on each side of the bed. A movable numerical control sliding table is installed on the guide rail slider. The longitudinal movement of the CNC sliding table is driven by two AC servo motors for longitudinal movement.
Gantry-moving frame		The gantry adopts steel plate welded structure, and the stress is removed by tempering heat treatment. The two outriggers are respectively installed on the numerical control sliding table of the bed, and move longitudinally along with the numerical control sliding table. Two ball linear guides are installed transversely in front of the cross beam of the gantry, and a precision ball screw is installed in the middle of the linear guides. The ball screw is equipped with a horizontally movable CNC slide. The CNC sliding plate drives the screw nut of the ball screw through an AC servo motor to realize lateral movement (X axis).
CNC vertical ram type drilling spindle head		On the CNC slide in front of the gantry-moving frame, there are two ball linear guides and one ball screw, on which is equipped with a ram-type power head that can move vertically. The power head is driven by the screw nut of the ball screw with a brake AC servo motor for verticalmovement (Z axis). A balancing oil cylinder is installed on both sides of the power head box to balance and stabilize the vertical movement of the power head. The ram-type power head box is made of high-quality gray iron casting, and the stress is removed by tempering heat treatment. The power head spindle adopts Taiwan key high-precision high-speed internal cooling spindle. The spindle taper hole BT50 has a butterfly spring automatic tool broaching mechanism, and a hydraulic (air) cylinder loosens the tool, making it very convenient to change the tool. With center water outlet and pneumatic chip blowing function. Spindle rotation adopts Jianchun spindle special servo motor to drive the spindle through a timing belt, 1-2.5, low speed and large torque, which can withstand heavy load drilling.
Y axis moving unit		Transmission mode: precision screw transmission. Y axis moving unit Protection measures: sheet metal cover to prevent the servo motor from dust pollution.
X axis moving unit		Transmission mode: precision screw transmission. X axis moving unit Protection measures: sheet metal cover to prevent the servo motor from dust pollution. The Y-axis of the machine is equipped with a stainless steel protective cover, and both sides of the X-axis are equipped with a flexible protective cover. Waterproof baffles are installed around the workbench.
CNC electrical cabinet		The electrical cabinet is installed at the front left of the machine. The electrical cabinet is equipped with circuit breakers, power supplies, servo transformers, control transformers, servo motor drives, spindle motor inverters, and some low-voltage electrical appliances required by the equipment. The CNC system of this machine tool is made by YOKOGAWA, with electronic handwheel, which is powerful and easy to operate. Equipped with a portable computer and RS232 interface. With processing preview and review functions, the operation interface has man-machine dialogue, error compensation, automatic alarm functions, and can realize CAD/CAM automatic programming.
Hydraulic System		This machine is equipped with a hydraulic system to complete the hydraulic balance of the vertical ram and the hydraulic tool loosening of the spindle. (And choose hydraulic clamping manipulator according to customer requirements)

Plat Drilling Machine Main Parameters

Item	Model		Unit	PMZ2016H
Max working size	Length x width		Mm	2000×1600mm(Maximum)
	Overlay thickness		Mm	100
Drilling spindle	Number of spindle		Pcs	1
	Morse taper of spindle			BT50 Taper hole
	Variable speed method			Inverter infinitely variable speed
	Speed of spindle		R/min	30-3000
	Stroke length of vertical ram drilling head		Mm	350
	Drilling diameter		Mm	Φ12-Φ50
	Spindle motor power		KW	15.0 KW
	Servo motor feeding power		KW	2.0 KW
Workpiece hydraulic clamping	Hydraulic pump pressure/flow		Mpa/L/Min	6.5MPa/22L/min
	Hydraulic pump motor power		KW	2.2 KW
	Hydraulic clamp clamping force		KN	7.5 KN
	Number of clamping cylinders		Pcs	12 Pcs
Electric control	Y axis	Y axis travelling	Mm	2000Mm
		Y axis moving speed	M/min	0-10 M/min
		Y axis servo motor power	KW	2.0 KW * 2
	X axis	X axis travelling	Mm	1600Mm
		X axis moving speed	M/min	0-10 M/min
		X axis servo motor power	KW	1.5kw
	Z axis	Vertical ram feed motion (Z axis) stroke length	Mm	180mm
		Z axis moving speed	M/min	0-5.0 M/min
		Z axis servo motor power	KW	2KW with brake
Drilling precision	Positioning Precision in "X" and "Y" axis		Mm	≤0.08mm/Entire Journey
	Re-positioning precision in "X" and "Y" axis		Mm	≤0.04mm/Entire Journey

Pneumatic system	Compressed air storage pressure	MPa	≥0.5MPa
Chip removal and cooling System	Chip conveyor type		Steel flat chain
	Number of chip conveyors	PCS	1 Pcs
	Chip removal speed	M/min	1 M/min
	Chip conveyor motor power	KW	0.75 KW
	Cooling pump motor power	KW	0.25 KW
	Cooling box volume	L	200 L
Automatic lubrication System	Lubrication pressure	MPa	2.0 MPa
	Lubrication point oil volume	ML	0.1 ML
	Lubrication Cycle	Minutes	6-10 min
Electrical System	CNC Controller System		YOKOGAWA
	Number of CNC Axis		3 Axis
Machine size	LxWxH	Mm	5000x3000x2900mm
Total motor power		KW	About 25KW
Machine Bed weight(appx)		T	More than 8.5 Tons
Shipping with Container			1 x40 ft Container
