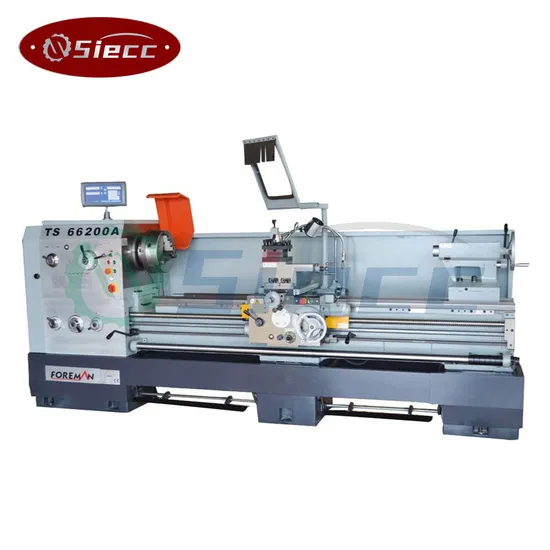

New Parallel Gear Head Metal Manual Bench Lathe Machine
| US$5,000.00 | 1 Piece (MOQ) |
Basic Info.
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Transport Package
Container Loaded
Specification
HECT
Trademark
SIECC
Origin
Jiangsu/China
Production Capacity
1000 Sets/Year
Product Description
| PRODUCT FEATURES | |||
| *THE SURFACE OF THE BEDWAYS IS SUPERSONIC FREQUENCY HARDENED. *GEARS PRECISELY GROUND TO REDUCE NOISE. *SPINDLE BORE 80MM. *NO NEED FOR CHANGE GEAR.THE MACHINE CAN TRUN 66 KINDS OF METRIC, INCH, MODULE AND D.P. THREADS. *INTEGRAL CASTING BASE CAN BE OPTIONAL. | |||
| TECHNICAL PARAMETERS | |||
| Model | LC500C/1500MM | ||
| CAPACITY | Max.swing over bed | 500mm | |
| Max.swing over cross slide | 325mm | ||
| Max.swing over gap | 630mm | ||
| Effective length of gap | 260mm | ||
| Center Distance | 1500mm | ||
| Bed Width | 330mm | ||
| HEADSTOCK | Spindle hole | 80mm | |
| Spindle nose | ISO-D8 | ||
| Spindle taper | Metric 85mm | ||
| Spindle speed(Number) | (15steps)24-1600rpm | ||
| FEEDS AND THREADS | Max.travel of top slide | 130mm | |
| Max.travel of cross slide | 300mm | ||
| Max.size of toolshank | 25*25m2 | ||
| Longitudinal feeds range | 66kinds 0.072-4.038mm/rev | ||
| Cross feeds range | 66kinds 0.036-2.019mm/rev | ||
| Metric threads range | 66kinds 0.5-28mm | ||
| Inch threads range | 66kinds 1-56inch | ||
| Moudle threads range | 33kinds 0.5-3.5mπ | ||
| Diametral threads range | 33kinds 8-56D.P | ||
| TAILSTOCK | Dia.of tailstock sleeve | 65mm | |
| Taper of tailstock sleeve | MT5 | ||
| Max.travel of tailstock | 135mm | ||
| MOTOR | Main drive motor | 7.5KW | |
| Rapid traverse motor | 250W | ||
| Coolant pump motor | 90W | ||
| PACKING | L*W*H | 292*112*180cm | |
| WEIGHT | N.W/G.W | 1850/2100kgs | |
| ACCESSORIES | |||
| STANDARD ACCESSORIES | |||
| PART:INSTALL ON THE LATHE | |||
| 3-jaw chuck(Φ250mm) | |||
| Steady rest & follow rest | |||
| Thread-cutting dial | |||
| Longitudinal touch stop | |||
| Work lamp | |||
| Coolant system | |||
| Full-length splash guard | |||
| Foot brake and brake ribbon | |||
| PART:INSIDE THE PACKAGE WITH THE LATHE | |||
| 4-jaw chuck(Φ320mm) | |||
| Face plate | |||
| Paddings | |||
| Change gears | |||
| Dead centre and centre sleeve | |||
| Oil gun | |||
| One whole set spanner | |||
| Operation manual | |||
| OPTIONAL ACCESSORIES | |||
| Live centre(MT5) | |||
| Rapid travel | |||
| USA type Quick change tool post | |||
| Europe or Italy type Quick change tool post | |||
| Drive plate | |||
| 2axis Digital readouts(SINO) | |||
| 3axis Digital readouts(SINO) | |||
| CE-conformity(Chuck guard,Toolpost guard and leadscrew guard) | |||
| Magnetoelectrical brake | |||
| Drill chuck set | |||
| Taper cutting function | |||
| Cutting tool holders set(7pcs or 9pcs) | |||
