Smart Mini Power Single Phase Energy Meter Electricity Electric

Product Description

Product Description
Smart Mini Power Single Phase Energy Meter Electricity Electric
The DDS226 type single-phase electronic watt-hour meter adopt exclusive use LSI,the device typifying new periphery component, simple structure, high reliability, low power consumption, long life etc Product Detail

Rated current (A)	1.5(6), 2.5(10), 5(20), 5(30), 10(40) 10(60), 15(60), 20(80), 30(100)
Rated voltage (V)	220 or 240
Rated Frequency (Hz)	50 or 60
Accuracy Class	Class 1 or class 2
Product Keywords	1 phase 2 wire electricity meter

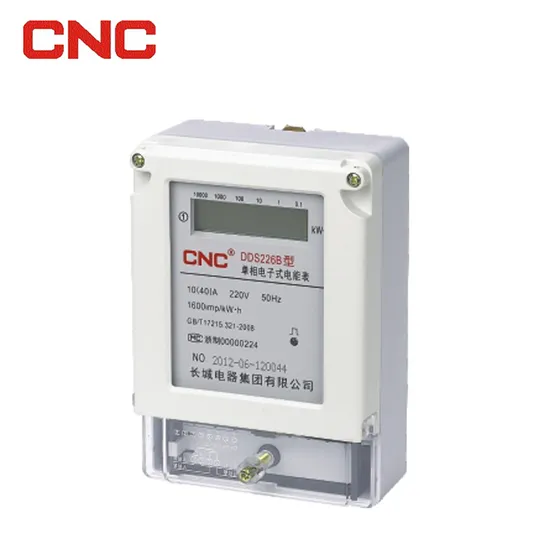

DDS226 Single-phase Electronic Energy Meter
General
The DDS226 type single-phase electronic watt-hour meter adopt exclusive useLSI,the device typifying new periphery component, simple structure,
high reliability,low power consumption, long life etc, is suitable for the single-phase AC activeelectric energy with rated frequency of 50Hz.
Function and features
1.Measure active electric energy, no need of calibration for long-term operation;
2.Adopt dedication meter age chip ADE7755;
3.Adopt lasted electricity dedication integrated circuit including digital multiplieroverseas, greatly improved dynamic working range of Meter, making 1 multipleactual overload;
4.Have good mistake linearity in the range of 5%Ib~Imax;
5.Few periphery component, simple structure, low power consumption;
6.Adopt high reliability and long life electronic component, so the meter assumefeatures of high reliability and long life. *Way of display: register, LCD, digital tube. *Remote interruption of power supply function. *Output interface RS485
