Ck61125 Heavy Duty CNC Lathe Machine with Large Capacity
Basic Info.
Model NO.
CK61125
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Joint Drive
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Maximum Swing Diameter Over Bed
1250mm
Maximum Machining Length
1000/1500/2000/3000/4000
CNC System
GSK Siemens Fanuc Syntec
Turret
4 Station Turret
X Travel
650
Z Travel
1250/1750/2250/3250/4250
Spindle Taper
A2-15
Main Motor
15kw
Chuck Size
400mm
Turret Type
4 Station Electric Turret
Tailstock Quill Diameters
160
Tailstock Quill Travel
130/250
Guideway Width
600/750
Spindle Speed Range
10-50,40-120,100-300
Tool Shank Size
40*40
Transport Package
Plywood Package
Specification
4500*2250*2300mm
Trademark
WOJIE
Origin
Shandong
HS Code
8458110090
Production Capacity
500/Year
Packaging & Delivery
Package Size
450.00cm * 225.00cm * 230.00cm
Package Gross Weight
10000.000kg
Product Description
Product DescriptionProduct Parameters
| ITEMS | UNIT | CK61125x5000 CNC Lathe |
| Swing over bed | mm | Φ1250 |
| Swing over cross slide | mm | Φ850 |
| Distance between centers | mm | 1000/1500/3000/5000/6000 |
| Width of bed way | mm | 755 |
| Max. load capacity | T | 6 |
| Spindle bore | mm | Φ130 |
| Spindle bore taper | - | MetricΦ140, MT#6 |
| Spindle nose type | - | A2-15 |
| Spindle speed steps | - | VF.4steps |
| Spindle speed range | rpm | 4-300 |
| Chuck size | mm | Φ1000 |
| Chuck type | - | 4-jaw manual |
| Turret type | - | NC turret 4 position |
| Tool shank size | mm | 40x40 |
| X axis travel | mm | 620 |
| Z axis travel | mm | 1000/1500/3000/4750/6000 |
| X axis rapid traverse speed | mm/min | 4000 |
| Z axis rapid traverse speed | mm/min | 6000 |
| Tailstock quill diameter | mm | Φ160 |
| Tailstock quill taper | - | MT#6 |
| Tailstock quill travel | mm | 300 |
| Main spindle motor | kW | VF.22 |
| Coolant pump motor | kW | 0.25 |
| Width x Height | mm | 2250x2300 |
| Length | mm | 4500/5000/6500/8500/9500 |
| Net weight | T | 10.8/11.2/12.6/14.2/15.2 |
Detailed Photos

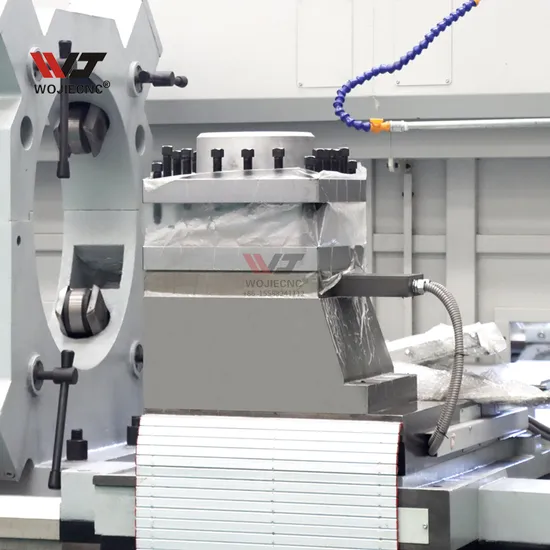

| ChuckΦ1000/4-jaw manual | NC turret 4 position |
| Control system Standard configuration: GSK Optional configuration: Siemens/ Fanuc/ Syntec/ Mitsubisin | Manual tailstock |
| Centre rest 150-450mm (3 meters and above including 3 meters standard configuration) | Lubrication system The centralized lubrication system can be used in a timely,quantitative,convenient is conductive to increasing the service life of the machine tool. |
Optional accessory
| Auto chip conveyor and chip bucket | 8-station turret | Oil Mist Collection |
| SERVO automatic feeder | Details catcher | Oil-water separation (Oil skimmer) |
Company Profile
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
More than 60,000m² of the factory with more than 150 workers. Strictly QC control with more than 24 steps testing processes 30+ years CNC machine manufacture experience factory 24 hours online service at any time Trade with customers in more than 150 countries around the word. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect. Support ODM OEM. Warranty time is 24 months
FAQ
1. What are the payment terms?
A: T/T, 30% down payment when ordering, 70% balance before shipment; irrevocable L/C at sight.
After receiving the advance payment, we will start production. After the machine is ready, we will take pictures and videos for you to inspect the machine. After paying the balance, we will send the machine to the designated location according to your instructions.
2. What does your company mainly produce?
A: Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC milling machines, CNC lathes for machining centers, ordinary milling machines, ordinary lathes, hydraulic presses, etc.
3. When is the delivery time?
A: If the machine you ordered is a standard machine, we can prepare the machine within 15 days. If it is some special machines, the delivery time is about 30 days. Some machine models will be in stock, please consult the salesperson for details.
4. What are your trade terms?
A: FOB, CFR, CIF, DDP, DAP, FCA, etc.
5. What is your minimum order quantity and warranty period?
A: The minimum order quantity is 1 set, and the warranty period is 2 years. But we will provide lifetime service for the machine.
6. What is the packaging of the machine?
A: The machine is placed on a metal pallet, covered with a moisture-proof coat inside, and wrapped with plywood all around.
