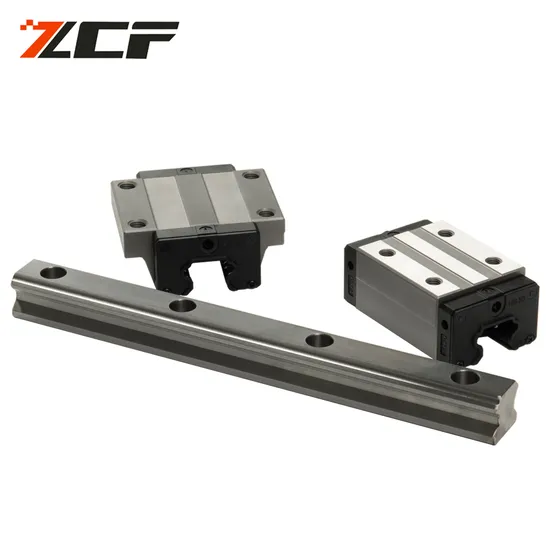

High Grade Easy Mounting Low Profile Linear Guide
| US$2.00-20.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CEH-35CA
Flange Shape
W/O
Shape
Straight
Series
Ceh
Material
High-Carbon Steel
Type
Universal
Size
35
Rail Height
27.5mm
Rail Width
34mm
Max Length
4000 mm
Assembly Height
48 mm
Block Width
70 mm
Block Length
108 mm
Dynamic Load(C)
33.35 Kn
Static Load(C0)
64.84 Kn
Block Weight
1.13 Kg
Rail Weight
6.14 Kg/M
Pitch-Row
80 mm
Rail Material
S55c
Flange
Without
Plating
Optional
Transport Package
Wooden Case
Specification
4000 mm
Trademark
ZCF
Origin
China
HS Code
8466910000
Production Capacity
200001 Meter Per Year
Product Description
Product Description ZCF CEH SERIES - Linear guide of good quality and good accuracy.Specification
Detailed Photos
Accuracy definition
ACCURACY LEVEL 1.THE ACCURACY OF CE SERIES LINEAR GUIDES CAN BE DIVIDED INTO FIVE LEVELS: COMMON, HIGH, PRECISION, SUPER-PRECISION AND ULTRA-PRECISION. CUSTOMERS CAN CHOOSE THE ACCURACY LEVEL ACCORDING TO THE ACCURACY REQUIREMENT OF EQUIPMENT. 2. ACCURACY OF NON-INTERCHANGEABLE LINEAR GUIDE:
3. ACCURACY OF NON-INTERCHANGEABLE LINEAR GUIDE:
| MODEL | CE - 15, 20 unit : mm | ||||
| ACCURACY LEVEL | COMMON | HIGH | PRECISION | HIGH-PRECISION | ULTRA-PRECISION |
| (C) | (H) | (P) | (SP) | (UP) | |
| TOLERANCE OF H | ± 0.1 | ± 0.03 | 0- 0.03 | 0- 0.015 | 0- 0.008 |
| TOLERANCE OF N | ± 0.1 | ± 0.03 | 0- 0.03 | 0- 0.015 | 0- 0.008 |
| TOLERANCE OF MUTUAL H | 0.02 | 0.01 | 0.006 | 0.004 | 0.003 |
| TOLERANCE OF MUTUAL N | 0.02 | 0.01 | 0.006 | 0.004 | 0.003 |
| MOTION PARALLELISM OF C ON A | MOTION ACURACY | ||||
| MOTION PARALLELISM OF D ON B | MOTION ACURACY | ||||
| MODEL | CE - 25,30 unit : mm | ||||
| ACCURACY LEVEL | COMMON | HIGH | PRECISION | HIGH-PRECISION | ULTRA-PRECISION |
| (C) | (H) | (P) | (SP) | (UP) | |
| TOLERANCE OF H | ± 0.1 | ± 0.04 | 0- 0.04 | 0- 0.02 | 0- 0.01 |
| TOLERANCE OF N | ± 0.1 | ± 0.04 | 0- 0.04 | 0- 0.02 | 0- 0.01 |
| TOLERANCE OF MUTUAL H | 0.02 | 0.015 | 0.007 | 0.005 | 0.003 |
| TOLERANCE OF MUTUAL N | 0.03 | 0.015 | 0.007 | 0.005 | 0.003 |
| MOTION PARALLELISM OF C ON A | MOTION ACURACY | ||||
| MOTION PARALLELISM OF D ON B | MOTION ACURACY | ||||
4. MOTION ACCURACY CHART
| RAIL LENGTH (mm) | ACCURACY LEVEL (µm) | |||||
| C | H | P | SP | UP | ||
| ~ | 100 | 12 | 7 | 3 | 2 | 2 |
| 100 ~ | 200 | 14 | 9 | 4 | 2 | 2 |
| 200 ~ | 300 | 15 | 10 | 5 | 3 | 2 |
| 300 ~ | 500 | 17 | 12 | 6 | 3 | 2 |
| 500 ~ | 700 | 20 | 13 | 7 | 4 | 2 |
| 700 ~ | 900 | 22 | 15 | 8 | 5 | 3 |
| 900 ~ | 1,100 | 24 | 16 | 9 | 6 | 3 |
| 1,100 ~ | 1,500 | 26 | 18 | 11 | 7 | 4 |
| 1,500 ~ | 1,900 | 28 | 20 | 13 | 8 | 4 |
| 1,900 ~ | 2,500 | 31 | 22 | 15 | 10 | 5 |
| 2,500 ~ | 3,100 | 33 | 25 | 18 | 11 | 6 |
| 3,100 ~ | 3,600 | 36 | 27 | 20 | 14 | 7 |
| 3,600 ~ 4,000 | 37 | 28 | 21 | 15 | 7 | |
Company Profile Jiangsu ZCF Precision Technology Co.,Ltd.
is a professional manufacturer of linear guide, linear module and ball screw etc.she is located in Suzhou city,Jiangsu,China.The production base covers 33333 square meters and holds a building area of 16000 square meters at present. with over 10 years' effort of our whole team. and also trust and support from our respected customers. We are so lucky to become one famous brand in China, who make international standard products.we aim to serve customers world-widely.
