Price Favorable Complete Production Line10000-15000bph Orange Fruit Apple Sport Drinks Beverage Automatic Rotary Plastic Pet Water Filling Packaging Machine

Product Description

Price Favorable Complete Production Line10000-15000bph Orange Fruit Apple Sport Drinks Beverage Automatic Rotary Plastic PET Water Filling Packaging Machine

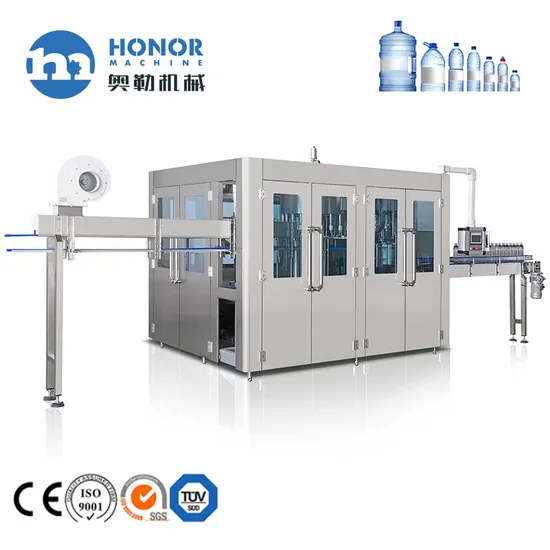

CGF series water filling machine
Product introduction: This machine is mainly used for the filling of pure water, mineral water and other non-gas and sugar-free beverages in plastic bottles. It is an integrated equipment for washing, filling and sealing.
Capability character: it adopts hanging type air conveyor to make change bottle model more convenient, faster and cleaner. the main machine adopts advanced PLC control technology, the key electric elements adopt international famous products or according to customer's customized.
Technical features:
1)It is adopted that direct connection between air conveyor and inlet starwheel instead of screw and conveyor chains, which is easier for bottle changing.
2)There is no need to adjust the height of equipment through neck holding tech for bottle transportation.And what is only to change some spare parts.
3)High speed filling line is of clamp transferring technology.Bottle shapes are more varied, and the working table inside the machine is more laconic.
4)By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier.
5)Specially designed stainless steel bottle clamp dose not contact the thread parts of the bottle neck, avoiding the second contamination.
6)High speed and large flow filling valve assures the high filling speed and exact fluid level.
7)Parts contact with the liquid are all of excellent stainless steel or food level plastic.The electric system is of international brand and achieves the national food sanitary standard.
8)The bottle-out starwheel is of screwdown shape.When bottle size is changed, there is no need to adjust the transferring chain's height.
technical parameter:

Model	CGF8-8-3	CGF14-12-5	CGF18-18-6	CGF24-24-8	CGF32-32-10	CGF40-40-10
Capacity(500ml/bottle/h	1000-2000	2000-4000	4000-8000	8000-12000	12000-15000	15000-18000
Suitable bottle shape	Round bottle or square bottle
Bottle diameter(mm)	¢49-¢116
Bottle height(mm)	160-320
Compressed air pressure(MPa)	0.2-0.8
Washing medium	Pure water
Washing water pressure(MPa)	>0.06MPa ≤0.2MPa
Total power(kw)	3.8	4.5	4.8	5.5	7	8.2
Overall dimensions(mm)	2200*1600*1800	2400*1880*2000	2800*2200*2300	3050*2400*2300	3800*2600*2500	4000*3150*2500
Weight(kg)	2880	3050	4300	6400	7450	8550

Honor Machine provides the wide range of liquid filling capabilities and industry experience while delivering the lower cost of ownership for our customers. We are not only a filling equipment manufacturer, but also design and build factories, equipment layout, circuit layout and equipment operation schemes. Our equipment is designed carefully, easy to use and easy to manage. Whether you need a machine or a complete filling and packaging system, we have rich experience to ensure the successful completion of your project. Since 2008, Honor Machine has been one of the leading suppliers of packaging technology. Located in the beautiful city of Zhangjiagang, Jiangsu Province, a new port city famous for professional industrial city. We are committed to:

Q1.How to tell us your enquiry?A1:You can contact us by email, phone call, Instant Messenger (Trademanager, WhatsApp, Skype) and let us know your requirement. Q2.Where is your factory?A2:Our Factory is located in Zhangjiagang City, it is very near to Shanghai and Wuxi (airplame and train both available). If you arrive at Shanghai or Wuxi, we can pick you up to visit our factory. Q3. Do you have any technical supports with your Beverage Filling Machines?A3:Yes, We have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas. Q4.What's your guarantee or the warranty of the quality if we buy your machines?A4:We offer you high quality machines with 2 years guarantee and supply life-long technical support. We Warmly Welcome Customers All Over The World To Our Company If You Have Interests In Our Products. Please Contact Us If You Have Any Problems.You can contact us by email, phone call, Instant Messenger (Trademanager, WhatsApp, Skype) and let us know your requirement.
