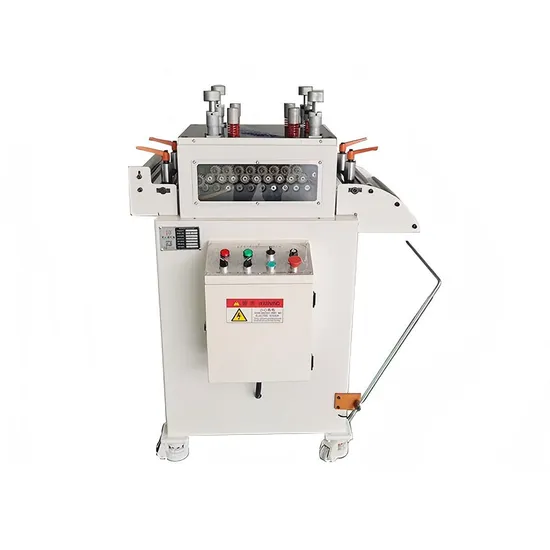

High Precision Sheet Metal Straightener Roller Straightening Machine Flatter Machine

Product Description

Our Advantages
About this product1. The material straightening machine is suitable for leveling medium plate materials with a thickness of 0.5-3.0mm. The leveling roller is ¢60mm, with an upper 3 and lower 4 arrangement, which is suitable for the continuous production of stamping parts in hardware factories, electronic factories, and parts factories.
2. Roller heat treatment, hard coating and grinding can extend the service life of the roller.
3. It adopts simple electrical box control, easy machine operation, simple structure, and economical.
4. It adopts L-shaped induction frame induction contact control, which is safe, reliable and simple.
5. Handwheel adjustment, scale reference, intuitive and easy to understand, simple to operate.
6. After the material is corrected, it is smooth and smooth without indentation, and does not damage the surface of the material.
7. The control adopts 24V induction current, which is safe and stable. At the same time, the delayed start time can be adjusted according to needs to avoid frequent starting of the motor and delay the service life.
8. This machine can be used alone, and can be used with MT type and MTC type at the same time. It has good effect, low failure rate and easy maintenance.
9. According to the need of discharging speed, a stepless speed change device can be used.
Product Description
High-quality material metal straightening machine
Product Parameters

Model	LJA CLH-200	LJA CLH-300	LJA CLH-400	LJA CLH-500	LJA CLH-600
Material width	200mm	300mm	400mm	500mm	600mm
Material thickness	0.5-3.0mm	0.5-3.0mm	0.5-3.0mm	0.5-3.0mm	0.5-3.0mm
Feeding length	0-9999.99m
Leveling roller	¢52*7(up3/down4)			¢60*7(up3/down4)
Motor	1hp	2hp	2hp	3hp	3hp
Feed speed	16m/min	16m/min	16m/min	16m/min	16m/min
Leveling adjustment	4 points independent adjustment
Discharging direction	Left→Right
Voltage	AC three phase 220V/380V
