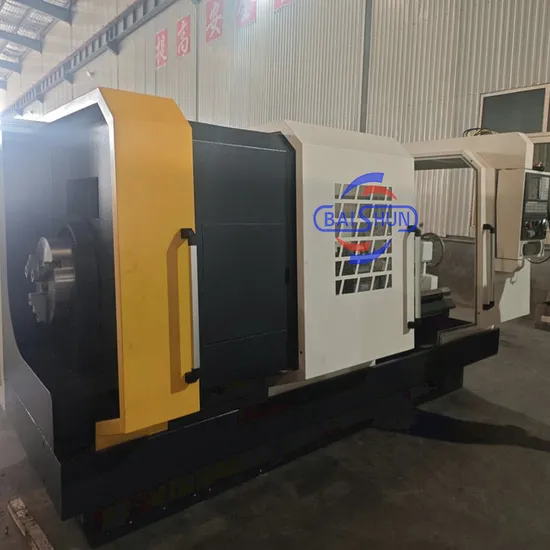

Gas Oil Pipe Screw Maker Oil Country CNC Pipe Threading Lathe Machine

Product Description

Product Description
Gas Oil Pipe Screw Maker Oil Country CNC Pipe Threading Lathe Machine
CNC pipe threading machine is a high efficiency, high precision two coordinate continuous control CNC machine independently researched and developed by our company according to the development needs of petroleum industry. The machine has high power, good rigidity, can cut straight, oblique, arc, male, inch thread, and has a variety of functions such as tip radius compensation. The machine features high rigidity and high power. It is a high precision and high efficiency pipe thread machining machine. The machine adopts a high transmission ratio gearbox and a high power AC main drive motor, which enables the spindle to achieve up to 3080Nm of output torque. After finishing the outer thread, machining the inner thread directly. Improve the processing efficiency.
The machine can be used for rough machining and finishing machining of mechanical parts, especially suitable for petroleum, mining, machinery and other industries, for high-efficiency, high-volume and high-precision processing of rotary parts.
Product Parameters

Model		Unit	QK1325	QK1327	QK1332	QK1335	QK1353	QK1363
CNC System		/	Standard configuration:GSK980TDi Optional: FANUC; SIMENS;KND;etc.
Max dia.swing over bed		mm	800	800	800	1000	1250	1400
Max dia.swing over cross slide		mm	480	480	480	610	860	950
Maxlength of work-piece		mm	1500	1500	1500	1500	1500	1500
Pipe threading range		mm	70-250	70-275	80-320	150-350	350-525	450-625
Width of bed		mm	600/650	755	755	755	755	755
Spindle bore		mm	255	280	325	360	540	640
Spindle center height		mm	400	400	400	500	625	700
Power of spindle motor		mm	11	15	15	22	30	30
Mode of spindle speed		/	Two gears , step less in gears
Range of spindle speed		r/min	(L):15-100 (H):100-350	(L):20-100 (H):100-300	(L):20-130 (H):100-300	(L):30-130 (H):65-260	(L):20-80 (H):55-220	(L):15-65 (H):65-120
Max.traverse of X/Z		mm	X:420 Z:1250	X:420 Z:1250	X:420 Z:1250	X:450 Z:1250	X:650 Z:1250	X:750 Z:1250
X/Z rapid traverse		mm/min	4000/5000	4000/5000	4000/5000	4000/5000	4000/5000	4000/5000
Tailstock quill	Diameter	mm	100	100	100	160	160/260	160/260
	Travel	mm	250	250	250	300	300	300
	Taper		Morse NO.6	Morse NO.6	Morse NO.6	Morse NO.6	Morse NO.6	Morse NO.6
Turret	Model		HAK21240	HAK21300	SLD170A04N	SLD170A04N	SLD170A04N	SLD170A04N
	No.of tool stations		Vertical four-station
	Dimension of tool	mm	32x32	32x32	32x32	32x32	32x32	32x32
	Turret indexing time	s	2.6	2.6	5.6	5.6	5.6	5.6
Chuck			K11-500 three jaw chuck	K72-780 four jaw chuck	K72-780 four jaw chuck	K66-780 four jaw electric chuck	K66-780 four jaw electric chuck	K66-780 four jaw electric chuck
Positioning accuracy		mm	0.020	0.020	0.020	0.020	0.040	0.040
Repositioning accuracy		mm	0.01	0.01	0.01	0.01	0.02	0.02
Machine weight		T	6.5/7.2	8	10	10	18	19

Detailed Photos
BIG Spindle Bore, can meet different working requirement!
From the smallest 135mm to 640mm, and also we can customize based on Customer's requirements.

Can equip with Single table/Double table
Four Chuck Table/ Three chuck table
Pneumatic type / Hydraulic type

Strong Tool Turrect
Quick change tool post;
4/6/8/12 position tool turrect for optional.
FANUC; SIEMENS; KND; GSK and other controller are available.
Packaging & Shipping
FAQ
Q: Why Choose Us?
1). We are manufacturer with own factory for many years with CE Certification
2). With professional design and sales team, we can serve you perfect solution with competitive direct factory price.
3). Our machines are popular among customers around the world ( Brazil, Peru, Argentina, Mexico, Russia, UZ, Indonesia, India, Spain, Italy, UK etc).
Q: What Is Our Service?
1). Pre-Sale Service
According to the customers' special requirements,we provide the most suitable project design, process design and the purchase program. Guide customers to choose the best and economical plant, recover investment within short time.
2). Sales Service
You are welcome to visit our factory to test the machine. And we will customize the equipment strictly according to your special requirements and arrange the timely delivery.
3). After-Sale Service
We will provide one year warranty for our machine.According to your need,we will dispatch our engineers to your factory to guide the installation,commissioning and training your workers.
Q: How About The Motor?
A: We use domestic Chinese-famous motors,but you can choose Siemens or other brand motor as your requirement.
Q: How long does it take to make a product?
A: It depends on size and type of machine.Normally, small size machine takes around 7-30 days, larger one takes around 30-60 days.
Q: is the machine tested before shipment?
A:Yes, we provide testing videos in factory for each machine before shipment.
