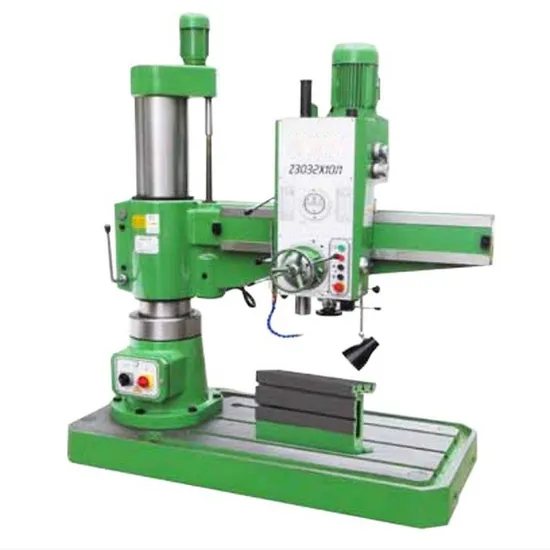

Small Radial Drilling Machine (Radial Drill Press Z3032X7P Z3032X7)

Product Description

Universal of Radial Drilling Machine (Universal drilling machine Z3032X10)
Universal of Radial Drilling Machine (Universal drilling machine Z3032X10) Features:
Radial drilling press machine can be widely used in drilling, reaming, reaming, planing plane, tapping and other processing. High quality and high performance.
1. Small size, reduce the area occupied.
2. The control system is concentrated in the spindle box, variable speed flexible, convenient, feed safety insurance.
3. The basic large-scale use of high-quality materials molding casting, after aging treatment, with high-precision machine tool processing, with high accuracy.
4. The guide surface are hardened, the spindle using nitriding treatment, to extend the service life.
5. Gear with BH carburizing technology to extend the service life.

Model	Z3032X10
Max. Drilling capacity(mm)	Cast iron 32 /steel 27
Distance from spindle nose to table surface (mm)	220~980
Distance between spindle axis and column surface (mm)	260-880
Spindle taper	MT4
Spindle travel	120
Spindle speeds range(mm)	108-1000
Spindle speeds series	6
Rocker rotary angle	360
Motor power (kw)	1.5/2.2
Movements motor power (kw)	0.75
G.W(Kg)	900
Overall dimension(mm)	1250x705x2020

Universal of Radial Drilling Machine (Universal drilling machine Z3032X10) Details:
Radial Drilling Machine In Workshop
Universal of Radial Drilling Machine (Universal drilling machine Z3032X10) With Standard Export Package:
