Industrial Automatic PVC Fabric High Speed Performance Fast Acting Rapid Rise Overhead Quick Roll up or Roller Shutter Door for Warehouse Exterior or Interior

Product Description

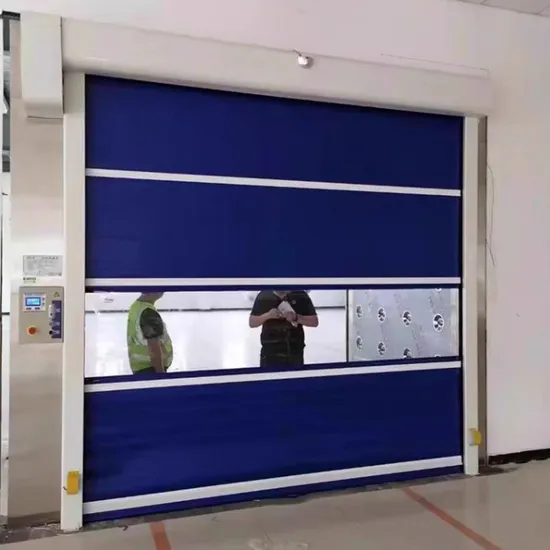

PVC Fabric High Speed Rolling Doors or Rapid Doors:
Standard type,mostly used, in all different industries. With aluminum bar to improve its wind resistance,fit for both outside
and inside use.
3-D Structure Drawing of KENVO High Speed Door/Rapid Door:
How To Operate KENVO High Speed Door/Rapid Door:
Safety Device of KENVO High Speed Door/Rapid Door:
Every high speed door from KENVO has below three safety devices.

Description:
High Speed Door is widely used in modern factories and warehouses. It can run in very high speed (up to 2.5m/s)and
frequency (up to 2000 times/day), very fit for areas with heavy traffic. Air flow through the door is reduced obviously, to
protect indoor environment. Automatic running is realized with programmed control system and sensors.
Features:
1. High speed opening and closing
The running speed can reach 2m/s, 10 times as traditional roller shutter door. This obviously improves passing efficie-
ncy through it and enhances overall output.
2. High frequency operation
The operation frequency can reach more than 1000 times per day without any faults. This meets need of heavy traffic
in some areas.
3. High-level automation
Automatic radar or other devices can be equipped, realizing auto control of the door. This enhances automation level
and work efficiency.
4. Excellent safety performance
Dual protection design. Every door is equipped with safety photo sensor and proximity sensor, avoiding collision acci-
dents and protecting passing human or vehicles.
5. Effective insulation
Benefiting from fast opening and closing, it can reduce the air flow between indoor and outdoor and prevent dust fro-
m entering the room. At the same time, energy is saved by reducing thermal conduction.
6. Complying with Food-grade and GMP norm
Special design seal structure. PVC fabric is dust-proof and easy for cleaning.
7. Multiple safety protection
Safety photo sensor. When there is human or vehicle under the door, the door will stop closing and get up automatic-
ally. This will avoid accident collisions.
8. Convenient daily operation
Standard: Operation buttons of both outside and inside.
Applications:
Food factory, Pharmaceutical factory, Warehouses, Packaging industry, Chemical industry, Machinery industry,Loadi-
ng bays, Robot welding rooms, Clean rooms, Laboratory, Conveyor.
Optional Parts:

NO.	ITEM	CHOICE
1	Color	Yellow, Blue, Orange,Grey,White,Clear
2	Window	Yes/No
3	Operation	Radar sensor, Remote control, Vehicle loop detector,Pull switch
4	Frame material	Powder coated galvanized steel/304 stainless steel
5	Motor position	Right/Left
