Automatic Handkerchief Pocket Tissue Machine Production Line

Product Description

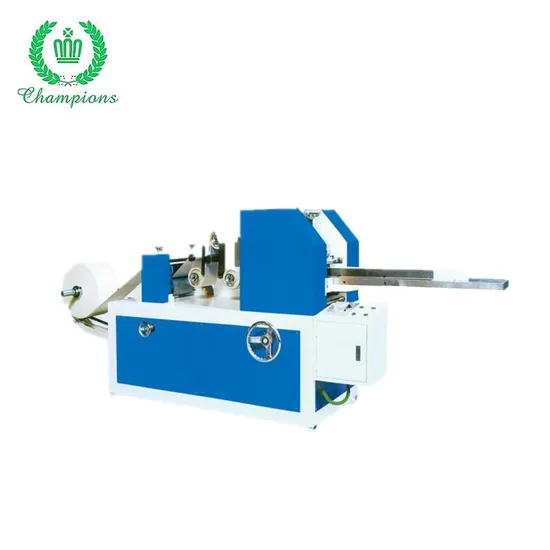

Automatic Handkerchief Pocket Tissue Machine Production Line
Automatic handkerchief production line is consists of four parts: Handkerchief Folding Machine, Separating Unit, Single Bag Packing Machine and Multiple Bags Packing Machine. Raw material from jumbo roll first through color printing unit(optional), Then embossing and folding into handkerchief. And then separated into different sets by separating unit, then go to the single bag packing and multiple bags packing. This line realizes the whole production process is automatic. It greatly improve the efficiency and reduce labor cost and easy to operate. It adopts failures tracing and alarm system, failures will be found and settle immediately, which save the lost in a maximum way. Handkerchief folding size, tissue number of each bag and multiple packing bag number all can be made according to clients' requirement. Product Description Pocket Tissue Folding Machine
1.Machine controlled by Delta PLC , HMI
2.Perfect fault detection tracking system, high precision photoelectric tracking system
3.Transmission system adopts advanced frequency control of motor speed control
4.With intelligent shard system, realizing automatic folding, reduce the cost
Automatic Pocket Tissue Single Bag Packing Machine
1.Machine controlled by PLC , HMI
2.Perfect fault detection tracking system, high precision photoelectric tracking system
3.Transmission system adopts advanced frequency control of motor speed control,
each cycle positioning is carried out by the dividing machine of precision
4.The characteristic of the antistatic technology, make the packaging more stable
performance
5.Using intelligent temperature controller, the temperature control is follow one's
inclinations
6.Paper packaging film opening for automatic punching, configuration and installation of various exterior opening automatic punching equipment
7. Production date, batch number details automatically print in color ink, and print position can be adjusted .
Automatic Pocket Tissue Bundle Packing Machine
1.Machine controlled by Simens PLC , HMI
2.Perfect fault detection tracking system, high precision photoelectric tracking system
3.Transmission system adopts advanced frequency control of motor speed control,
each cycle positioning is carried out by the dividing machine of precision
4.The automatic oil lubrication system, greatly prolong the service life of the whole
machine
5.The characteristic of the antistatic technology, make the packaging more stable
performance
6.Using intelligent temperature controller, the temperature control is follow one's
inclinations

Product Parameters 1. Poclet tissue machine

Dimension(mm)	3850L*692W*1360H
Jumbo Roll Width(mm)	180-210
Max Jumbo Roll Diameter(mm)	1500
Jumbo Roll Core Inner Ciameter(mm)	76
Finished Product Size(mm)	200\205\210
Finished Product Fold Size(mm)	(65-115)*(50-53)
Embossing Unit	Steel to Rubber, Steel to Steel(Optional)
Separating piece	8\9\10
Speed(bag/min)	70-75
Weight(KG)	1000
Power(KW)	2.2
Blower Power(KW)	5.5

2. Automatic Single Bag Packing Machine

Dimension(mm)	2840L*2650W*1720H
Packing size(mm)	(70-110)L*(50-55)W*(20-28)H
Design speed(Bag/min)	110 Bag
Stable speed(Bag/min)	90-100 Bag
Total Power(KW)	4.68
Air Pressure(MPa)	0.5-0.6(Supplied by client)
Air Consumption	2.5 m3/H
Air supply	380 V, 50 Hz (Three-phase)
Weight(KG)	1650
Packing material	CPP,PE Double-sided heat sealing film

3. Automatic Bundle Packing Machine

Dimension(mm)	2500L*3200W*1550H
Packing size(mm)	(150-330)L*(70-150)W*(20-84)H
Packing way	3*2,5*2,6*2,3*3,5*3,6*3,3*3*2
Desigh speed(Bag/min)	12 Bags
Stable speed(Bag/min)	10 Bags
Total Power(KW)	3.5
Air pressure	0.5-0.6(Supplied by client)
Air consumption	2.5 m3/H
Voltage	380V 50Hz (Three-phase)
Weight(KG)	1200
Packing Material	CPP,PE Double-sided heat sealing film

Packaging & Shipping
Company Profile
Champions Corporation is professionally manufacturing and supplying all raw materials for disposable hygiene products and also including comprehensive consulting for the hygiene machinery project.
Since 2002, we started our first production line for disposable hygiene products, through decades of development; our business includes manufacturing baby diaper, lady napkin, adult diaper and supplying all raw materials for hygiene products. We build up our reputation in domestic market and cooperate with some long-lasting customers overseas.
And for tissue paper machines, our factory have more than 20 years development history, we are professional on all kinds of tissue paper processing machines including Toilet Paper and Kitchen Towel Rewinding Machine, Facial Tissue Making Machine, Hand Towel Folding Machine, Napkin Machine, Pocket Tissue Machine and relevant cutting machine and packing machine. We export more than 200 sets machine to over 20 countries every year. We upgrade our technology and expand our scale step by step.
Quality first and client first are always the objects we peruse.
Hope to start a bright future with you!
Our Advantages Professional Engineer
Our factory is more than 20 years, we witness the development of tissue paper processing machines.
As a result, we have a lot of experienced engineers, to design machine according to client's requirement, and make sure each machine working perfectly.
We persue good machine quality, we keep research new technology and upgrade the machine better and better.
Professional Sales
As we have our own factory, our sales knows the machine very clearly, we can explain every details no matter you are familiar or not to these machines.
We give professional solutions to meet different client's requirements. You will always find one happy solution to start your business here.
And we welcome clients visit our factory, and we will give you transportation tips before you come, and arrange car to pick you from train station or airport.
Good After-sales Service
Customers' satisfaction is always our best feedback, we put client in the first place. We have 24 online service, 7 days. And we always give fast response to solve your confusion.
During all machine lifetime, we guarantee good after-sales service. Machine is high value product which can use for years, no matter you meet machine small problems or you need to buy machine spare parts, you can come to us. You buy our machine, you have our back on.

FAQ 1. Are you factory manufacturer?
A: Yes, we are factory manufacturer, our factory history has been more than 20 years, and welcome to visit my factory when you come to China.
2. How long is your Warranty?
A: Our machine warranty is ONE year guarantee but machine after-sales service is all machine lifetime.
Within ONE year warranty, for the main machine spare parts like PLC, Motor have damage not by manmade, we will courier the spare parts immediately for free.(not including easy-wear spare parts like blade)
After ONE year warranty, we will still provide after-sales service, but if need to courier spare parts, client needs to cover the cost.
3. What about the machine installation?
A: All our machine will testing before shipping, and the testing cost is for free, then we take apart the machine to several packages for shipping. We have engineer overseas service, if you don't have any machine experience, we can send engineer to your place to install the machine and train your workers, for this service, client need to cover its cost.
4. What's the payment terms?
A: 30% deposit by T/T, and pay the balance after machine testing before shipment by T/T.
5. What's the delivery time?
A: Almost all the machine start production after ordered, so machine delivery time is about 60 days, for urgent needs please check with sales if have ready stock or make it faster.
