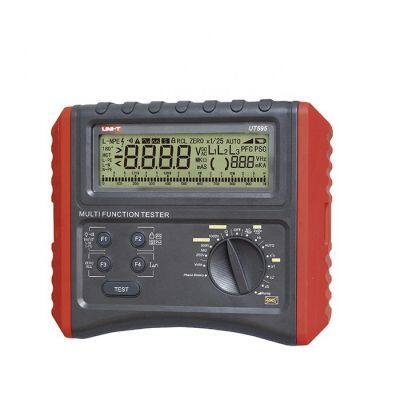

UT595 Multifunction Loop Testers Earth Ground Line Loop Impedance Tester Insulation Resistance Meter Rcd Protection
Product Description
Loop Testers UT595 description:
UT593/UT595 is a multifunction digital safety testing instrument, designed with combin-ation of large-scale integrated analog & digital circuits and micro-processor chip. It mai-nly measures RCD, line/loop impedance, continuity, insulation resistance, DC and AC voltage, phase sequence, featuring versatile functionality, higher accuracy, stable perfor-mance and ease of use. The instrument is widely used to measure RCD, insulation and earth connections for various equipments, and an ideal tool for testing, inspection and maintenance badly needed for various electric devices and RCDs.
HZ Multifunctions Loop Tester UT595 parameter:

Specifications	Range		Best Accuracy
Model			UT595
Insulation Resistance (Ω)	Test Voltages	250V/500V/1000V	±10%
	250V	0.05MΩ~250MΩ	±(5%+5)
	500V	0.05MΩ~500MΩ
	1000V	0.05MΩ~1000MΩ
	Short-Circuit Current	√
Low Resistance Continuity Test(Ω)	Range	0.00Ω~199Ω	±(2%+5)
	Test Current	0.00~2Ω: >200mA	√
Line Impedance (Ω)	Range	0.01Ω~2000Ω	±(5%+5)
	Operational Voltage(Freq.)	195V~440V(45Hz~65Hz)	√
	Test Current	20A	√
	PFC Range	0KA~26KA	√
Loop Impedance (Ω)	Range	0.01Ω~2000Ω	±(5%+5)
	Operational Voltage(Freq.)	195V~253V(45Hz~65Hz)	√
	Test Current	20A	√
	PFC Range	0KA~26KA	√
Loop Impedance Without Tripping(Ω)	Range	1.00Ω~2000Ω	±(5%+5)
	Operational Voltage(Freq.)	195V~253V(45Hz~65Hz)	√
	Test Current	15mA	√
	PFC Range	0KA~26KA	√
RCD	Operational Voltage(Freq.)	195V~253V(45Hz~65Hz)	√
	Test Current	10mA/30mA/100mA/300mA/500mA	±10%
	Trip Time	×1/2 *I n Range:0ms~2000ms	±(5%+5)
		×1 *I n Range:0ms~300ms	±(5%+5)
		×1 *I n Range:0ms~500ms(Selective Countdown)	±(5%+5)
		×2 *I n Range:0ms~300ms	±(5%+5)
		×2 *I n Range:0ms~500ms(Selective Countdown)	±(5%+5)
		×5 *I n Range:0ms~40ms	±(5%+5)
Phase Sequence Test	Operational Voltage(Freq.)	100V~440V(45Hz~65Hz)	√
	Indication	Order:L1→ L2→ L3 Positive change;L1→ L3→ L2 To reverse	√
RCD Measurement RAMP Slope	Test Current Range	10mA/30mA/100mA/300mA/500mA	±10%
AC Voltage (V)	Range	0V~440V	±(5%+2)
	Frequency Response	45Hz~60Hz	√
	Resolution	1V	√
Features
Display Count			9999
Auto Power Off			√
Low Battery Indication			√
Data Logging			√
LCD Backlight			√
Auto Half-wave Test			√
RCD Countdown Measurement	30 Seconds		√
RCD Half-wave Test			√
Phase Switch(RCD)	0°and 180°		√
General Characteristic
Power	1.5V Batteries(LR6) X 6
LCD Size	125mm X 37mm
Product Color	Red and Grey
Product Net Weight	1000g
Product Size	210mm X 175mm X90 mm
Standard Accessories	Batteries, Test Lead (1 x Green, 1x Black, 1 x Red), Specialized Test Lead, Remote Control Test Lead
Standard Individual Packing	Gift Box, Tool Box, User Manual
Standard Quantity Per Carton	4 PCs
Standard Carton Measurement	510mm X 330mm X 300mm (0.051CBM Per Standard Carton)
Standard Carton Gross Weight	15Kg
