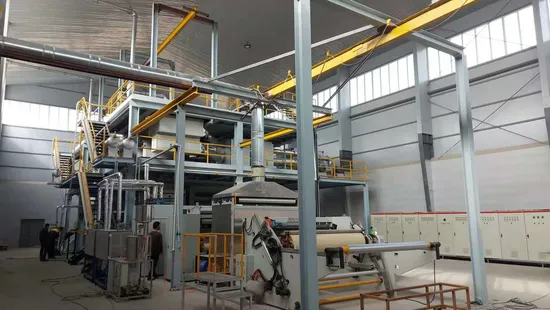

Recommended Product From This Supplier. Ss 2400mm PP Spunbonded Non Woven Fabric Making Machine

Product Description

Specification

Setting Information
product name	Non woven fabric making machine
rated voltage	220V/360V
Application	Disposable Nonwoven Fabric Product
Capacity	5/8/10/12T/DAY
GSM	9-250 g/m2
Speed	150m/min
Raw material	PP Chips
Heating type	Hot Oil Circulation,Electricity,Gas

Main extruder
Extruder is used for melting and extruding PP Chips, master batches and some additives, such as antioxidant, anti-pilling agent and flame retardant agent.
Extruder machine consists of chip inlet, automatic temperature control, cooling device and alarming device.
Main drive adopts A.C. frequency control. The temperature control device adopts closed circuit temperature meter, solid relay and pt100 platinum resistance.
Stretching device
Stretching device is used for drawing filament( passing from spinneret ) being into longer and thinner.
1.Nominal working width: 1910mm
2:Quenching air volume: 10,000m3/h
3:Pressure: approx. 5000Pa

Model	Working width	Annual Output	Embossing Pattern
AL-1600S	1600mm	5T/Day	Diamond, Oval,Cross,Line
AL-2400S	2400mm	8T/Day	Diamond, Oval,Cross,Line
AL-3200S	3200mm	10T/Day	Diamond, Oval,Cross,Line

Installation Instructions

Company Profile

Certifications


Our Advantages

After Sales Service
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:

Our location in YIwu,which is near Shanghai (around 300km) and Hangzhou( just 120km). Welcome to visit our factory!!
