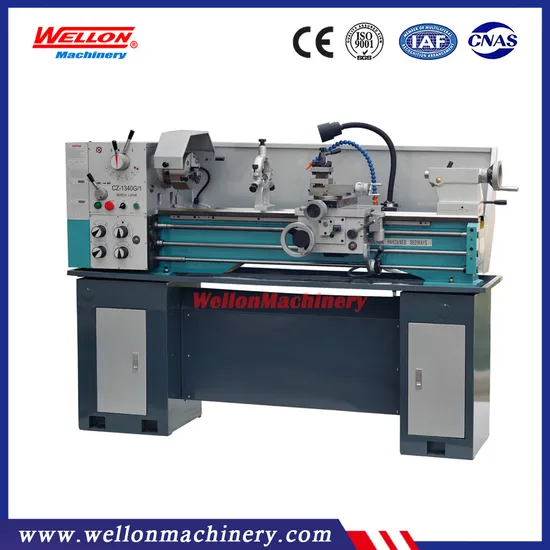

Cheaper Gap-Bed Lathe Machine CZ1237G1/CZ300A Metal Bench Lathe Machine

Product Description

Product Description
Cheaper Gap-bed Lathe Machine CZ1237G1/CZ300A
Detailed Photos
Product Parameters
Features:
Engineered from high grade castings
V way bed ways induction hardened and ground
Gap bed
Cross and longitudinal interlocking feed, enough safety
Various thread cutting function

Technical parameter:

ITEM		CZ1237G/1
Swing over bed	mm	φ305
Swing over carriage	mm	φ173
Swing over gap	mm	φ440
Width of bed-way	mm	182
Distance between centers	mm	940
Spindle taper		M.T.5
Spindle bore	mm	φ38
Step of speed		9
Range of speed	rpm	64~1500
Head		D1-4
Metric thread		26kinds (0.4~7 mm)
Inch thread		34kinds(4~56T.P.I)
Longitudinal feeds	mm/r	0.052~1.392
Cross feeds	mm/r	0.014~0.38
Diameter of lead screw	mm	φ22(7/8")
Pitch of lead screw		3mm or 8T.P.I
Saddle travel	mm	810
Cross travel	mm	150
Compound travel	mm	90
Barrel travel	mm	100
Barrel diameter	mm	φ32
Taper of center	mm	M.T.3
Motor power	Kw	1.1(1.5HP)
Motor for coolant system's power	Kw	0.04(0.055HP)
Machine(L×W×H)	mm	1780×750×760
Stand (right)(L×W×H)	mm	400×370×700
Stand (left)(L×W×H)	mm	300×370×700
Machine	Kg	390/440
Stand	Kg	60/65

Standard accessories:

3 jaws chuck

4 jaws chuck

Dead centers

Sleeve

Change gears

Steady rest

Follow rest

Oil gun

Work lamp

Coolant system

Face plate

Splash guard

Footbrake

Tool post cover

Spindle chuck cover

Stand base

Optional accessories:
Drill chuck
Live center
Face plate
DRO 2 axis
Quick change tool post
Thread chasing dial
Tapper turning attachment
