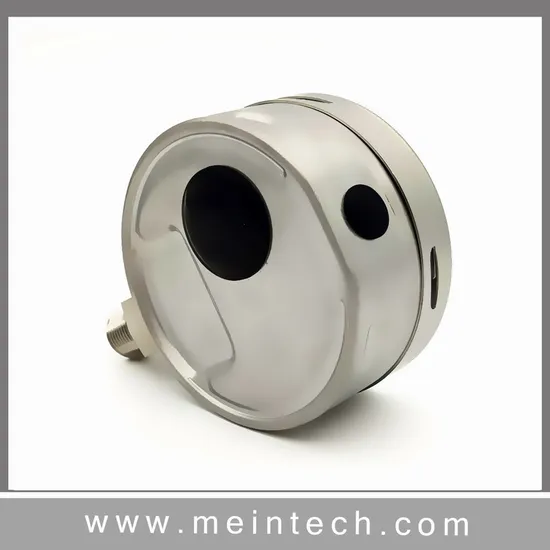

Hollysys All Stainless Steel Shock-Proof Safe Pressure Gauge Yqhb (N)

Product Description

Application
The product is suitable for harsh and corrosive environments, measuring non-viscous, not easy to crystallize, with slightly corrosive gaseous liquid media. The table is designed with a safety partition to protect the safety of the observation surface. The back is equipped with a pressure relief cover to release internal pressure caused by the rupture of overloaded elastic elements, enhancing the safety of personnel and facilities. Mainly used in petroleum, chemical industry, metallurgy, electric power, food, medicine, environmental protection, machinery, ships and other industries.
Technical Specifications · Nominal diameter: Φ63mm, Φ100mm, Φ160mm
· Accuracy level: 2.5 (Φ63mm)
1.0, 1.6 (Φ100, Φ160)
· Measuring range: -0.1~0~0.06...60MPa
or other equivalent pressure vacuum range
· Overpressure capacity: full scale ×130%
· Ambient temperature: -40ºC to 70ºC
· Medium temperature: -40ºC to 100ºC
When the ambient temperature deviates from 20ºC±5ºC, the indication error of the instrument is not more than 0.04%/ºC
· Process connection: M14 × 1.5, 1/4"NPT (Φ63)
M20 x 1.5, 1/2"NPT (Φ100, Φ160)
· Pressure element: < 10MPa C-type tube
≥10MPa Spiral pipe
( Or customized)
· Pressure element: < 10MPa C-type tube
≥10 MPa Spiral pipe
· Liquid material: 316L (Monel optional)
· Case material: 316L
· Meter pointer: Aluminum alloy, black
· Meter dial: Aluminum alloy, black lettering on white background
· Sealing material: silicone rubber
· Instrument glass: safety glass
· Protection level: IP65, IP66
Options
· Diaphragm chemical seal
· Dual range dial
· Instrument filling liquid (glycerin, silicone oil, fluorine oil, etc.)
· Heat sink (can accommodate higher media temperatures)
Dimensions

Diameter (mm) / Size (mm)	D1	D2	a	b	H
Φ63	63	63	40	14	88
Φ100	101	100	60	17	134
Φ160	161	160	69	19	204

Packaging & Delivery

Category	Product Size	International Commercial Terms (Incoterms)	Terms of Payment	Nearest Port
All Stainless Steel Shock-Proof Safe Pressure Gauge YQHB (N)	50 cm*58 cm*30 cm	CIF, CFR, DAP	LC, T/T, D/P	Shanghai, Guangzhou, Tianjin
