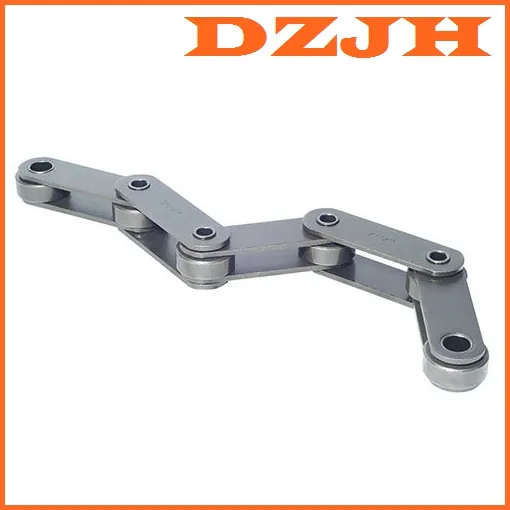

Industrial Hollow Pin Conveyor Chain Systems
| US$12.39-150.89 | 50 Meters (MOQ) |
Basic Info.
Model NO.
MC Series; FVC Series
Material Feature
Oil Resistant, Heat Resistant, Fire Resistant
Application
Chemical Industry, Grain Transport, Mining Transport, Power Plant
Condition
New
Size
as Your Require
Surface Finishing
Ecru(Polishing), Black, Galvanized
Made Style
Manufacture and OEM
Export Markets
Global
Transport Package
Gunny Bag / Wooden Case/Pallet
Trademark
Client′s brand
Origin
China
Production Capacity
100t/Month
Product Description
A Double Pitch Chain, Hollow Pin series chains are built to DIN / ASME / ANSI standards and are used for conveyor applications. Hollow pin chians have featuring pins with holes through them for mounting various attachments for conveyance.| DIN Chain No. | Pilch | Width between inner plates | Hollow pin dimensions | Bush diameter | Roller dimension | Plates dinensions | Ultimate tensile strength | ||||||
| P | b1 min | d2 max | d3 min | L max | d4 max | d1 max | d7 max | d5 max | b11 | h2 max | t/T | Q min | |
| m m | m m | m m | m m | m m | m m | m m | m m | m m | m m | m m | m m | KN | |
| MC28 | 63 | 20 | 13 | 8.2 | 36 | 17.5 | 36 | 25 | 45 | 4.5 | 25 | 3.5 | 28 |
| 80 | |||||||||||||
| 100 | |||||||||||||
| 125 | |||||||||||||
| 160 | |||||||||||||
| MC56 | 63 | 24 | 15.5 | 10.2 | 45 | 21 | 50 | 30 | 60 | 5 | 35 | 4.0 | 56 |
| 80 | |||||||||||||
| 100 | |||||||||||||
| 125 | |||||||||||||
| 160 | |||||||||||||
| MC112 | 80 | 32 | 22 | 14.3 | 62.5 | 29 | 70 | 42 | 85 | 7 | 50 | 6.0 | 112 |
| 100 | |||||||||||||
| 125 | |||||||||||||
| 160 | |||||||||||||
| 200 | |||||||||||||
| 250 | |||||||||||||
| 315 | |||||||||||||
| MC224 | 125 | 43 | 31 | 20.3 | 83 | 41 | 100 | 60 | 120 | 10 | 70 | 8 | 224 |
| 160 | |||||||||||||
| 200 | |||||||||||||
| 250 | |||||||||||||
| 315 | |||||||||||||
| 400 | |||||||||||||
| DIN Chain No. | Pitch | Roller dimension | ||||||||||
| P | di | d4 | d6 | d7 | G | |||||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| FVC63 | 63.0 | 80.0 | 100.0 | 125.0 | 160.0 | 40.0 | 26.0 | 50.0 | 63.0 | 5.0 | ||
| FVC90 | 63.0 | 80.0 | 100.0 | 125.0 | 160.0 | 200.0 | 250.0 | 48.0 | 30.0 | 63.0 | 78.0 | 6.5 |
| FVC112 | 100.0 | 125.0 | 160.0 | 200.0 | 250.0 | 5S.0 | 32.0 | 72.0 | 90.0 | 7.5 | ||
| FVC140 | 100.0 | 125.0 | 160.0 | 200.0 | 250.0 | 60.0 | 36.0 | 80.0 | 100.0 | 9.0 | ||
| FVC180 | 125.0 | 160.0 | 200.0 | 250.0 | 315.0 | 70.0 | 42.0 | 100.0 | 125.0 | 13.0 | ||
| FVC250 | 160.0 | 200.0 | 250.0 | 315.0 | 400.0 | 80.0 | 50.0 | 125.0 | 155.0 | 15.0 | ||
| FVC315 | 160.0 | 200.0 | 250.0 | 315.0 | 400.0 | 90.0 | 60.0 | 140.0 | 175.0 | 18.0 | ||
| DIN Chain No. | Width between inner plates | Pin diameter | Bush diameter | Pin length | Plate tickness | Plate depth | Ultimate tensile strength | ||
| b1 min | d2 max | d3 min | d5 max | L max | Lc max | T max | h2 max | Q min | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/bf | |
| FVC63 | 22.0 | 12.0 | 8.0 | 18.0 | 45.0 | 50.5 | 4.0 | 30.0 | 46.0/10454 |
| FVC90 | 25.0 | 14.0 | 10.0 | 20.0 | 53.0 | 56.5 | 5.0 | 35.0 | 73.0/16590 |
| FVC112 | 30.0 | 16.0 | 11.0 | 22.0 | 62.0 | 63.0 | 6.0 | 40.0 | 90.0/20454 |
| FVC140 | 35.0 | 18.0 | 12.0 | 26.0 | 67.0 | 68.5 | 6.0 | 45.0 | 110.0/25000 |
| FVC180 | 45.0 | 20.0 | 14.0 | 30.0 | 86.0 | 88.0 | 8.0 | 50.0 | 145.0/32954 |
| FVC250 | 5S.0 | 26.0 | 18.0 | 36.0 | 97.0 | 103.5 | 8.0 | 60.0 | 215.0/48863 |
| FVC31S | 65.0 | 30.0 | 20.0 | 42.0 | 117.0 | 121.5 | 10.0 | 70.0 | 295.0/67044 |
