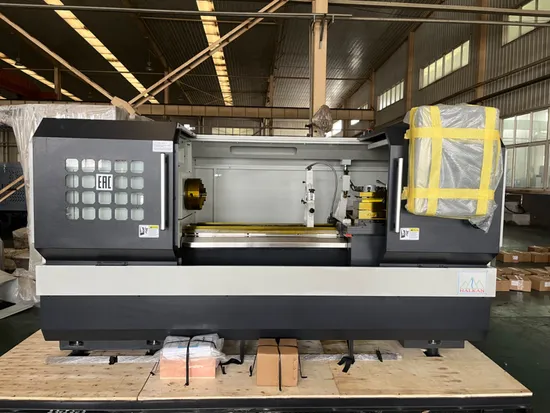

CAK6150-1000/1500
Basic Info.
Model NO.
CAK6150 HTL500 HT500
Type
Horizontal Lathe
Processing Accessory
Centre CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Table
Precision
Precision
Certification
ISO 9001
Condition
New
Net Weight
1700g
Maximum Machining Length
1000/1500
System
Siemens 808d
Transport Package
Packed in Wooden Cases with Steel Bottoms
Specification
2630*1800*2100
Trademark
xing
Origin
China Linyi
HS Code
8458110090
Production Capacity
1000
Product Description
| item | specification | |
| 1 | Max. swing dia. over bed | 500mm |
| 2 | Max. turning dia. of workpiece | 250mm |
| 3 | Distance between centers | 1000/1500mm |
| 4 | Bed form | flat |
| 5 | Middle pallet | |
| 6 | Max.X stroke | 300mm(hard guide) |
| 7 | Max.Z stroke | 535/835mm |
| 8 | Rapid feed X/Z | 4/6m/min |
| 9 | X/Z motor speed | 2500 |
| 10 | Z axis guide width | 290 |
| 11 | Ball screw X/Z | 3205/4005 |
| 12 | Spindle speed | 100-1500RPM |
| 13 | Spindle nose | A2-8 |
| 14 | Spindle bore | 82mm |
| 15 | Power of main motor | 7.5KW |
| 16 | Spindle clamp | 10inch hydraulic chuck |
| 17 | Chuck bore | 55mm |
| 18 | Tool holder | electric |
| 19 | Number of tool holders | 4/6/8 |
| 20 | Standard blade size | 25×25mm |
| 21 | Maximum boring tool diameter | 25 |
| 22 | Tailstock stroke | 140 |
| 23 | Tailstock diameter | 60 |
| 24 | Tailstock Mandrel stroke | 140 |
| 25 | Tailstock taper | MT4 |
| 26 | positioning accuracy X/Z | 0.015/0.02mm |
| 27 | repositioning accuracy X/Z | 0.008/0.008mm |
| 28 | Overall dimensions of machine | 2600x1700x1750mm |
| 29 | Case dimensions of machine | 2630x1800x1900mm |
| 30 | Net weight /gross weight of the machine | 2600/3000kg |
Shandong Linyi Golden Star Machine Tool Co., Ltd.the original linyi machine tool plant, founded in 1965, is a research and development, production and manufacturing mechatronics CNC machine tool products and characteristics of export products for the main business of state-level high-tech enterprises, with annual production of CNC lathe, vertical machining centers, CNC milling machine, engine lathe, multi-purpose machine, surface grinding machine, etc. The comprehensive production capacity of more than Taiwan. The company has passed THE ISO9001 international quality system certification, and enjoys the right to import and export. It is a patent star enterprise in Shandong Province, with provincial enterprise technology center, provincial one enterprise one technology RESEARCH and development center, municipal engineering technology research center and key laboratory of high-grade CNC machine tool enterprises.
The company is the professional and technical personnel education base in Shandong Province, with 32 scientific research personnel, one expert with outstanding contribution and six senior titles enjoying the special allowance of The State Council. At present, the company has 24 national patents and 5 software Copyrights. Presided over the formulation of JBCPZT1319-2019 CNC double-head vehicle industry standard, and participated in the formulation of JB/T8326 CNC Instrument Horizontal Lathe industry standard.
