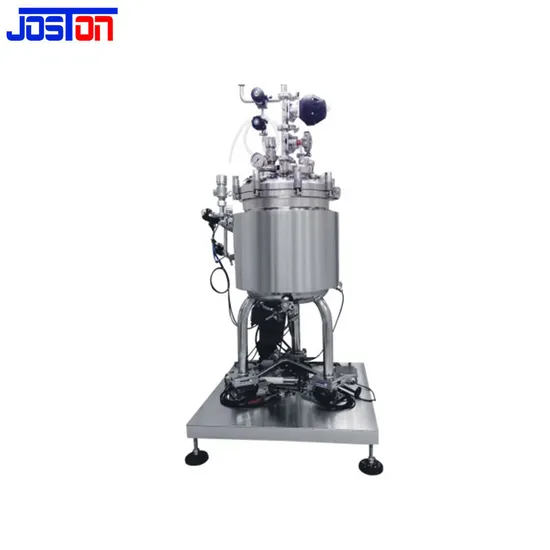

Double Jacketed Electric Heating Magnetic Stirring Mixing Tank with Agitator

Product Description

Detailed Photos
Product Description Stainless Steel SS304 SS316L Heating Mixing Tank is mainly used for the preparation ,emulsifying and homogenizer the suspension product ,oil phase and water phase material dissolv solution which is widely used in the sterile drugs,biological products,oral liquid ,eye drop ,syrup solution in pharmaceutical fields.
Stainless Steel SS304 SS316L mainly inclduing the following units:
1) manufacturing tank ( mixing tank ) : which can be single layer ,steam jacket or electrical heating jacket with insulation layer
2) bottom mounted magnetic agitator and top mounted high shear emulsifying agitator
3)control panel system : PLC/HMI control panel or common button control panel .
the advantage of PLC/HMI control system for solution preparation system:
1. Adopt aseptic design, no dead area, minimize residue.
2. PLC control of touch products, one key operation, direct and clear process flow chart, automatic liquid distribution and material transmission in the whole process; simple, convenient and user-friendly.
3. Equipped with automatic CIP online cleaning system and sip online sterilization system, the system can automatically online SIP and CIP, reducing production cost and old strength.
4. Automatic online abbreviation for filter integrity.
5. Automatic online real-time detection of weight and constant volume.
6. Automatic real-time abbreviation, recording and printing of all relevant data.
Product Parameters Technology data for Stainless Steel SS304 SS316L :

Model Item	PYG-50	PYG-100	PYG-500	PYG-1000	PYG-6000
Tank work volume:L	50	100	500	1000	6000
Motor power:Kw	0.18	0.37	1.1	2.2	5.5
Agitator speed :RPM	0-350 ( for the gear motor connection type ),0-600 (for direct motor connection type )
Inside shell pressure MPa	-0.1/0.3 (can be done as client's URS)
Jacket pressure MPa	0.3 (can be done as client's URS)

Remark :above model just for reference ,we can do according to client's URS Company Profile
SERVICE
We have established some overseas agent office to make the after-sales serivce already ,so it can will be service client in fast response .also in our headquarter service team ,there is a expert team which can support client in 7*24 hours .
1. Customer inquiry and consultation (URS documents)
2. Confirmation of treatment plan (DQ documents &PID Drawing)
3.Quotation offer with the technolgy document (Quotation PI )
4.Engineering and Manufacturing (Prodcution &Quality inspection )
5. Product inspection (FAT documents)
6. Delivery arrangement and loading work (full set Shipment documents)
7. After-sales service (OQ,PQ ,SAT documents)
