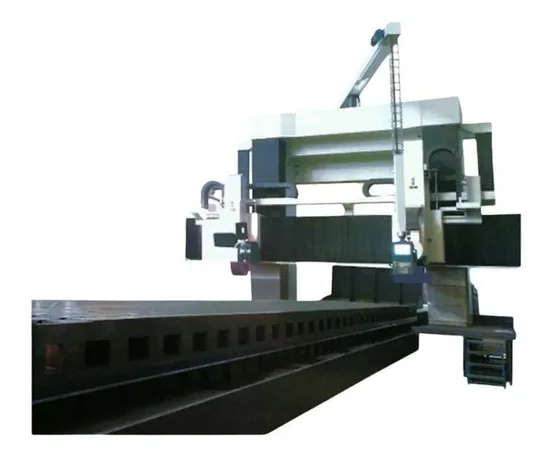

Mkw52 Series Moving Beam CNC Gantry Rail Grinder Mkw5220A/Mkw5225A/Mkw5230A

Product Description

Specificities:
The machine adopts gantry type layout, consisting of double columns, beams and bed body with closed high rigidity structure.
The beam adopts the structure of ladder beam,the steel guide rail is inlaid and pasted locally, the roller isused, the whole rigidity is strong, the mechanical property is good.
The spindle of wheelhead adopts dynamic and static pressing tile structure, which has the advantages of longlife, high movement precision and good anti-vibration performance.
The working table is driven by oil cylinder, stepless speed regulation, stable movement and low noise.
The main motor of hydraulic unit adopts servo motor, and the flow varies with the speed of motor, saving energy and high efficiency.
Vertical wheelhead rotation with end gear disk positioning, 1° dividing.arge range of processing, to meet theneeds of precision machining of large and extra-large workpiece.
Dedicated human-computer interaction interface, simple andefficient operation.

Model No.	MKW5220A	MKW5225A	MKW5230A
Item No.
General capacity
Table width	2000 mm	2500 mm	3000 mm
Table length	2000/2500/3000 mm	8000/10000/12000/13000/14000/15000/16000 mm	8000/10000/12000/13000/14000/15000/16000 mm
Max grinding height	2000/2500/3000mm	2000/2500/3000mm	2000/2500/3000mm
Column distance	2600 mm	3200 mm	4200 mm
Horizontal wheel head motor	30 kw	30 kw	30 kw
Horizontal wheel size	Ø600x150x305mm	Ø600x150x305mm	Ø600x150x305mm
Horizontal spindle speed	1050 rpm	1050 rpm	1050 rpm
Vertical Wheel head motor	15 kw(inverter)	15 kw(inverter)	15 kw(inverter)
Vertical travel of horizontal wheelhead	250 mm	250 mm	250 mm
Vertical travel of vertical wheelhead	800 mm	800 mm	800 mm
Vertical wheel size	Ø600x100x250mm	Ø600x100x250mm	Ø600x100x250mm
Vertical spindle speed	80-2500 rpm	80-2500 rpm	80-2500 rpm
Vertical wheel head rotation	±90 °	±90 °	±90 °

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
