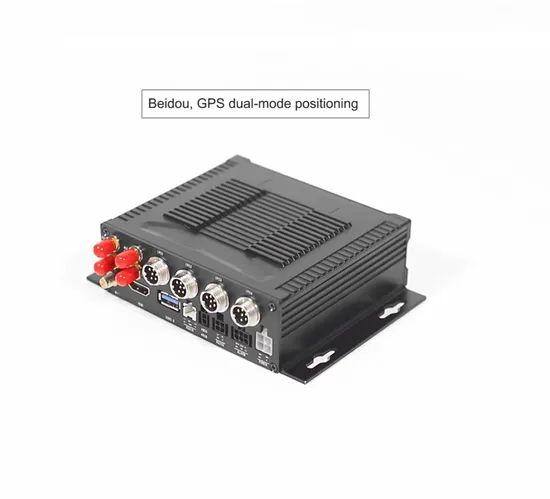

1080P Face Recognition Smart DVR 720p GPS Tracking License Plate Recognition Lpr Car School Bus 4 Channel 4G 5g Wireless Mdvr
| US$450.00-495.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TSM610-E-LA1NA1-4N-I-EC-41
Compressed Format
MPEG
Operating System
Linux
Application
Mobile DVR
Interface Type
BNC/VGA
Video Input/Output
4 Channel
Audio Input/Output
4 Channel
Remote Control
With Remote Control
Material
Metal and Others
Transport Package
Carton
Specification
12*18*17.5cm
Trademark
Tsinglink
Origin
Hefei, Anhui
HS Code
8521909090
Production Capacity
10000/M
Packaging & Delivery
Package Size
27.00cm * 17.00cm * 17.00cm
Package Gross Weight
5.500kg
Product Description
TSM610-E wireless video edge computing terminal is a mobile video surveillance product for HD and UHD monitoring needs. The product adopts high-speed processor and embedded operating system, combined with H.264, H.265 video compression/decompression technology, 5G/4G/3G network technology, artificial intelligence technology, Beidou, GPS positioning technology, WiFi and other technologies to achieve HD resolution video recording, vehicle driving information recording and remote video uploading, cooperate with software can realize remote video monitoring, audio intercom, vehicle intelligent dispatch management, alarm linkage, intelligent data analysis (face detection, face recognition, license plate recognition, etc.) . The product has the characteristics of strong shock resistance, stable transmission, flexible and convenient installation, comprehensive functions, and high reliability. It can be widely used in public security, traffic policeman, procuratorate, court, national security, armed policeman, border defense, customs, road administration, escort, drug control and other occasions. Key features Adapt to all network, support 5G/4G/3G transmission Support 4 channel 1080P (optional 1 channel 4K) network HD video input Support 4 channel face detection / license plate recognition / face recognition Support H.264/H.265 video compression algorithm Each channel of video supports three streams: one channel of IPC pass-through stream, two channels of decoding and recoding streams, two channels of which transcoding stream supports custom OSD overlay without changing the IPC configuration Support two-way hand microphone intercom Built-in WiFi, 5.8G high-speed bandwidth Dual TF card storage, single card supports up to 1T Support Beidou/GPS dual-mode positioning Support RS232, RS485, alarm and switch output Industry application Truck, bus, school bus and other wireless picture transmission occasions. |
Specifications
| Item | TSM610-E |
| Operating System | Linux |
| Access Platform | iCVS2.0, GB/T 28181, GA/T 1400 |
| Real Time Clock | Support |
| Input | 4 channel network high definition aviation plug |
| Video Access Protocol | Onvif, iCAP, RTSP protocol |
| Output | 1 channel HDMI interface |
| Resolution | Support resolution: 4×1080P, 4×720P, etc. or 1*4K |
| Compression Standard | H.264/H.265 |
| Bit Stream | Support dual stream, one channel adaptive transmission, one channel local storage |
| Bit Rate | 16Kbps~10M |
| Frame Ratio | 1~25fps |
| Input Channel | Support 4 channel input, support external wired hand microphone |
| Output Channel | Support 4 channel output, support external wired hand microphone, external audio |
| Compression Standard | G711A/G711U/AAC |
| 5G/4G | 5G NSA & SA, backward compatible with 4G; 4G, dual SIM card |
| Ethernet | 10/100M adaptive full duplex |
| WiFi | 802.11a/b/g/n, 2.4G, 5.8G |
| TF Card Storage | Dual TF card storage, single card maximum support 1T |
| Positioning | Support Beidou, GPS dual-mode positioning |
| Alarm | 2 channel alarm input, 1 channel switch alarm output |
| Serial Port | Support 1 channel RS232 and 1 channel RS485 transparent serial port data acquisition and control |
| Power | DC 8~36V |
| ACC Switch Machine | Support |
| Application | Support four channel face detection, face recognition, license plate recognition |
| Working Temperature & Humidity | -20~70ºC; ≤95% |
| Size | 116.02mm × 41.57mm × 147mm |
Our Company
Workshop
Expo
1. Are you a factory or a trading company? We are professional factory with nearly two decades experience, with 4000 square meters workshop and over 150 employees. We have the independent right to operate import and export to provide service to overseas customers directly, so there's no need to pay additional commission to agency and we could skip some steps to save more time. We have our own research and development of terminal and platform software, customization and secondary development is welcomed. Tsinglink has independent brand and provide OEM, ODM production as well. 2. What is your pricing strategy? Discount will be provided upon large quantity. For overseas markets, we will offer competitive price to support long-standing customers and distributors. 3. What is your minimum order quantity? Our minimum order quantity is 10 pcs for each model, but we accept small order as trial order. 4. How could I get a sample? Sample fee and freight charge will be listed on sample PI. Once our finance team confirms received your payment, sample and tracking number will be sent. 5. What's the payment terms? We accept TT (Telegraphic Transfer), Western Union etc as payment term for small order and L/C for larger order. 6. What's the delivery time? Usually 7-15 working days after received payment, but it depends on the order quantity. Estimated delivery time will be informed by sales before final payment. 7. What type of shipment will you use? We usually ship the products by express delivery to your door or by air freight to your nearest airport. If the order quantity is large, we may ship by sea. 8. How about quality control? ISO systems help our factory improve management level, ERP system can help us control the cost of procurement links effectively, so we can provide competitive price, new test equipments can do uninterrupted fatigue testing to ensure products using life. Pre-shipment inspection and third-party supervision are available. 9. Do you have agency for after-sales service? Sure. Our sales will instruct the installation of products and software. Please feel free to contact us if you meet any technical questions, we will help you work it out. 10. How can I be your sole-distributor? We have special policy for sole-distributor. Please contact our sales to get related files. Any further questions, welcome to contact our sales. |
