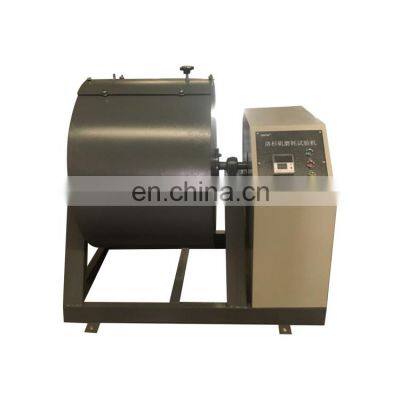

LHMH-II los angeles abrasion testing machine Los Angeles Abbrasion Machine

Product Description

Product Description
los angeles abrasion testing machine Abbrasion Machine
Product Description
This machine is mainly suitable for measuring the wear rate of stone.This machine is mainly composed of cylinders, shelves, sealing covers, gearboxes, motors, and counters.The machine is equipped with an automatic counter, which can be preset to the required number of revolutions of the drum Compelete

Product name	LHMH-II Los Angeles Machine
Cylinder inner diameter × inner length	710mm × 510mm (± 5mm)
Rotate speed	30-33 rpm
Working voltage	+10℃-300℃
Temperature control Accuracy	Customized
Counter	4 digits
Overall dimensions	1130 × 750 × 1050mm (length × width × height)
Steel ball	Ф47.6 (8 pcs) Ф45 (3 pcs) Ф44.445 (1 pc)
Power	750w      AC220V 50HZ/60HZ
Weight	200kg

Using method * Install the machine on the stable smooth ground and fix it with foot wire.
* Switch on the power,make the tumbling box rotating to the positive direction
* Set the RPM according to the need.
* Put the prepared aggregated rock and steel ball into the test cylinder,seal well, tighten the screws up,start the machine. It will stop automaticall when the preset rotating time is done.Then take out the sample.
* Sieving the stone chippings in the sample with sieve of 2mm or square hole sieve with 1.6mm length.
* Wash the sample left on the sieve with clean water. Dry it to get the constant weight and weigh its weight.
* Order test results by regulations. Taking the average of the two results,but the testing error should be no more than 2% or redo the test.
