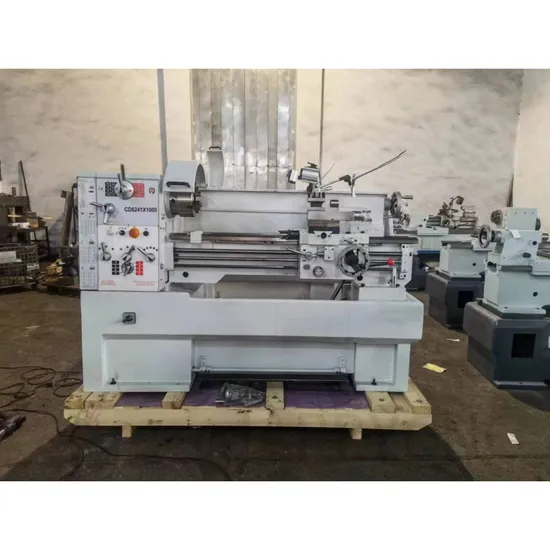

Turning Universal Metal Lathe CD6241X1000 Manual Lathe Machine

Product Description

Product Parameters

Item		Unit	Parameter	Parameter	Parameter
			CD6241x1000	C6246x1000/1500	C6260x2000
Capacity	Max swing over bed	mm	Φ410	Φ460	Φ600
	Max swing in gap	mm	Φ580	Φ690	Φ835
	Max swing over slide	mm	Φ255	Φ274	Φ358
	Max workpiece length	mm	1000	1000/1500	2000
Spindle	Spindle thru-hole	mm	Φ52	Φ58	Φ82
	Spindle nose		D1-5	D1-6	D1-8
	Taper of spindle bore		MT6	MT6	MT5
	Spindle speed	r/min	16 steps, 45-1800	12 steps, 25-2000	12 steps, 20-1600
	Spindle motor(Double Speeds)	kW	2.2/3.3	4	7.5
Bed	Bed width	mm	250	300	400
Tailstock	Quill travel	mm	120	120	180
	Taper of center	MT	4	4	5
Tool post	Number of station/		4/20X20	4/25X25	4/25X25
	Tool section
Feed	Max X-axis travel	mm	210	290	320
	X-axis feed	mm/r	17 Sorts,0.025-0.85	42 Sorts,0.014-0.784	50 Sorts,0.01-0.286
	Z-axis feed Z-axis feed	mm/r	17 Sorts.0.05-1.7	42 Sorts.0.031-1.7	50 Sorts.0.03-0.85
	Metric thread	mm	39 Sorts, 0.2~14	41 Sorts, 0.1~14	24 Sorts, 0.25~7
	Inch thread	t.p.i	45 Sorts, 2~72	60 Sorts, 2~112	50 Sorts, 4~112
	Module thread	πmm	18 Sorts,0.3~3.5	34 Sorts,0.1~7	34 Sorts,0.25~14
	DP thread	t.p.i. π	21 Sorts, 8~44	50 Sorts, 4~112	50 Sorts, 4~112
Others	Coolant pump motor	kW	0.09	0.04	0.09
	Packing Size	mm	2070X940X1600mm	2300/2800X1120X1560mm	3535X1100X1900mm
	N/G weight	kg	1500/1760kg	1810/2110kg	3010/3400kg
Accesseries:3-Jaw-Chuck(Ø200mm),Change Gear Set,Tool-box and tools,Dead Centers,Splash Guard,Chip Tray.Chuck Guard.Stand,Foot Brake,Coolant system, Working Lamp,4-Jaw-Chuck(Ø250mm),Leadscrew guard.Follow rest,Steady rest.
Optional:2 Axis DRO

Product Description
Product features
Full gears driven in the headstock, with 8 steps of cyclic speed-changing.Invention patent technology.
Feeding box with 12 steps of variable speeds , covering common threading pitches
Longitudinal & cross auto feeding adopts inter-lock structure with good safety.
High frequency hardened Two V-type widened guideway with rigidity.
Inclined wedge toolpost carriage, Camlocked tailstock; ndustrial lathe operation rod
