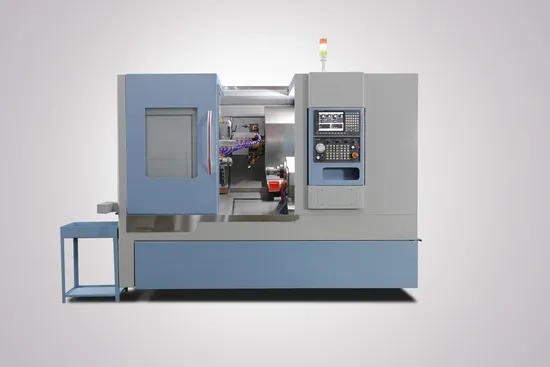

Precision CNC Dual Spindle Slant Bed Lathe Df46/75-500 for Soft and Hard Metals

Product Description

Discover the pinnacle of metalworking technology with our Two Spindle CNC Lathe Grinder Machine, offering unmatched efficiency at the best price. Perfectly designed for nuanced CNC Milling Machining operations.
Product Description
Our Two Spindle CNC Machine Tools represent the cutting edge of automated machining solutions. Boasting two independent spindles, these machines enhance productivity and precision across diverse industries, including aerospace, automotive, and textiles. They deliver remarkable speed and accuracy, making them indispensable for meeting stringent machining demands in these sectors.

Project	Name	specification	Unit
Process range	Max bed rotating diameter	Φ400	mm
	Maximum processing length	500	mm
	Maximum processing diameter (shafts)	Φ75 Φ45	mm
	Maximum processing diameter (disk type)	Φ400	mm
X / Z / Y X2 / Z2 / Y2	X / Z / Y axis travel	500 / 600 / 100	mm
	X2 / Z2 / Y2 Axis Travel	400 / 650 / 300	mm
	Repetition accuracy X / Z / Y	±0.003	mm
	Position accuracy	±0.005	mm
Movement	X / Z / Y	30/30/28	mm
	X2 / Z2 / Y2	24/30/18	mm
Screwdriver	X / Z / Y	32/36/40	mm
	X2/Y2/Z2	32/33/25	mm
Rails	X / Z / Y	35/35/30	mm
	X2/Y2/Z2	30/35/25	mm
Turrets	Turrets	12T
	Turning tool specifications	25X25(rectangular)
	Bore cutter specification	Φ25 Φ32	mm
Spindle	Positive/sub spindle nose form	A-26(75) / A2-5(45 ) - A2-4(36)	/
	Through-hole diameter of main/sub spindle	Φ75(Φ45) / Φ36	mm
	Positive/sub spindle speed	3500-4500 / 5000	rpm
Control System	Positive/sub spindle motor power (electric spindle)	18.5 / 7.5	kw
	X / Z / Y axis servo motor	3.0 /2.2 / 2.0	kw
	X2/ Z2 / Y2 axis servo motor	1.8 / 2.0 / 1.0	kw
	Turret power head milling cutter motor/backside shaft end motor	2.0 / 1.0	kw
Dimension	Length/Width/Height	2700 X 1950 X 2050	mm
	Heavy	4.9	T

Detailed Photos
• Experience unparalleled efficiency with simultaneous machining of dual workpieces. Our Dual Spindle CNC Machine revolutionizes your workflow by processing two workpieces concurrently, significantly optimizing machining productivity.
• Achieve unmatched precision in your machining tasks. Designed for high precision, our machine tools fulfill intricate cutting demands, including flawless internal and external precision, roundness, coaxiality, and more.
• Master multiple processes with ease. This versatile machine seamlessly handles a variety of complex procedures such as radial and axial cutting, drilling, tapping, hobbing, and more, all in one go.
•Precision Spindle epitomizes High Precision, High Performance, and Unwavering Stability
•Crafted in Taiwan, our spindle set exemplifies superior engineering. Utilizing a butterfly spring-based grab tool mechanism and a four-jaw broach system, it ensures precision tool handling by perfectly aligning with the spindle's taper hole.
• Our low inertia spindle motor accelerates swiftly, enhancing tapping speed and quality. With a direct spindle drive and precise spindle orientation, it sets a new standard in performance.
•Lead Screw
The innovative design with C3 grade precision screws across all axes, featuring pre-tensioning, effectively controls temperature increase and extends lifespan while ensuring exceptional repeated positioning accuracy.
•Line Track Our P-grade roller type rail system on all three axes offers formidable rigidity and outstanding load capacity in four directions, achieved through robust contact between rolling elements and the sliding rail line.
Anoher Advantages
Benefit from superior processing conditions and an optimized production environment. Our imported horizontal and vertical machining centers, CNC boring machines with rotating tables, and gantry guideway grinding machines ensure precise workpiece accuracy, elevating assembly precision and maintaining long-lasting accuracy.
State-of-the-Art Detection MethodsOur rigorous positioning accuracy testing and precise laser corrections adhere to the stringent German VDI3411 inspection specifications, conducted five times for optimal assurance.
Each machine tool must pass a stringent processing-side test before it leaves our factory, ensuring it withstands real-world processing scenarios and meets all accuracy standards.

Product sample
• The CNC machine center ingeniously integrates milling, drilling, and tapping functions, streamlining operations. • Designed for versatile CNC machining of diverse metal profiles, including aluminum, steel, copper, and non-metal materials, it offers unmatched versatility. • Our CNC Vertical Machine Tools are indispensable across industries such as 3C electronics, rail transportation, aerospace, and provide exceptional precision for liner module guide rails and more.d etc.
Packaging & Shipping
FAQ
1.What's the Payment Terms?
A: T/T, 40% initial payment when order, 60% balance payment before shipment.
2.What is your trade terms?
A:FOB CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machinewe can ready the machine within 30days. if some special machines will be some longer.You can place order accordingto delivery time and ship time we will give you the answer accordingly.
4. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
5. What is the package of the machines?
A:The machines standard will be packed in wood case.
6:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
