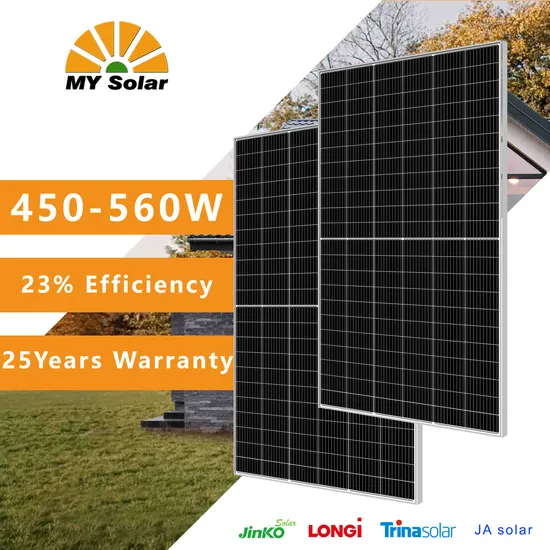

Jinko/Ja/Longi/Trina/Mysolar Sun Panel Solar 440W 500W 550W 580W Topcon N-Type Half Cells Mono Monocrystalline Solar Panels Price Tp-Solar Panel

Product Description

SPECIFICATIONS
Module Type	MY-M6/144-430		MY-M6/144-435		MY-M6/144-440		MY-M6/144-445		MY-M6/144-450		MY-M6/144-455
	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power (Pmax)	430	319.9	435	323.6	440	327.3	445	331	450	334.7	455	338.4
Maximum Power Voltage(Vmp)	40.72	36.9	41.08	38.2	41.4	38.5	41.75	38.8	42.1	39.1	42.4	39.3
Maximum Power Current(Imp)	10.56	8.441	10.59	8.471	10.63	8.501	10.66	8.531	10.69	8.56	10.73	8.611
Open-circuit Voltage(Voc)	48.69	45.3	48.98	45.5	49.25	45.7	49.55	46	49.84	46.2	50.2	46.4
Short-circuit Current(Isc)	11.07	8.948	11.1	8.98	11.14	9.01	11.17	9.044	11.2	9.075	11.24	9.128
Module Efficiency STC(%)	19.46%		19.69%		19.92%		20.14%		20.37%		20.60%
Operating Temperature(°C)	-40°C~+85°C
Maximum System Voltage	1500VDC(IEC)
Maximum Series Fuse Rating	20A
Power Tolerance	0~+5Wp
Temperature Coefficients of Pmax	-0.39%/°C
Temperature Coefficients of Voc	-0.30%/°C
Temperature Coefficients of Isc	-0.06%/°C
Nominal Operating Cell Temperature(NOCT)	45±2/°C

SPECIFICATIONS
Module Type	MY-M10/144-530		MY-M10/144-535		MY-M10/144-540		MY-M10/144-545		MY-M10/144-550
	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power (Pmax)	530	394.44	535	398.16	540	401.88	545	405.61	550	409.33
Maximum Power Voltage(Vmp)	49.02	46.27	49.18	47.01	49.34	46.58	49.5	46.73	49.65	46.87
Maximum Power Current(Imp)	13.79	11.14	13.87	11.2	13.96	11.27	14.04	11.34	14.13	11.41
Open-circuit Voltage(Voc)	40.47	37.65	40.6	37.77	40.73	37.89	40.86	38.02	40.99	38.14
Short-circuit Current(Isc)	13.1	14.08	13.18	10.54	13.26	10.60	13.34	10.67	13.42	10.73
Module Efficiency STC(%)	20.54%		20.73%		20.93%		21.12%		21.31%
Operating Temperature(°C)	-40°C~+85°C
Maximum System Voltage	1500VDC(IEC)
Maximum Series Fuse Rating	25A
Power Tolerance	0~+5Wp
Temperature Coefficients of Pmax	-0.37%/°C
Temperature Coefficients of Voc	-0.29%/°C
Temperature Coefficients of Isc	-0.048%/°C
Nominal Operating Cell Temperature(NOCT)	45±2/°C

Δ What is the difference between Tier 1 Solar Panel and not Tier 1 Solar Panel?
The main difference of the solar panel price is between Tier 1 Solar Panel and not Tier 1 Solar Panel.
If you order the mainstream solar panel --- cell size 166*166mm or 182mm*182mm (210*210mm will soon becoming popular), cell number 54pcs,60pcs, 72pcs, watt :365-670W), you can get the lower price, because our factory or others' have the stock. But we also can do the customized order, you can chose the cell battery IBC,TYPE P-perc or type N-I-TOPCON), mono or poly, Monofacial or Bifacial, size, watt and so on.
If you are interesting in stock panel, please contact me.
Δ How to choose a solar panel?
This guide will help you to choose the best solar panel for your project. Use this handy reference table to compare the facts. Quickly see the difference in features, performance, warranty and more. Make an informed decision so you know what you are buying. However, these products are ever-changing, with new models or capabilities being added all the time.

Power Range, Watts	310 - 410	400-455	455-670
Description	Best fit for residential,Household	Highest power and best value for larger roofs or ground mount, commercial or industry	Best choice of utility
Cell size	166*166mm(60Pcs) 182*182mm(54pcs)	166*166mm(72Pcs) 182*182mm(54pcs)	166*166mm(72Pcs) 182*182mm(72pcs) 210*210mm(60pcs)
Frame	Silver or black	Silver or black	silver
Efficiency	19.2% to 21%	20% to 21.1%	20% to 21.57%
Warranty	10 YEARS product warrant, 25YEARS Power Output Warranty

MY Solar Technology Co., LTD. (MYPVTECH) is a major member of MY Solar Group (MY Solar),founded in 2010. MY SOLAR is a professional manufacturer engaged in the research & development, manufacturing & sales business of solar modules, inverters, energy storage batteries, solar power systems and supporting products for solar power stations.
MY Solar is deeply trusted by new and old professional customers around the world for its new energy products with reasonable design, sophisticated technology, rich categories and reliable quality, as well as professional, high-efficiency and refined service characteristics.
The annual production and sales of new energy products include: 3GW solar modules, 250,000 solar systems and 1.2GW solar power plant equipment. Customers are located in Europe, America, Asia, Africa and other regions. MY Solar has reached brand, product and channel cooperation with many well-known manufacturers in the industry, providing stable OEM and ODM services for relevant well-known manufacturers, and providing more cost-effective Tier1 brand product sales services for MY SOLAR customers simultaneously.
Q:What's your payment terms?
A:T/T,L/C,Paypal,Western Union etc.
Q:What are the advantages of your company?
A:We are a factory, and we also cooperate with other brands,such as Longi,JA solar,Jinko,Trina,GCL,SUNTECH,Yingli etc., to provide customers with better prices and more choices.
Q:May I have a piece of sample to check the quality?
A:Welcome to place the testing order to check the quality or for testing.
Q:How about the delivery time?
A:15-20 days after receiving your payment.
The specific delivery time depends on the items and the order quantity.
Q:Where is the port of loading?
A:Shanghai,Ningbo.
Q:Can you do OEM?
A:Yes.
