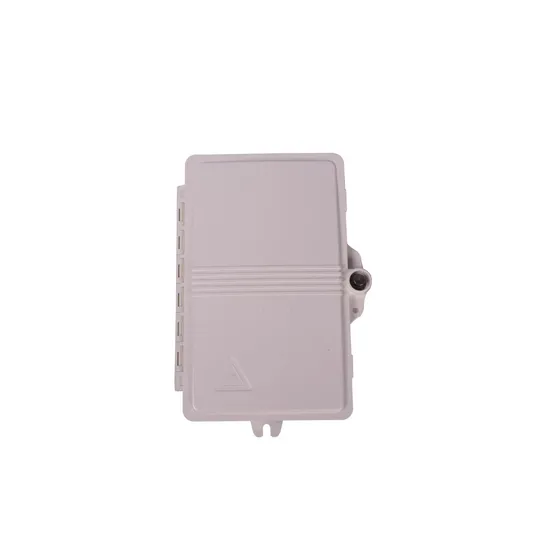

Mini FTTH 2 Core Fiber Optic Terminal Box

Product Description

Water-proof Outdoor FTTH 2 Core Fiber Access Terminal Box
Description 1. Used for wiring connection of the optic cable and fiber optic equipments;
2. Used for protective connection of the optic cable and the pigtails;
3. It suits to common optical fiber cable, also to band and bunchy optical cables fusion
4. Adopt front door structure, fiber expansion, convenient deployment;
5. The splice tray can be taken out of the box to operate. It is easy to execution and maintain;
6. Set core wire or strengthen member, grounding reliable, protect safe.
7. Adapters can be installed: FC, SC, ST, LC. FTTH Optic Fiber Junction Box

Features:
Applicable to single core terminal protection. Easy in operation.
-It can be installed on the wall and in the cabinet.
-Used for consistency between outdoor cable and exchange cabinet pigtails with reliable grounding wire device.
-Can be installed with SC, FC pigtail.
Specifications

Model	SPD-2A
Box material	PC+ABS
Max capacity	Splicer 4 fibers
	PLC splitter 1 pcs of 1*2 SC
Nmubers of adapter	2 pcs of sc/upc or sc/apc
Weight(kg)	0.8
size(mm)	168 x 102 x 32
