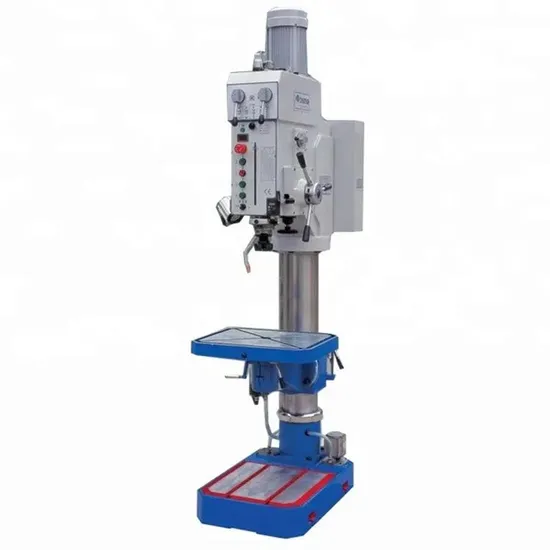

Column Drill Z5040 Vertical Standing Electric Drilling Machine for Metal
| US$990.00-2,900.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z5040
Structure
Bench Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Automatic Grade
Manual
Certification
ISO 9001
Weight
21-144kg
Transport Package
Wooden Case
Specification
108*62*245cm
Trademark
SMAC
Origin
China
Packaging & Delivery
Package Size
108.00cm * 62.00cm * 245.00cm
Package Gross Weight
750.000kg
Product Description
Product DescriptionStandard Accessories
1) Drill chuck
2) Taper sleeve (MT3 spindle only)
3) Arbor (only taper hole spindle)
4) Drill (only taper hole spindle)
5) Wreaches
Optional Accessories
1) Special guard
2) Vice
| Model | DP20013B (8") | DP25013B/ 25016B(10") | DP30013B1/ 30016B1 (12") | DP34016B/ F(13") | DP38016B/ F(15") | DP43020F (17") | DP51025F (20") | DP51025F1 (20") | |||||
| Model | (mm) | 13 | 13/16 | 13/16 | 16 | 16 | 20 | 25 | 25 | ||||
| Max. Drilling capacity | (mm) | 48 | 60 | 60 | 73 | 73 | 80 | 92 | 92 | ||||
| Diameter of column | (mm) | 50 | 60 | 60 | 80 | 80 | 80 | 120 | 120 | ||||
| Spindle travel | (mm) | 103 | 127 | 152.4 | 168.5 | 193 | 215 | 259 | 259 | ||||
| Distance spindle axis to column generating line | (mm) | 220 | 290/300 | 395/405 | 435/770 | 440/750 | 725 | 630 | 630 | ||||
| Max. Distance spindle nose to worktable | (mm) | 300 | 410/420 | 520/530 | 680/1250 | 700/1230 | 1215 | 1110 | 1110 | ||||
| Max. Distance spindle nose to base | (mm) | JT33 or B16 | JT33/MT2 | JT33/MT2 | MT2 | MT2 | MT3 | MT3 | MT3 | ||||
| Spindle taper | 515-2580 | 515-2580 | 515-2580 or 180-2740 | 180-2740 | 180-2740 | 160-3000 | 120-3480 | 120-3480 | |||||
| Spindle speeds range | (mm) | 5 | 5 | 5 or 12 | 12 | 12 | 16 | 12 | 12 | ||||
| Dimension of worktable surface | (mm) | 165 x 162 | 200 x 200 | 220 x 220 | 254 x 254 or Φ300 | 305 x 305 or Φ300 | 355 x 355 | 425 x 475 | 425 x 475 | ||||
| Dimension of base | (mm) | 290 x 187 | 345 x 210 | 400 x 187 | 460 x 270 | 460 x 270 | 498 x 285 | 580 x 450 | 580 x 450 | ||||
| Overall height | (mm) | 580 | 720 | 820 | 1020/1600 | 1020/1600 | 1635 | 1640 | 1640 | ||||
| Motor | (W) | 125(1/6HP) or 180(1/4HP) | 180(1/4HP) or 250 (1/3HP) | 180 (1/4HP) or 250 (1/3HP) | 370 (1/2HP) | 370(1/2HP) | 550(3/4HP) or 750 (1HP) | 750 (1HP) or 1100 (1.5HP) | 750 (1HP) or 1100 (1.5HP) | ||||
| G.W./N.W. | (Kg) | 21/19 | 33/30 | 34/19 | Bench: 57/52 Floor: 62/57 | Bench: 60/55 Floor: 65/560 | 90/85 | 150/144 | 150/144 | ||||
| Packing dimension | (cm) | 46 x 33 x 23 | 57.5 x 38.5 x 25 | 68 x 46.5 x 28 | B: 89 x 49 x 29 F:141 x 51x 24 | B: 89 x 49 x 29 F:141 x 51x 24 | 142 x 54 x 28.5 | 144.5 x 65 x 32 | 144.5 x 65 x 32 | ||||
| Units per 1 x 20' container | 820 | 540 | 330 | 220/160 | 220/160 | 128 | 93 | 93 | |||||
Company Profile
SJR Machinery Co., Ltd. , was founded in 1984, which is the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. Our company specializes in the manufacture and import/export of brand new industrial machinery and tools. We are capable of producing more than 80 types of machines.Sincerely welcoming you to contact us for more information, we look forward to becoming your supplier in the near future.
