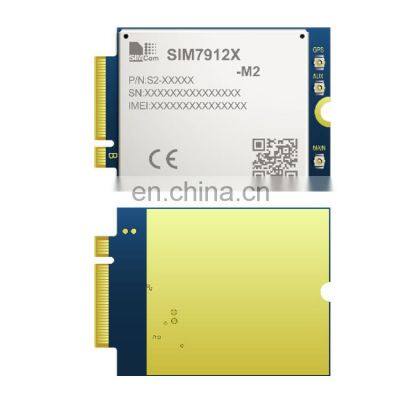

SIM7912G-M2 LTE HSPA+ Module Supports LTE CAT12 up to 600Mbps, SIMCOM SIM7912G SIM7912 LTE-A Module

Product Description

Product Description
DescriptionSIM7912G-M2• SIM7912G-M2 is the LTE Cat 12 module which supports wireless communication modes of LTETDD/LTE-FDD/HSPA+. • It supports maximum 600Mbps downlink rate and 75Mbps uplink rate.• SIM7912G-M2 adopts M.2 form factor. It is easy for customers to integrate.• SIM7912G-M2 integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600/SIM7906 series modules.• Meanwhile SIM7912G-M2 integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.Product Advantages• M.2 interface with strong compatibility• Suitable for LTE, HSPA+ networks with global coverage• Abundant software functions: FOTA, SSL, TLS• Multi-constellation GNSS receiver support• AT commands of SIM7912G-M2 are compatible with the SIM7500/SIM7600/SIM7906 series modulesGeneral FeaturesInterfaces• Supply voltage range: 3.135V~ 4.4V; Typ: 3.7V• Control Via AT Commands• Operation temperature: -30℃ to +70℃• Dimensions: 42.0*30.0*2.3mm• Weight: 6.1g• LTE-TDD/LTE-FDD/WCDMA• Support DL 3XCA• GNSS (GPS;GLONASS and BeiDou)• USB3.0 x1 (high-speed)• USB2.0 x1 (high-speed)• UART x1 (4-wire UART )• SIM card x1 (1.8V and 3V)• PCIE x1• PCM x1• I2C x1• GPIO x1• Antenna x3DataCertification• Uplink up to 50Mbps• Downlink up to 600Mbps• RoHSREACHJATETelecRCMOther Features• USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8/Win10• USB Driver for Linux /Android• RIL supporting for Android 2.3/4.0/5.0/6.0/7.0*• MBIM to Win8• Firmware update via USB• FOTA*• TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS /HTTP/HTTPS/DNS• SSL3.0/TLS1.0/TLS1.2* (* under development)FrequencyLTE-FDDB1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66LTE-TDDB38/B39/B40/B41DL2XCAB1+3/5/18/19/20/26;B2+2/4/5/12/13/17/29/30/66;B3+3/5/7/8/19/20/28;B4+4/5/12/13/17/29/30;B5+7/30/66;B7+7/20/28;B12+30;B13+66;B20+B32;B29+30;B38+38;B39+39; B39+41;B40+40;B41+41;B66+66/12/29/30/5;(Note: B29; B32 is only for secondary component carrier)DL3XCADL inter-band 3CA:B1+3+5/8/19/20/28;B1+7+20;B2+4+5;B2+4+13; B2+5+30;B2+12+30;B2+29+30 ;B3+7+20; B3+7+28 ; B3+7+8;B4+5+30; B4+12+30; B4+29+30 ; B5+66+2; B13+66+2;B66+12+30;B66+29+30;B66+5+30;DL 2 intra-band plus inter-band 3CA:B2+2+5; B2+2+13 ;B3+3+7; B3+7+7; B3+3+20 ;B3+3+28;B3+3+1;B4+4+5; B4+4+13; B7+7+28;B5+66+66; B13+66+66; B66+66+2;B39+B39+B41;B39+B41+B41;DL 3 intra-band 3CA:B40+40+40; B41+41+41; B66+66+66WCDMAB1/B2/B3/B4/B5/B8/B9/B19Why Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
