High-Efficiency Foam Sheet Extrusion Machine for PS Material Production Line

Product Description

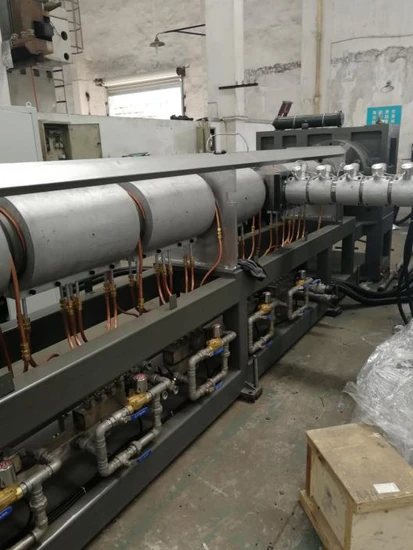

PS Foam Sheet Extruder Machine
The PS foam sheet extruder stands as the cornerstone of creating exceptional final products. It is the essential first step in kick-starting the entire production process, setting the stage for seamless operations.
We are seasoned experts in the PS foam sheet industry in China, with a wealth of experience in fulfilling diverse customer requirements. Our primary market focus is
the vibrant South America region. We warmly welcome you to discuss your unique needs with us and extend an invitation to tour our state-of-the-art factory.
Machine Features: - Precisely engineered screw for enhanced performance
- Outfitted with highly accurate extrusion elements for superior precision
- Innovatively designed rear section of the secondary extruder, meticulously crafted to ensure no leakage
- State-of-the-art, computer-controlled cooling water system for the secondary extruder, ensuring optimal cooling efficiency - Unique die and air ring design for consistent thickness and superior sheet quality - Capability to store comprehensive technical parameters for enhanced process control
Model Parameters Unit HLSJPS-130/170
Capacity kg/hr 450-550
Thickness mm 1.5-6
Sheet Width mm Double sheet 1000-1500
Foam Rate times 11-30
Density kg/m
332.5-90
L/D Ratio 37/1, 38/1 for optimized performance
Cooling Mechanism: Air cooling for primary extruder and water cooling for secondary extruder
Linear Speed m/min 5-40 for versatile production capabilities
Central Height mm 1100
Cooling Water Pressure Mpa ≥0.3 for effective system operation
Cooling Water Volume t/h 20 ensuring efficient cooling processes
Compressed Air Pressure Mpa 0.7-0.9 for reliable performance
Compressed Air Volume m
3/min 2
Butane Gas Pressure Mpa 1 for consistent processing
Installed Power kw 625 providing ample energy for robust operations
Installed Size m 40x4.5x3 offering a compact yet powerful production setup
Weight t 32 for stable and durable machine performance
